位于泰国曼谷大都会20多年的测地线设计有限公司。一直在寻找一个家的地方，那里的建筑设计工作室与绿色的草坪，阳光和可能的光线共存，树荫。我们发现了这个位于曼谷中心以北18公里处的地方，在普克雷德，农他布里。

Located more than 20 years in Bangkok metropolis, Thailand, Geodesic Design Co.,Ltd. had been looking for a place to be home, where architectural design studio co-exist with green lawn, ray of sunshine and may be, shade of a tree. We found the place 18 kilometers toward north of the heart of Bangkok, in Pakkred, Nonthaburi.

 © Pirak Anurakyawachon

(Pirak Anurakyawachon)

一片16米x24米的地块是面向南北，东侧是一片令人不快的空地，西面是一座有10年历史的房子，有茂密的小花园，在街道边，一棵老雨树枝覆盖着整个地皮的宽度。新的建筑坐落在地块的东侧，在树的后面，在西侧创造了一个开阔的空间。树和开放空间成为我们建筑的第一和第二元素。

A 16 metre x 24 metre plot of land is oriented North-South, on the east side is an unpleasant vacant lot, on the west is a 10 years old house with lush small garden, on the street side, an old rain tree branches over the full width of the plot. The new building was set on the plot's east side, behind the tree, created an open space on the west side. The tree and the open space become the first and second element of our architecture.

 © Pirak Anurakyawachon

(Pirak Anurakyawachon)

这座建筑很小，房间的大小取决于4米的跨度和标准的6米长的钢制部件，大部分内墙都是透明的玻璃，可以让房间感觉更大，东侧墙是坚固的，可以挡住相邻空旷地段的视野，延伸到室外空间，西侧高6米，长16米。面对下午的阳光。

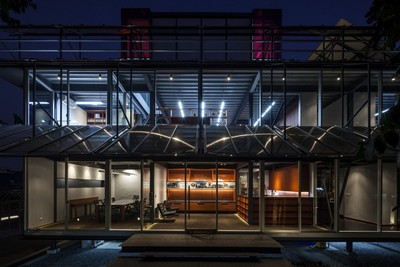

The building is small, room’s size is dictated by a 4 meters span and a standard 6 meters long steel parts, most of interior walls are clear glass to make rooms feel larger, east side wall is solid to block the view of adjoining vacant lot, to reach out to outdoor space, large opennings filled west-side elevation which is 6 metre high by 16 metre long, facing afternoon sun.

这给建筑的设计带来了第三个要素，即遮阳系统，以保护建筑物免受酷热和极端光线的影响，同时又能让人望而却步。

Which brought the third element to the design, system of sunshades to protect the building from heat and extreme light, while open to the view.

 © Pirak Anurakyawachon

(Pirak Anurakyawachon)

10年前的设计经验被作为设计的第四要素。一楼高1.2米。为了创造爬行空间，作为储存和维护，空气流动将分散热量，阴凉的地面将越来越冷的时间。传统的泰国房子已经提高了地板，以避免淹没。设计要记住这一点，以防泰国再次面临严重的洪水，比如2011年的季风季节。

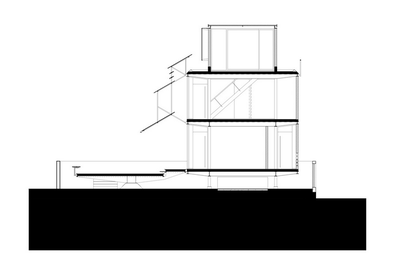

Lesson from designing a house 10 years ago was applied as the forth element of the design. The ground floor was raised 1.2 m. to create crawl space that would be use as storage and for maintenence, air flow would disperse heat, shaded ground would be increasingly cooler by times. Traditional Thai house has raised floor to avoid inundation. The design keep this is mind in case of Thailand facing severe flood likes the 2011 monsoon season again.

 © Pirak Anurakyawachon

(Pirak Anurakyawachon)

其他设计选择遵循这些主要元素，钢骨和钢桥面地板保持施工现场清洁，缩短树木受到干扰的时间。实心墙由轻质砖和泡沫芯混凝土覆盖金属丝网板制成。暴露的金属地板变成了开放式天花板。所有的窗户都是低发射率玻璃。为了试验太阳能，太阳能电池板直接将电能输送到我们的使用中。(每日节省1美元/10年报表)。

Others design choices followed these main element, steel skeleton and steel-deck flooring kept the construction site clean and shorten the time the tree was disturbed. Solid walls were made of lightweight bricks and concrete covered wire mesh panel with foam core. Exposed metal floor planks became open ceiling. All windows were low-emissivity glass. To experiment with solar energy, solar panel feed electricity directly into our usage. ( 1 U.S.$ saving daily /10 years return ).

几个小时没有被困在大城市的交通每天，时间花在我们的露台上，在树下，喝一些啤酒。

Few hours were gain from not getting stuck in big city traffic everyday, that times were spent sitting on our terrace, under the tree, sipping some beers.
