架构师提供的文本描述。位于格鲁吉亚湾纪念碑海峡的这座小屋的设计和建造于2013年完成。

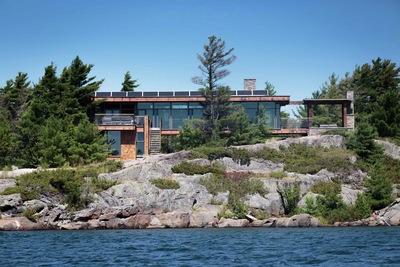

Text description provided by the architects. The design and construction of this cottage located in Monument Channel Georgian Bay was completed in 2013.

 Courtesy of CORE Architects

核心建筑师的礼遇

这间小屋面积为2125平方米。英国“金融时报”，是为全年使用而设计的。主要建筑材料为道格拉斯杉木，用作外露结构框架、天花板装饰、内墙饰面、室内橱柜和厨房岛等。

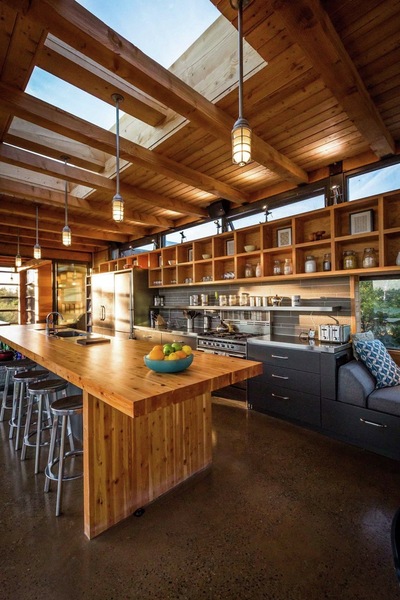

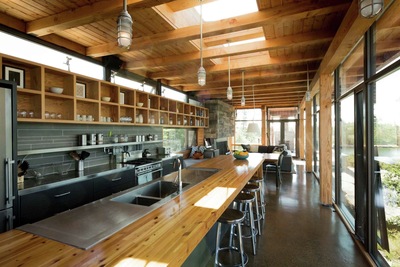

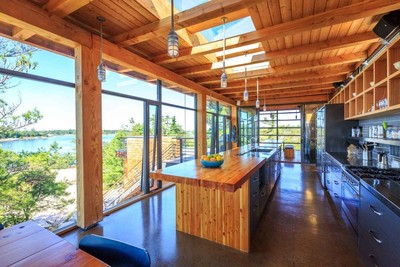

The cottage is 2,125 sq. ft., and is designed for year-round use. The primary building material is Douglas Fir, which was used as the exposed structural frame, ceiling decking, interior wall finishes, interior cabinetry and kitchen island, etc.

 Courtesy of CORE Architects

核心建筑师的礼遇

该设计庆祝了柱和梁结构框架的简单使用，其中柱、梁和柱体的节奏为方案提供了一个整体的组织逻辑。木材要么是实木锯成的，要么是磨成型材的，木材有时是巨大的，有时只是有效的尺寸，所有的木材都是预制的，钻孔连接等等。在工厂里。木材是未经处理和自然的内部和结束与一个明确的，透油封在外部。外部覆层要么是结构木材，要么是雪松瓦；Ipe也用作外墙铺装材料和护栏顶栏杆/扶手。鉴于该地点的偏远位置，所有材料都必须驳船进入。房子自己用太阳能电池板发电，用生物过滤化粪池处理自己的废水。

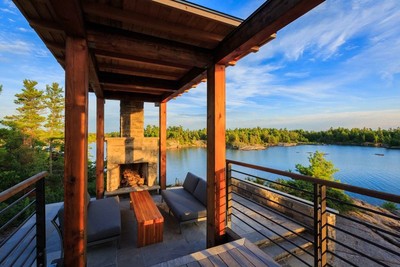

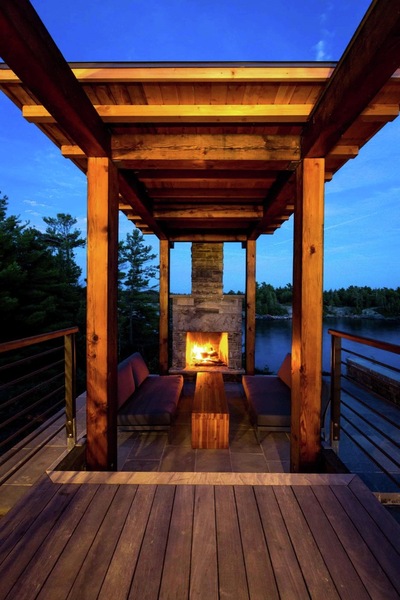

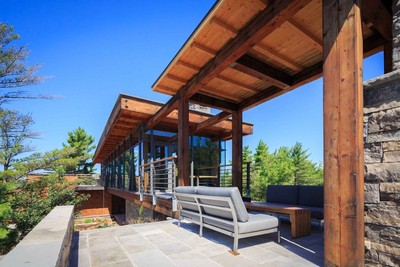

The design celebrates the simple use of a post and beam structural frame, where the rhythm of the columns, beams and purlins gives an overall organizational logic to the scheme. The wood is either solid sawn or milled to a profile, the timbers are sometimes massive and other times just efficient in their size, all the timbers were prefabricated, drilled for connections, etc. in the factory. The wood is left untreated and natural on the interior and finished with a clear, penetrating oil sealer on the exterior. The exterior cladding is either structural wood or cedar shingles; Ipe is also used as the exterior decking material and for the guardrail top rail/handrail. All materials had to be barged in given the remote location of the site. The house produces all its own electricity from solar panels and treats its own wastewater with a bio-filter septic system.

 Courtesy of CORE Architects

核心建筑师的礼遇

 Floor Plan

 Courtesy of CORE Architects

核心建筑师的礼遇

Architects CORE Architects

Location Georgian Bay, Canada

Category Houses

Area 2125.0 ft2

Project Year 2013
