架构师提供的文本描述。莱夫艺术工作室是为一对夫妇在他们现有住所的同一财产上建造的。工作室坐落在物业边缘的一条树线上。这座建筑由两个相交的空间组成，一个是半透明聚碳酸酯幕墙的钢框架，另一个是带有雪松壁板和穿孔窗的木框架。第一卷是他的拼贴工作室，第二卷是她的陶瓷工作室。

Text description provided by the architects. The Leff Art Studio was built for a couple on the same property of their existing residence. The studio is nestled into a tree line at the edge of the property. The building is made up of two intersecting volumes; one is a steel frame with a translucent poly carbonate curtain wall and one is a wood frame with cedar siding and punched windows. The first volume houses a collage studio for Him and the second houses a ceramic studio for Her.

 © Matthew Williams

(马修·威廉姆斯)

这是一个发展中的住宅用地，要求附属结构位于一簇成熟的树木内。为了不破坏任何现存的树木，建筑物的形状在树木之间弯曲。此外，基金会的设计是为了减少对现有根系的干扰。楼板的设计是在14个混凝土桥墩上的钢框架上进行的。该钢架的设计，使当码头是手挖时，如果遇到一个大的根，码头可以搬迁到3英尺以外的设计位置，并留下完整的根。所有公共设施的挖沟也都是手工挖出来的，大的根被留在原地，所需的管道都被螺纹埋在下面。附近所有的树木都幸免于难。

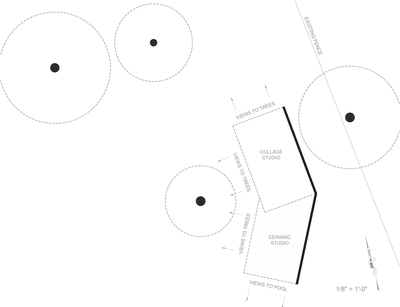

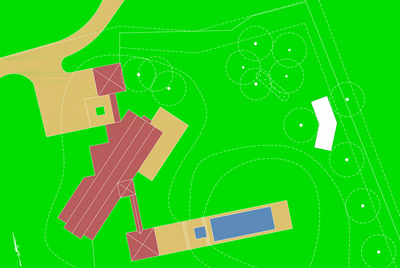

The site, a developed residential lot, called for the accessory structure to be located within a cluster of mature trees. In pursuit of not damaging any existing trees, the building shape was bent to fit between the trees. Furthermore, the foundation was designed to reduce disturbance to existing root systems. The slab floor was designed to be elevated on a steel frame which rests on 14 concrete piers. The steel frame was designed such that when the piers were hand dug, should a large root be encountered, the pier could be relocated up to 3 feet away from their designed location and the root left intact. All trenching for utilities was also hand dug, large roots were left in place and any required conduits were threaded underneath. All nearby trees have survived.

这两个相交的体积分别由不同的皮肤组成，反映了两种不同的工作环境。聚碳酸酯系统创造了一个私人的、内向的空间，充满了漫射的自然光，同时将周围环境的颜色和阴影投射到内墙上。更典型的木框卷引入了一系列的穿刺，框架的庭院和房子的看法，创造了一个更直接的视觉联系与周围的环境。

The two intersecting volumes are each composed of distinctive skins which reflect the two different working environments. The poly carbonate system creates a private and introverted space filled with diffused natural light while projecting and obscuring colors and shadows from the surrounding environment onto the interior walls. The more typical wood framed volume introduces a series of punctures, framing views of the yard and the house, creating a more direct visual connection with the surroundings.

 © Matthew Williams

(马修·威廉姆斯)

从主楼，工作室可以从娱乐区看到，在晚上，半透明的音量提供了一个选择，要么发光，要么提供一个由旋转迪斯科球和颜色变化的点灯指示的灯光表演。

From the main house, the studio can be seen from the entertaining areas and at night the translucent volume offers an option of either glowing or of providing a light show directed by a spinning disco ball and a color changing spot light.

 © Matthew Williams

(马修·威廉姆斯)

Architects TBD Architecture & Design Studio

Location Water Mill, NY, United States

Category Offices

Area 613.0 ft2

Project Year 2009

Photographs Matthew Williams

Manufacturers Loading...
