Touguinha House Raulino Silva

2018-02-25 05:00
架构师提供的文本描述。这座小地产位于葡萄牙北部的一个小村庄Touguinha的主要街道上,在地形上有一个突出的坡度。在现场,地势两侧都有房屋,后面有一堵古老的石墙,前面有一些麦田,中间有一片小树林。
Text description provided by the architects. The small property, with an accentuated slope on the topography, is located in the main street of Touguinha, a small village in the north of Portugal. On site, there are houses on both sides of the plot terrain, an old stone wall at the back and, at the front, there are some crop fields with a small grove in the middle.
 © João Morgado
·若昂·莫尔加多

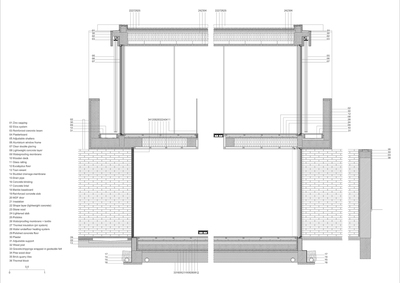

 Sections + Elevation
剖面高程
 © João Morgado
·若昂·莫尔加多
该房屋的植入符合周围房屋的街道阵容,并允许横向进入的财产北侧的人行道和车道。在后院,我们决定拆除现有的棚屋,并恢复旧的石墙,这是该地区的一个典型特征。

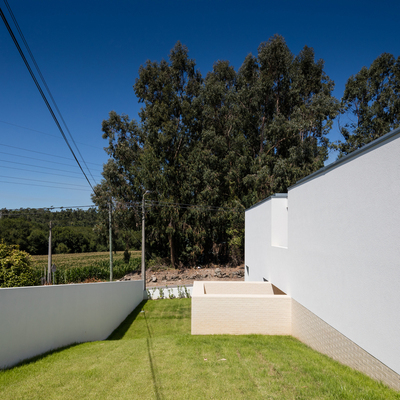

The implantation of the house meets the street lineup of the surrounding houses and allows the lateral access on the north side of the property for the footpath and the driveway. In the backyard, we decided to demolish the existing sheds and to recover the old stone wall, a typical feature of the region.
 © João Morgado
·若昂·莫尔加多
在占地约一半的底层,我们有车库、技术区、洗衣房和通往楼上楼梯的正门,由露台点亮。
In the lower floor, which occupies about half of the implantation, we have the garage, the technical area, the laundry room and the main entrance with the stairs to the upper floor, which is lit by the patio.
 1st Level Plan
一级计划
 2nd Level Plan
二级规划
楼上有一个中央过道,把房子的社交区和卧室区隔开,两边都有小阳台。
Upstairs, there is a central aisle that separates the social area of the house and the bedrooms area, accentuated with small balconies on each end.
 © João Morgado
·若昂·莫尔加多
面对街道,有三间卧室,共用阳台,其中一间是带私人浴室的套房。后面的区域,连接到后院,我们有厨房和客厅,空间延伸到室外通过甲板区域。
Facing the street there are three bedrooms with a shared balcony, one of which is a suite with a private bathroom. To the posterior zone, connected to the backyard, we have the kitchen and the living room, spaces which are extended to the outdoors through the deck area.
 © João Morgado
·若昂·莫尔加多



































Architects Raulino Silva
Location Vila do Conde, Portugal
Team Raulino Silva, Cátia Sampaio, Daniela Amorim, João Mendes
Area 300.0 m2
Project Year 2017
Photographs João Morgado
Category Houses
Manufacturers Loading...
