Sky Courts Höweler + Yoon Architecture

2012-10-25 01:00
架构师提供的文本描述。天空法院是一个20,000平方米的公司俱乐部的房子,包括短期住房,办公空间和娱乐设施,利用庭院和倾斜屋顶的逻辑。该项目将几个庭院打包成一个确定的周边,并利用倾斜的屋顶在庭院之间的楔形中容纳程序,允许项目从上面100%地读为庭院。复杂缺乏一个单一的中心;相反,它是一个具有多个中心、多路径、多边和多行的网络。通过这些区域的序列创建一系列的分层空间线外部空间,从一个庭院的视图可以看到周界空间和其他庭院。
Text description provided by the architects. Sky Courts is a 20,000 sqf corporate club house that incorporate short-term housing, office space, and entertainment facilities utilizing the logics of the courtyard and sloped roof. The project packs several courtyards into a defined perimeter and utilizes the sloped roof to accommodate program in the wedge between courtyards, allowing the project to read as 100% courtyard from above. The complex lacks a single center; instead it is a network with multiple centers, and multiple paths, edges and liners. The sequence through these precincts creates a series of layered spaces that line exterior spaces, and views from one courtyard might look through perimeter spaces and into other courtyards.

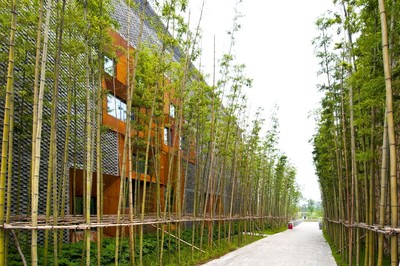

 Courtesy of Höweler + Yoon Architecture
承蒙H、WELL、WELLER、YON建筑
内部和外部的分层在复杂的过程中创造了一个不同的顺序。屋顶几何由一系列向内倾斜的屋顶组成。屋顶轮廓的变化,创造了山峰和山谷景观的印象。主要山脊线的交替倾斜产生不同的屋顶景观,并导致屋顶平面扭曲。通过保持一条恒定的屋檐线并改变周长,屋顶上的每一个平面都是一个双曲线直纹面。瓷砖的使用单位之间的间隙以及瓷砖的细粒,以吸收非平面屋顶条件。瓷砖,有能力吸收单位之间的容忍度,集合体,以产生扭转屋顶景观的配置。该项目利用一种特定的建筑材料来达到更大的几何效果。
The layering of interiors and exteriors creates a varied sequence through the complex. The roof geometry consists of a series of inward sloping roofs. The roof profile varies to create the impression of a landscape of peaks and valleys. The alternating inclinations of the major ridge lines produce a varied roofscape and cause the roof planes to twist. By maintaining a constant eave line and varying the perimeter, each plane on the roof is a hyperbolic ruled surface. The use of a ceramic tile uses the gap between units as well as the fine grain of the tile, to absorb the non planar roof condition. The ceramic tile, with a built in capacity to absorb tolerance between units aggregates to produce a twisting roofscape configuration. The project exploits a specific building material to achieve a larger geometrical effect.
 Courtesy of Höweler + Yoon Architecture
承蒙H、WELL、WELLER、YON建筑
