架构师提供的文本描述。该项目位于BUIL海军上将所在地，这是一套由巴黎OPAC在1960年代建造的450套社会住房。

Text description provided by the architects. The project is located on the site of Admiral Blow, a set of 450 social housing built by the OPAC of Paris in the 1960s.

 © Simon Deprez

C.Simon Deprez

这是巴黎人居中心和巴黎市发起的场地业务重建工作的一部分：在Zac Rungis和Parc Montsouris之间建立一条步行连接，沿着内环线，建造60所住宅、一所疗养院和学生住房。

It is part of the redevelopment of the site operations launched by Paris Habitat and the City of Paris: creation of a pedestrian link between the ZAC Rungis and Parc Montsouris, along the inner ring road, construction of 60 homes , a nursing home and student housing.

 © Simon Deprez

C.Simon Deprez

2007年1月，巴黎人居中心为实施这些方案发起了两次磋商。代理机构Philippe Dubus被宣布为住房项目的获胜者。这个节目包括60个单元BBC，一个社区图书馆和展览空间。

In January 2007, two consultations were launched by Paris Habitat for carrying out these programs. The agency Philippe Dubus is declared winner for the housing program. This program includes 60 units BBC, a neighborhood library and exhibition space.

 © Simon Deprez

C.Simon Deprez

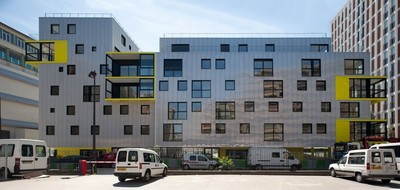

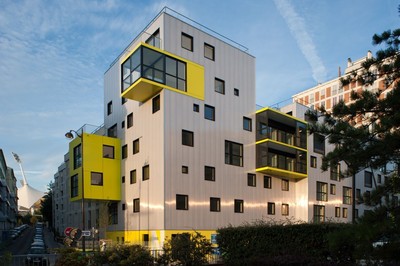

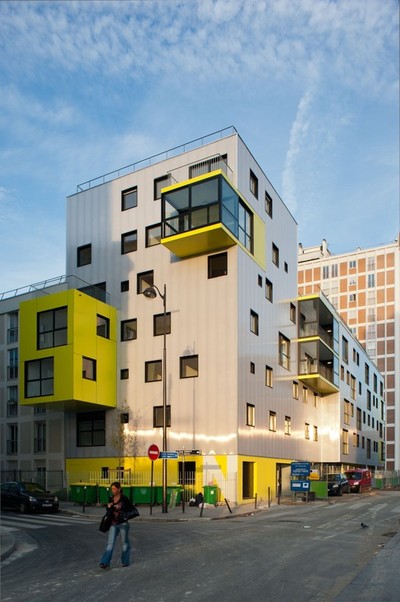

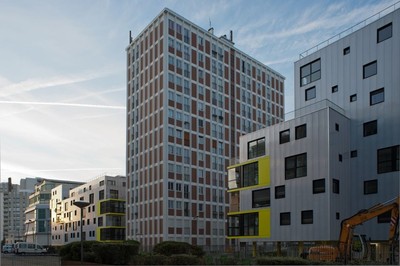

这些单元分为楼层，M和N两栋建筑在现有的空间中进行，并将其小齿轮(12层和4层)固定在沿内环的长街溜冰鞋上形成一个前部。建筑物M是在现有停车场的基础上，对整个场地包括匝道通道，N楼取代已拆除的旧集体锅炉，整个场地的房屋，无论是现有的还是新的，都与城市的地区供暖相连。

The units are divided into floor, two buildings M and N. They take place in the spaces between the existing and pegged their pinions (12 and 4 levels) to form a front built on Long street skates along the inner ring. Building M is based on the existing parking for the entire site which includes ramp access, building N takes the place of the old collective boiler which has been removed, the housing of the entire site, existing and new, are connected to district heating in the city.

 © Michel Denancé

c.Michel Denancé

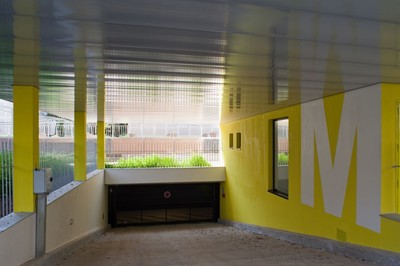

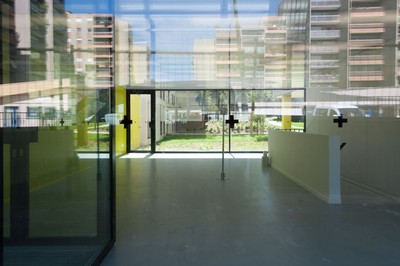

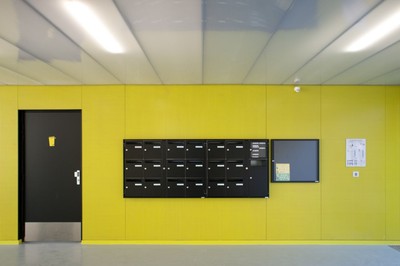

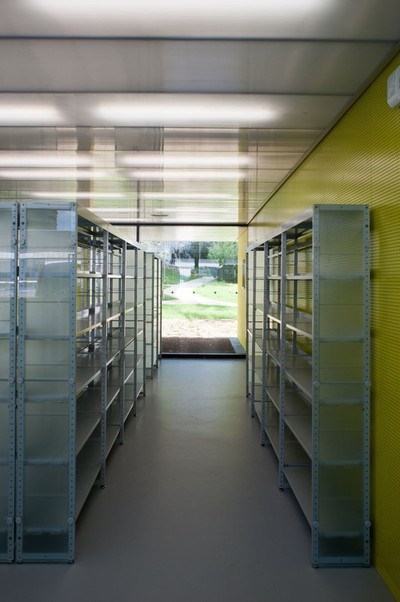

地面人行道被释放，从北部的人行岛中心可以看到绿色的空间。地块和彩色玻璃大厅、公共区域和当地图书馆在底层的建筑物下滑行。

The ground pavements are released, leaving perceive green spaces from the heart of pedestrian island in the north. Blocks and stained glass halls, common areas and the local library slip under the buildings on the ground floor.

 © Simon Deprez

C.Simon Deprez

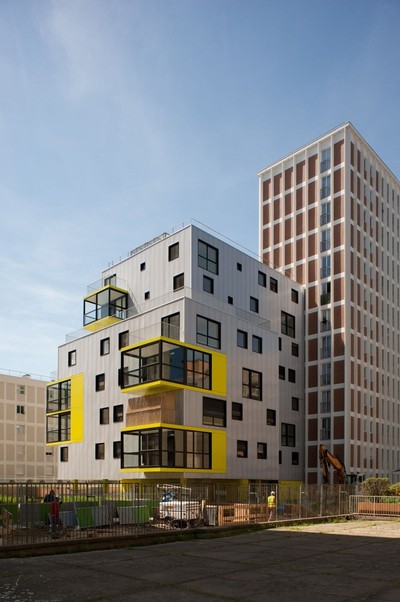

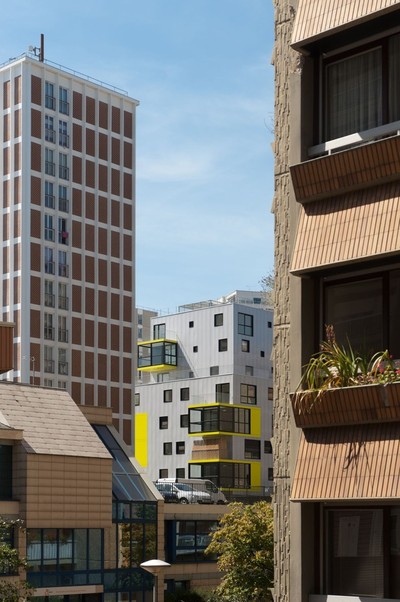

该项目的独特结构取决于所期望的约束和城市热性能。夹克衫的建筑风格是基于现有立面的建设性逻辑，以及垂直框架不变和连续的框架，这些框架适合于赋予新建筑以生命力，而不是它们之间的现有建筑的严格“静态”。

The unique architecture of the project is dictated by the constraints and urban thermal performance expected. The architectural style of the jacket is based on the constructive logic of the existing façades and a vertical frame unchanging and continuous frames which fit to give life to new buildings as opposed to rigor "static" of existing buildings between which they operate.

 © Simon Deprez

C.Simon Deprez

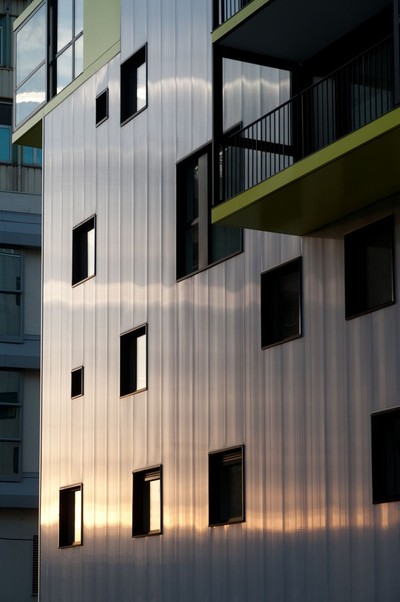

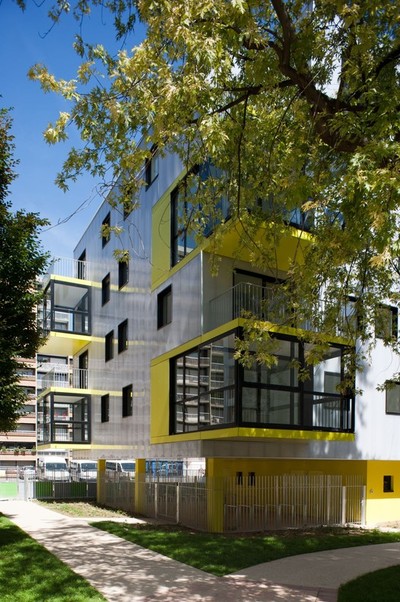

建筑物是紧凑的，修整为模板PLU，他们被包装在一个通风的皮肤由一个加强的外部绝缘和半透明聚碳酸酯在一个垂直框架60厘米的覆层面板组成。混合木铝框架的大小取决于它们在60厘米的螺距(厨房/浴室60x60厘米，120x120厘米卧室，客厅240x240厘米)。它们在需要时标出聚碳酸酯外壳，根据框架壁板增加开口的随机性。

Buildings are compact, trimmed as templates PLU, they are packaged in a ventilated skin consisting of a reinforced outer insulation and cladding panels of translucent polycarbonate on a vertical frame 60 cm. Mixed wood- aluminum frames are sized depending on the nature of the piece they light on a pitch of 60 cm (kitchen / bathroom 60x60 cm, 120x120 cm bedrooms, living room 240x240 cm). They punctuate the polycarbonate shell as needed, increasing the randomness of openings in accordance with the frame siding.

 © Michel Denancé

c.Michel Denancé

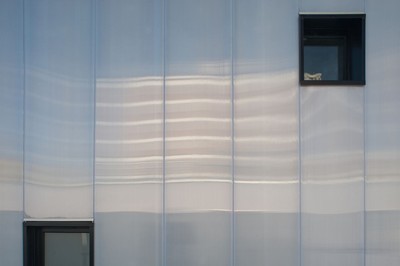

反射和半透明的信封纹理给出了生动的阅读和模棱两可的体积，皮肤对光线和上下文的反应降低了交易的密度。

Reflective and translucent texture of the envelope gives a lively reading and ambiguous volumes, skin reactive to light and context reduces the density of the transaction.

 © Michel Denancé

c.Michel Denancé

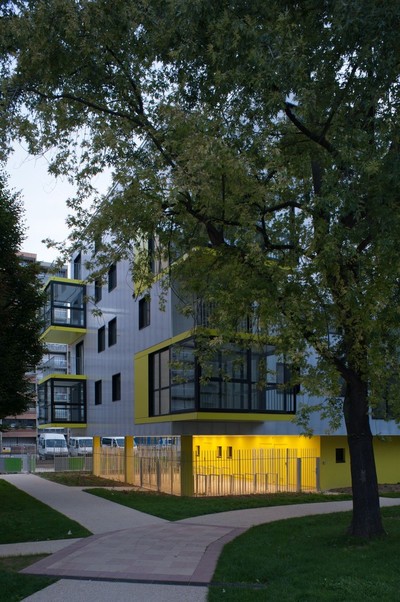

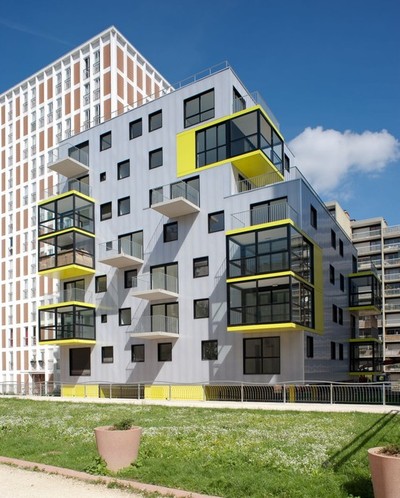

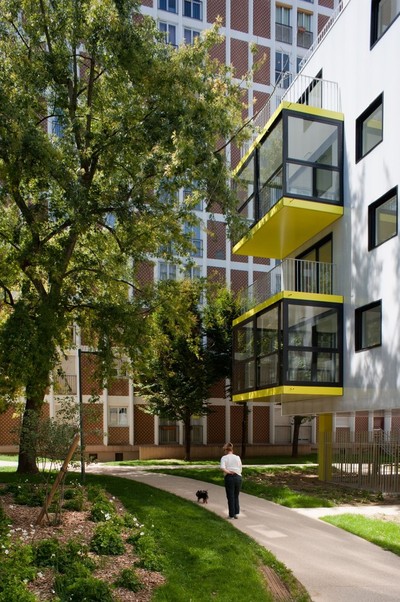

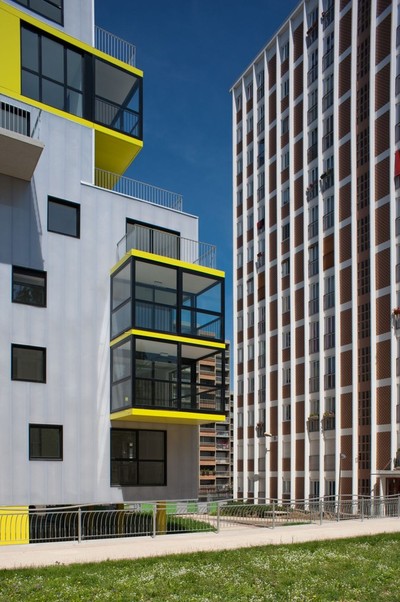

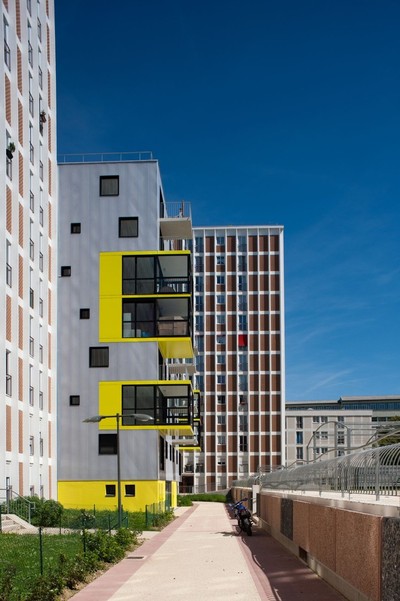

T_3和T_4的起居室由“弓形窗”阳台延伸至景观之上，使太阳可以从北面获取阳光，并使城市和花园的景色更加丰富。这些缓冲区提供了额外的居住空间和由大滑动玻璃组成的多功能双层皮肤，确保了它们的热调节：冬天，体积关闭，它储存太阳能，让太阳进入房屋的中心。夏天，滑块处于开阔的位置，在顶板的阴凉处提供一个通风的室外区域。

The living rooms of T3 and T4 are extended by "bow-windows" balcony over the landscape, they allow the sun to be fetch from the northern facades and multiply views of the city and the gardens. These buffer zones provide additional living space and versatile double skin composed of large sliding glass that ensure their thermal regulation: winter, the volume is closed, it stores the solar energy and lets the sun get in the heart of houses. The summer, slidings are in the open position, offering a ventilated outdoor area in the shade of the slab at the top.

 © Simon Deprez

C.Simon Deprez

性能封套的开发保证了人们能够使用“低消费大楼”的标签，而不需要增加太阳能电池板和其他技术解决方案，从而限制了租户的负担。

The development of a performance envelope has guaranteed access to the label "Low Consumption Building" without resorting to the addition of solar panels and other technology solution, thus limiting the burden on tenants.

 Courtesy of Philippe Dubus Architectes

菲利普·杜布斯建筑公司提供
