In Progress FC Bate Borisov Football Stadium OFIS
2013-04-04 01:00
架构师提供的文本描述。当博里索夫市在2012年庆祝一个重要的周年纪念日时,这座体育场将开幕。该方案考虑到自然优势的位置和现有的干预在地形上,保持尽可能多的现有树木在现场。由于体育场有13.000个座位,因此需要额外的3.000平方米的公共空间,根据欧足联的分类,它将获得4颗星。体育场将需要交通组织的外部要素,以及火柴和日常使用的受控/单独出入。最后,建筑群将有一个可识别的形象,这个占主导地位的城市,放置在柔软的周围绿色植物。

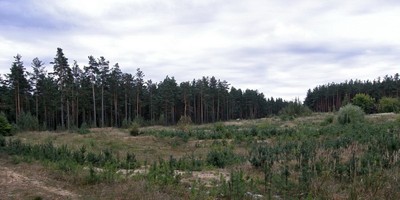

Text description provided by the architects. The stadium is set to open as the city of Borisov celebrates a significant anniversary in 2012. The program takes into account the natural advantages of the location and the existing interventions in the terrain, maintaining as many of the existing trees on site as possible. Because the stadium has 13.000 seats, it will need an additional 3.000 m2 of public space and obtain 4 stars according to UEFA categorization. The stadium will require external elements for traffic organization and controlled/separate access for matches and daily use. Finally, the complex is to have a recognizable image of this dominant city, placed in the soft surrounding greenery.
竞技场形成一个统一的圆形圆顶,给人的印象是一个封闭的物体。穹顶的皮肤给人一种脆弱、拉伸、穿孔的纺织品的印象,它被拉在体育场的骨架上。皮肤和围裙之间的覆盖空间是一条公共街道-一个有公共设施的前厅(商店、酒吧、服务、厕所)和上面的画廊(办公室、贵宾、出版社)。

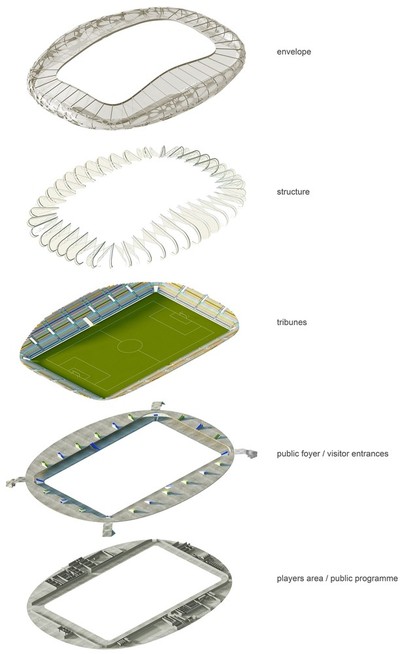

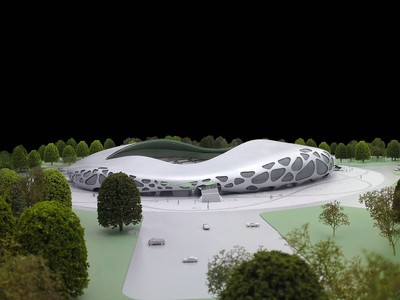

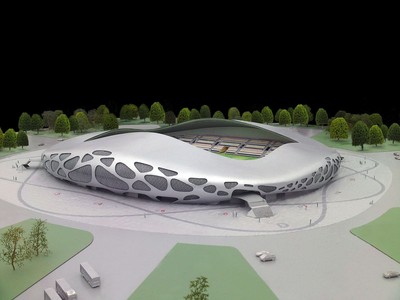

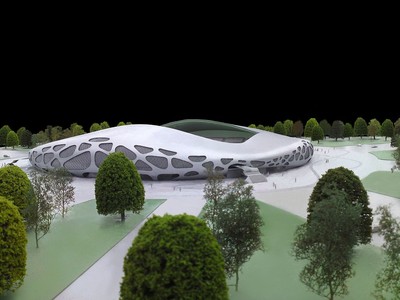

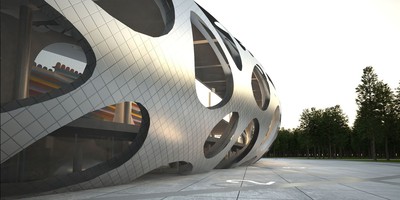

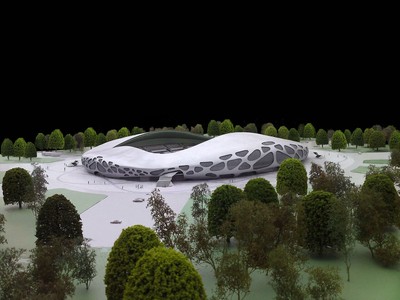

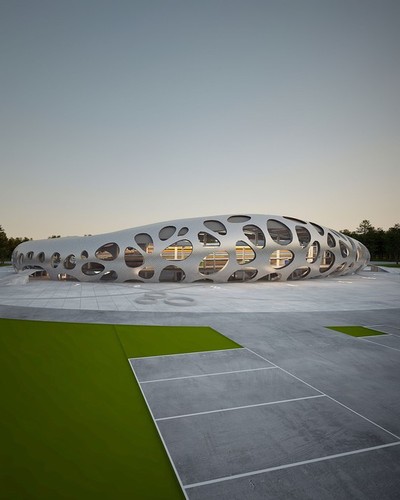

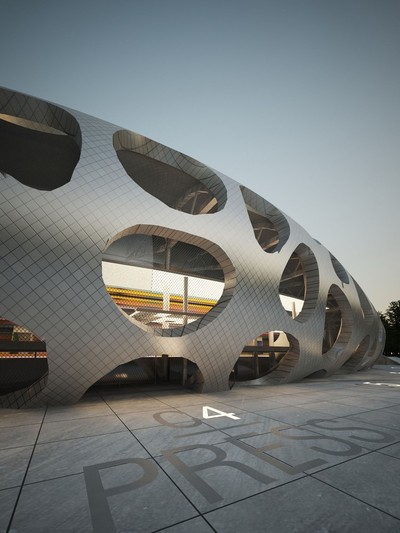

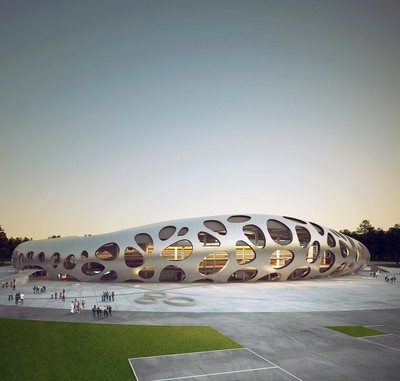

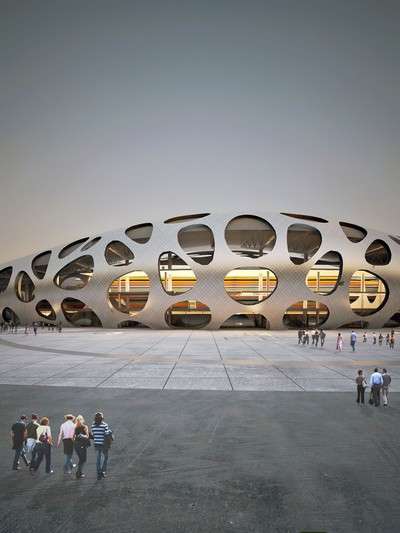

The arena forms a unified rounded dome, giving the impression of a single enclosed object. The Skin of the dome gives an impression of a fragile stretched perforated textile pulled over the stadium skeleton. The covered space between the skin and the tribunes is a public street-a vestibule with public program (shops, bars, services, toilets) and galleries above (offices, VIP, press)
Courtesy of OFIS
由Ofis提供
在内部,圆形竞技场提供良好的音响,鼓励球员和球迷在比赛中的外向气氛,但集中在训练时间。游戏表面呈N-S方向,总面积85×105 m,游戏使用68×105 m。剩余的区域为安装广告屏幕、摄影师和照相机提供了足够的空间。座位在运动场周围排成17排沿两边排列,27-28行沿短边排列。上西方画廊为记者包厢保留了座位和桌子,可容纳40名记者,并可直接进入记者室和混合区。在东方是贵宾看台,有250个座位,酒吧和娱乐空间。VIP可通过电梯直接从入口区域通过汽车车道进入。运动员在较低的站台上有一个单独的通道,有通往车队公共汽车和停车的通道。进入场地的每个入口都有两个更衣室、混合区、理疗和一个兴奋剂管制空间。

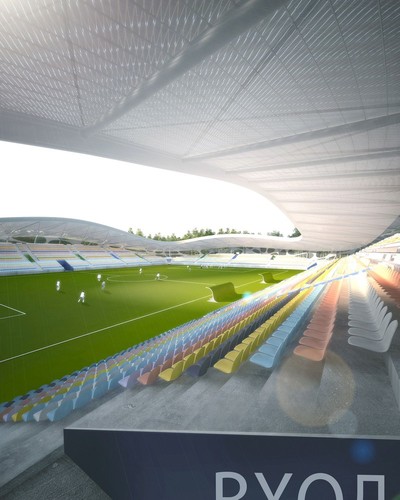

Internally, the rounded arena provides good acoustics and encourages an extrovert atmosphere from the players and the fans alike during the game, but focuses concentration during training time. The playing surface has N-S orientation, with a total area of 85x105 m, on which 68x105m is used for playing. The remaining area allows enough space for the installation of advertising screens, photographers and cameras. The seats are arranged around the playing field in rows of 17 along the sides and rows of 27-28 along the short sides. The upper west gallery is reserved for press cabins, with seats and tables for 40 journalists and direct stair access to the press room and mix zone. In the east are the VIP stands, with 250 seats and bar and entertainment spaces. The VIP is accessed directly via an elevator from the entrance area with a car driveway. The athletes have a separate access on the lower platform, with passage to team buses and parking. At each entry point to the field are two dressing rooms, mix zone, physiotherapy and a space for doping control.
Courtesy of OFIS
由Ofis提供
西站区有4层楼,有额外的项目和服务设施,东侧有3层。大堂位于一楼,设有四个楼梯接入点。这是一个覆盖高原,自然通风和不加热。在体育馆内的竞技场周围,这个空间里有游客的厕所、酒吧、急救室和拘留室:这是一个中场休息的地方。3.000平方米的公共项目分布在建筑的北部、南部和东端的地面上。在东部,有一家餐厅和保龄球区。该餐厅在比赛期间为贵宾准备饭菜,并在其公共休息室内配备一部服务电梯,以满足贵宾休息室和酒吧的需要。在南方,有公共健身/健身房工作室。其他公共区域空间是为各种商业活动而设计的。所有餐馆都可以从公共平台进入。站台周围是一个圆形的人行广场,作为环形交叉路口和会合区。停车场被整理成现有的森林区域。
There are 4 floors with extra program and service facilities under the west stand area and 3 floors under the east side. The foyer for visitors is located on the first floor level and has 4 stairway access points. It is a covered plateau, naturally ventilated and unheated. Extending all around the inner stadium arena, this space contains the visitor's toilets, bars, first-aid room and detention: it is a place to break during half-time. 3.000 m2 of public program is distributed at ground level on the north, south and east ends of the structure. In the east, a restaurant and bowling area are located. The restaurant prepares meals for the VIP during the match, with a service elevator for catering to the VIP lounge and bar within its public foyer. In the south, there are public fitness/gym studios. Other public area spaces are designed for various commercial activities. All restaurants have access from the public platform. Around the platform is a rounded pedestrian square, as a peripheral roundabout and meeting area. Parking pockets are organized into the existing forest area.
