Estação Antártica Comandante Ferraz International Competition 2nd Place Triptyque
2013-04-23 01:00
面对科学、技术、环境、人类、象征性和地缘政治挑战,应制定一项能够满足所有需要和目标的简单而有效的战略。它需要一个集成了安全性、灵活性和模块化的原则,能够提供舒适、热或声音,但最重要的是,为用户提供生活质量。
Facing a scientific, technical, environmental, human, symbolic and geo-political challenge, a simple and efficient strategy that could respond to all needs and goals should be developed. It needed a principle that integrates security, flexibility and modularity and that could provide comfort, thermal or acoustic, but, above all, quality of life for users.
休息后的更多信息。
More information after the break.
Courtesy of Triptyque Arquitetura
阿基德图拉
基地的规划是以危险单元远离心脏的位移为基础的。这种辐射核心意味着生命的中心点被异质单元包围,复杂的物流对环境有很强的影响,这是由于使用了机动运输、电缆、通道和棚屋。
The plan of the bases is based on the displacement of dangerous units away from the heart. This radiant core implies a central point of life surrounded by units heterogeneous, a complicated logistics with strong environmental impact, due to the use of motorized transport, cables, pathways and sheds.
因此,新的EACF被投射到一条分销线上,一种允许使用的分段化、需求层次和空间压缩的主干,创造了自己的物流,从技术和人的角度解决了它的处置问题。此分支仅以一种方式将所有程序分组,它增加了基础的视觉影响,并减少了对环境的影响。
Therefore, the new EACF is projected onto a line of distribution, a backbone that allows the sectorization of uses, the hierarchy of needs and compression of spaces, creating its own logistics that, from a technical and human viewpoint, solves its disposal. This branch, grouping all programs in a way only, increases the visual impact of the base and reduces environmental impact.
Courtesy of Triptyque Arquitetura
阿基德图拉
在地面上,为了防止积雪的堆积,寻求最小的影响,使除霜水通过,防止积雪,以支持站在高跷上。它的高度允许使用一个由起重机组成的起升和位移的物流系统,简单而高效。基地的结构,以这种方式使用,使土地免受任何机械干扰,并决定如何保护行人或机器。

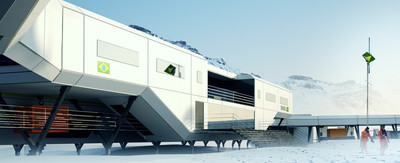

At ground level, seeking minimal impact to let the water from defrost pass and let the wind flow to prevent the accumulation of snow, is proposed to support the station on stilts. Its elevation allows the use of a logistic system of lifting and displacement, simple and efficient, composed by a crane. The structure of the base, used in this way, free the land from any mechanical interference, and determines ways to protect pedestrians or machines.
一旦稳定下来,这艘船的材料就可以直接从海滩降落。起重机使用这条线路分配器,取决于材料的目的地,这些材料可能用于基础的建造,然后与其集成。
The boat’s material may land directly from the beach, once stabilized. The crane uses this line distributor depending on the destination of the material that may serve to the construction of the base and then be integrated to it.
Courtesy of Triptyque Arquitetura
阿基德图拉
Courtesy of Triptyque Arquitetura
阿基德图拉
底部的结构轴在其顶端被划分,以容纳Y活单元,最小三点图像的分布,特征站,允许快速和简单的连接之间的模块。除了适合地形,它发展形成一个阳光广场前的社会中心,会议场所,曾经在物流入侵的方式使用的机器。
The structuring axis of the base is divided at its tip to accommodate the Y living units, minimal three points image of distribution, characterizing the station, allowing quick and simple connection between the modules. In addition to fit the terrain, it develops forming a sunny square in front of the social center, meeting place, once used in a logistic invasive way by the machines.
