Alfonso Reyes 200 AMBROSI I ETCHEGARAY
2013-08-30 01:00
© Luis Gordoa
路易斯·戈多阿
委员会的任务是在科洛尼亚康德萨的阿方索雷耶斯大道和萨尔蒂洛街的拐角处设计一栋8栋住宅。该项目将建筑物与长边界线分隔开来,以便以17米高的单一姿态设计拐角处,由此产生的体积通过与立面上的开口和阳台相反的结构节奏来表示。
The commission was to design a building for 8 dwellings on the corner of Alfonso Reyes Avenue and Saltillo Street, in Colonia Condesa. The project approach separates the building from the long boundary, in order to design the corner with a single gesture 17 meters high, where the resulting volume is expressed through its structural rhythm in counterpoint to the openings and balconies on the facade.
Planta Nivel +11.43
PlantaNivel 11.43
该结构由混凝土刚架连接在混凝土空心砌块墙体上,为结构提供附加刚度。在横向上,建筑物分为两个结构海湾,第一个(向长边界方向)作为一个刚性服务核心、循环和厨房,第二个(面向街道)功能是一个由轻板、木阁楼和轻墙组成的轻型海湾。

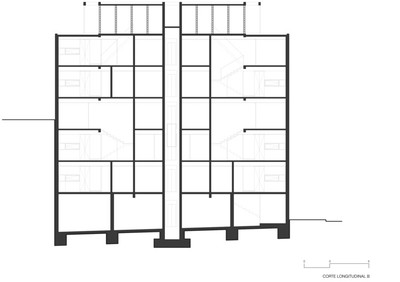

The structure is comprised of concrete rigid frames attached to walls of hollow concrete block, which provide additional rigidity to the structure. In the transverse direction, the building is divided into two structural bays, the first (towards the long boundary) functions as a rigid services core, circulation, and kitchens, and the second (towards the street) functions as a light bay of lightened slabs, wooden lofts and light walls.
© Luis Gordoa
路易斯·戈多阿
开口的组成是由于缺乏刚性墙,而不是正面的一个洞。在建筑物内,八座住宅的设计结合了一层和两层的类型。垂直循环连接在与相邻的一个分离的体积上,使这条小巷成为通往房屋的通道。

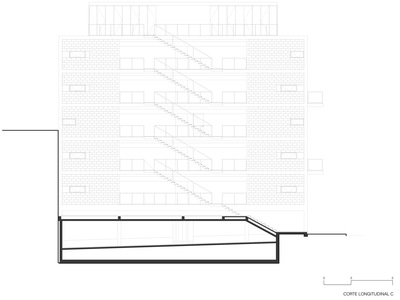

The composition of openings is posed as the lack of a rigid wall, instead of a hole in the facade. Inside the building, eight dwellings are designed combining typologies of one and two levels. Vertical circulations are attached to the volume at the separation with the adjoining one, making this alley the access to the homes.
© Luis Gordoa
路易斯·戈多阿
© Luis Gordoa
路易斯·戈多阿
Architects Ambrosi I Etchegaray
Location La Condesa, 06140 Mexico City, Federal District, México
Category Apartments
Project Area 880.0 m2
Project Year 2012
Photography Luis Gordoa
