Intercity Bus Terminal José Luis Rodríguez Gil

2014-01-11 01:00

我们提出了行人与公交的完全分离,对行人循环进行优先排序,并对终点站进行组织,使建筑物在两者之间起到过滤的作用。
We propose a complete separation between pedestrian and bus circulation, prioritizing the pedestrian circulation and organizing the terminal so that the building functions as a filter between them.
 © Fernando Alda
(费尔南多·阿尔达)
我们试图为用户创造一个独特的环境:一个有关系和亲密空间的平台,这个平台几乎完全由通过物体的光线的特定质量来定义。
We try to generate a unique environment for the user: a platform with relationship and intimate spaces enveloped in an atmosphere almost exclusively defined by the particular quality of light passing through the object.

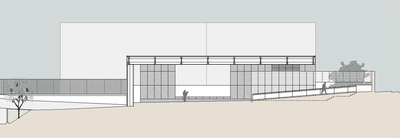

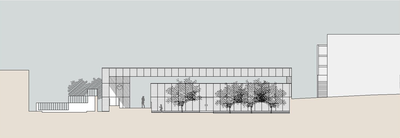

 Section 02
Section 02
该终端是作为一个自主的发光物体:一个大的,轻屋顶,非物质化,折叠到地面,在下面两个与花园相关的等待区以及终端建筑,处理相同的包层,形成另一个褶皱。
The terminal is proposed as an autonomous and luminous object: a large, light roof, dematerialized, which folds to the ground, under which both waiting areas associated with gardens as well as the terminal building are located, treated with the same cladding, forming another fold.
 © Fernando Alda
(费尔南多·阿尔达)
我们寻找的终端不同于通常黑暗的车站,因为它让光线通过:半透明聚碳酸酯屋顶板,和镀锌穿孔钢板的所有方面。
We seek a terminal that is different from the usually dark stations, as it lets light pass through: translucent polycarbonate roof plates, and galvanized perforated steel sheet cladding on all sides.
 Diagram 02
Diagram 02
除了该项目的这些一般特点外,我们还强调了其他旨在减少该项目在其环境中的影响的特点,以期建立一个简单、实用、宽敞的形象、经济和生态的提案:
Along with these general characteristics of the project, we highlight other characteristics that seek to reduce the impact of the project in its environment, looking to build a proposal with a simple, functional, spacious image, economical and ecological:
 © Fernando Alda
(费尔南多·阿尔达)
-轻型建筑(金属结构),100%可循环利用,很容易适应新的需要,将内部元素设计为家具。
- Light building (metal structure), 100% recyclable, and easily adaptable to new needs, in designing the interior elements as furniture.
-寻找“零维护”,使用材料和裸露的建筑构件,不加任何表面,采用镀锌、穿孔板包层,具有多种功能:为提案提供空间(允许“遮盖”设计的不同环境,同时集成和分离它们)、安全、太阳能保护和建筑、维护和未来再循环的经济性。
- Search for "zero maintenance", using materials and exposed construction elements with no added finishes, with a galvanized, perforated sheet cladding that has several functions: provide spaciousness to the proposal (allows a "veiling" of the different environments designed, integrating and separating them simultaneously), security, solar protection, and economy in construction, maintenance and future recycling.
-消除建筑中的有害成分,如聚氯乙烯(聚丙烯卫生、合成橡胶屋顶排水和没有卤素的电缆),以及不含挥发性有机化合物的合成油漆和清漆。
- Elimination of harmful elements in construction, such as PVC (polypropylene sanitation, synthetic rubber roof drainage, and cables without halogens), and synthetic paints and varnishes without VOCs.
-将雨水再用于花园灌溉,在花园区用一个混凝土蓄水池储存从屋顶和其他排水沟收集的水,这些水具有本地落叶物种,在最裸露的地区(南部和西部)夏季用作太阳能保护。
- Reuse of stormwater for garden irrigation, with a concrete cistern to store water collected from the roof and other drains in the garden areas, which feature native deciduous species, used as solar protection in summer in the most exposed areas (south and west).
-出入区的沥青含有再生轮胎中的橡胶。
- The asphalt at the access area contains rubber from recycled tires.
