Ground Floor Plan

架构师提供的文本描述。没有那么多的工作开始像这样，业主的愿望和希望，希望他们的新家。一份与建筑师通常合作的原则和价值观更接近的清单，通常是秘密的，而不是那些面临这一未知挑战的夫妇的普通期望。清单总是充满善意，但往往不完整。这是一个充满责任感的开端，但却是一个极好的开端。

Text description provided by the architects. Not so many jobs begin like this one, with an owners' list of wishes and hopes for their new home. A list much closer to the principles and values architects usually work with, often secretly, than the ordinary expectations of those couples facing this unknown challenge. Lists always full of good intentions but often incomplete. This was the start, loaded with responsibility, yet an excellent start.

 © Adrià Goula

(AdriàGoula)

该地块位于巴塞罗那附近的圣库加特住宅区，有足够的优良属性成为项目的主线。其中一个主要目标是在房子和花园之间建立一种密切而重要的关系，使它们成为彼此的延伸。所有这些，没有掉进不可避免的，往往是不成比例的，如此反复出现的大玻璃板：他们想要墙壁，我们也是这样做的。为一对艺术收藏家准备的花园里有墙的房子。

The plot, located in a residential area of Sant Cugat, near Barcelona, had enough good attributes to become the project main line. One of the main goals was to achieve a close and essential relationship between the house and the garden in such a way that they both became the extension of each other. All that, without falling into the unavoidable, often out of proportion, and so recurrent large glazed panels: they wanted walls, and we also did. A house with walls in a garden for an art collectors couple.

 © Adrià Goula

(AdriàGoula)

由于这些原因，从正确的一开始，该建议在将最大数量的房间放置在底层，但又保持花园没有砖石工程量之间的平衡。这一想法是通过一个体积的组成，形成了三个盒子散布在整个花园，几乎对齐，并位于小区北侧，创造了一个宽的外区朝南。第一个盒子在东边，是儿童区的房子，楼上有三间单人卧室，一楼有一个游戏室。

For those reasons, from the right beginning, the proposal searches the balance between placing the maximum number of rooms on the ground floor yet keeping the garden free from masonry work volumes. This idea is developed through a volumetric composition shaped in three boxes spread throughout the garden, almost aligned and located in the plot northern side creating a wide outer zone facing south. The first box, to the east, houses the children's area with three single bedrooms upstairs and a playroom on the ground floor.

 © Adrià Goula

(AdriàGoula)

第二间，在中央，容纳主房间：厨房，一个近30平方米和4米高的房间，由一个大壁炉为主。第三个盒子在西边，里面有父母的区域，卧室在花园里，一楼有一个高天花板的工作室。

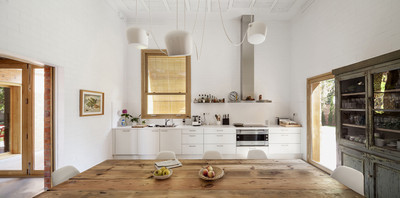

The second one, in the centre, accommodates the main room: the kitchen, a nearly 30square metre and 4metre high room dominated by a large fireplace. The third box, to the west, contains the parents’ zone, with the bedroom at the garden level and a high ceiling studio on the first floor.

 © Adrià Goula

(AdriàGoula)

三个盒子之间的空间覆盖着两个不同的环境，向南北方向的花园开放，可以用大折叠的窗户关闭。这些空间提供了一个非常不同的气氛，更多地相关的花园面积，而不是房子。在儿童区和厨房之间的第一个中间空间作为门厅。第二个更大的，在父母的区域和厨房之间，是起居室，而不是传统的客厅：冬天是绿色的房子，夏天是新鲜的门廊。

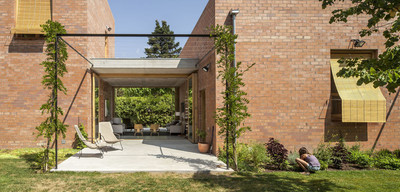

The spaces created between the three boxes are covered sheltering two different environments, open to the garden in north-south direction and can be closed with big folding windows. These spaces offer a very different atmosphere, much more related to the garden area than to the house. The first of these interstitial ambiences, between the children's area and the kitchen, serves as entrance hall. The second one, bigger, between the parents’ zone and the kitchen, is the living room but not a conventional one: a green house during winter and a fresh porch in summer.

 © Adrià Goula

(AdriàGoula)

住宅都被花园环绕着，其中大部分是朝南的。角落(西)，锋利的形状，聚集厨房花园和池塘洗澡。在北部，绿色围栏与房屋之间的距离在5至6米之间，在无盖停车场增加到9米。这个空间是通过一条3米宽的小径连接起来的，这条小径与东栅栏平行，与南方的主要花园相连。房子的间隙(门厅和客厅)成为前后花园之间连接的门廊。

The residence is all circled by the garden, the most part of it facing south. The corner (west), sharp-shaped, gathers the kitchen garden and a pond to bath in. In the north, the distance between the green fence and the house varies between 5 and 6metres and increases up to 9metres at the uncovered car parking place. This space is connected through a 3metres wide path, parallel to the east fence, with the main southern garden. The interstitial spaces of the house (entrance hall and living room) become connecting porches between the front and back gardens.

 © Adrià Goula

(AdriàGoula)

大约体积，房子是由三个砖石立方体的不同高度设置平行于后街。虽然有几个维窗口依赖于它们的功能，立方体主要是巨大的。此外，立方体之间的间隙区域，由混凝土板覆盖，由折叠木玻璃门构成，本质上是空灵的。实际上，当窗户向后折叠时，这个空间就变成了一个开放的门廊。

About volumes, the house is composed of three brick masonry cubes of different heights set parallel to the back street. Although having several dimension windows that depend on their function, the cubes are predominantly massive. Besides, the interstitial areas between cubes, covered by a concrete slab and framed by folding wooden glass doors, are essentially ethereal. Actually, the space becomes an open porch when windows are folded back.

 © Adrià Goula

(AdriàGoula)

根据其物质性，房子是用双层砖承重墙建造的，外墙采用红色砌体，内部涂白色；木窗和门框在需要时用传统的外滚筒窗帘作为防晒霜。

According to its materiality, the house is built on double face brick load-bearing walls, using red masonry for the outer face while white painted inside; wooden window and door frames with traditional outer roller blinds as sunscreen when required.

 © Adrià Goula

(AdriàGoula)

房子是用地热热泵和地板下供暖系统来调节的，在夏天的时候会稍微刷新房子，避免使用空调系统来除湿。

The house is conditioned with a geothermal heat pump and an under floor heating system that slightly refreshes the house during summer, avoiding an air conditioned system to dehumidify.

Architects H Arquitectes

Location Sant Cugat del Vallès, Spain

Category Houses

Architects in Charge David Lorente, Josep Ricart, Xavier Ros, Roger Tudó

Area 323.0 sqm

Project Year 2013
