The Jewel Box Fraher Architects

2014-03-22 01:00

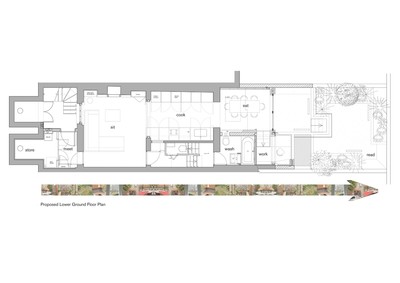

 Proposed Lower Ground Floor Plan

拟议较低底楼图则

为一个著名的银匠和QC的简要呼吁全面翻新和扩展，以提供一个餐厅和花园的房间。这座二级建筑位于突出的科勒布鲁克行保护区内。

Intended for a reputable silversmith and QC the brief called for complete renovation and extension to provide a dining area and garden room. This Grade II listed building is located in the prominent Colebrook row conservation area.

 © Andy Matthews

安迪·马修斯

这些建议被精心设计成一系列的珠宝盒，精心地插入到现有的织物中，这些建议打开并振兴了一系列黑暗的、互不相连的空间。木材和混凝土已经结合在一个简单的材料调色板周围现有的织物，邀请用户通过空间和进入花园。其余时期的建筑特征被保留和庆祝，而后面的附加使用了一个双倾斜的野花屋顶，以反弹光深的地板。

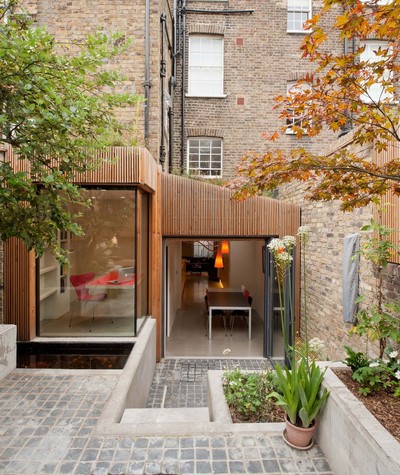

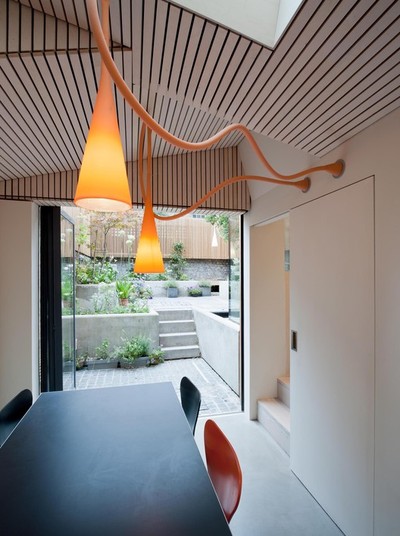

Conceived as a series of jewelled boxes carefully inserted into the existing fabric, the proposals open up and revitalise what was a series of dark disjointed spaces. Timber and concrete have been combined in a simple palette of materials that wrap around the existing fabric, inviting the user through the space and into the garden. The remaining period architectural features are retained and celebrated whilst the rear addition utilises a double canted wildflower roof to bounce light deep into the floor plate.

 © Andy Matthews

安迪·马修斯

一个隐藏的花园研究提供了一个沉思的地方，俯瞰南面庭院花园。可持续的苏格兰落叶松软化连接的插入和包装的延伸和花园的木材。木材流进房子，通过衬里餐厅浸湿在碱液桦木层，然后形成所有的浮动细木工。一楼的地板是一个超宽的木板道格拉斯飞行情报，创造了一个软的足下完成。

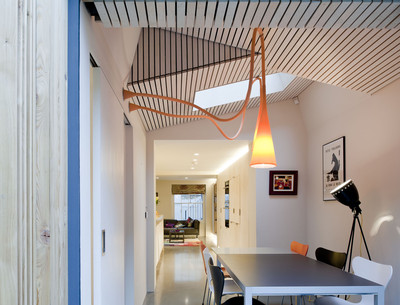

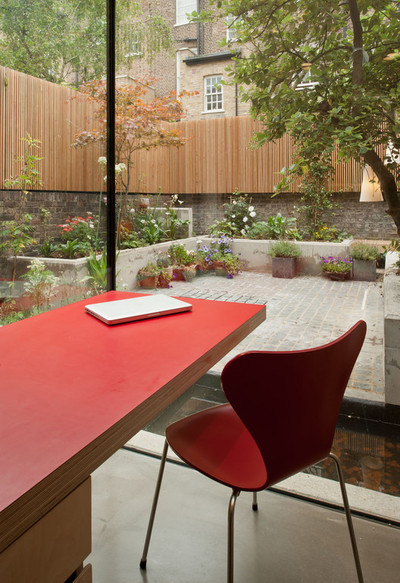

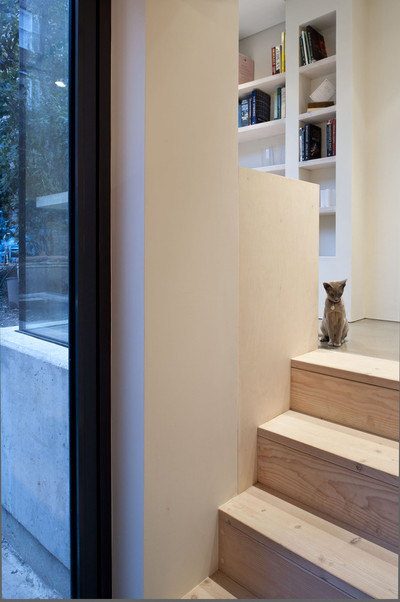

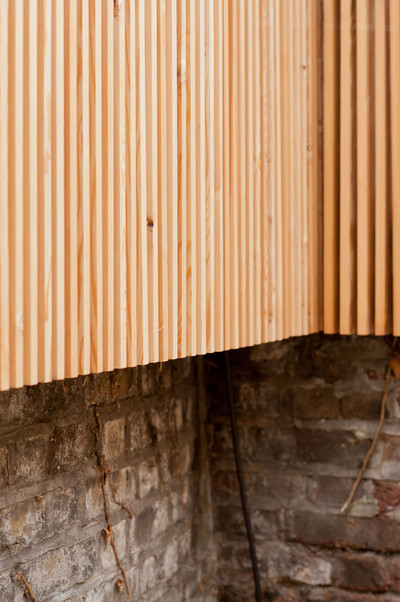

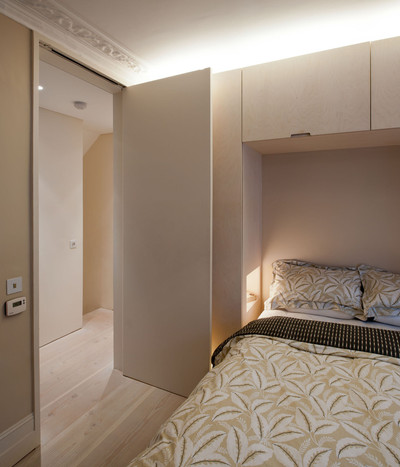

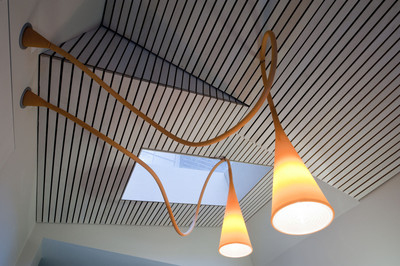

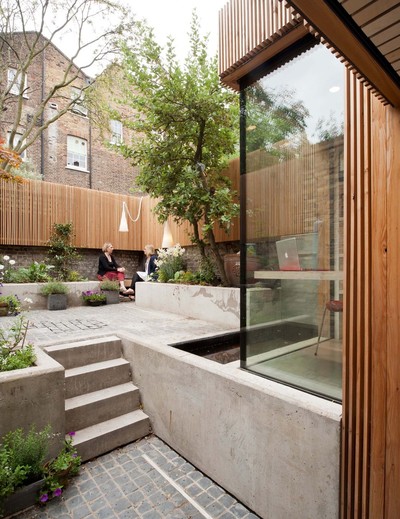

A hidden garden study provides a place of contemplation overlooking the south facing courtyard garden. Sustainable Scottish Larch softens the junctions of the insertion and wraps the extension and garden in timber. The timber flows into the house by lining the dining room soffit in lyed birch ply and then forming all the floating joinery. The floorboards to the ground floor are a super wide board Douglas Fir creating a soft finish under foot.

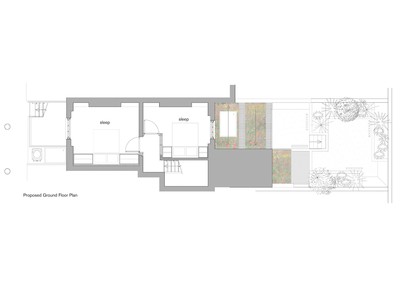

 Proposed Ground Floor Plan

拟议底层图则

双斜野花屋顶为当地蜜蜂和蝴蝶创造了丰富的生物多样性栖息地。垫子是一种野花和刚玉的混合物，全年保持屋顶的颜色。屋顶上收集的雨水被带到花园下面的一个2000升蓄水池里，在需要的时候，灌溉系统会给花园和屋顶浇水。

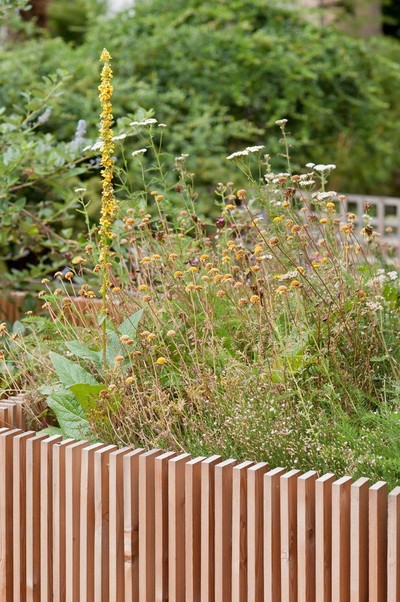

The double canted wildflower roof creates a rich bio diverse habitat for local bees and butterflies. The matting is a wildflower and sedum mix which maintains colour to the roof throughout the year. The rainwater collected on the roof is carried down to a 2000 litre storage tank beneath the garden, which feeds an irrigation system that waters the garden and the roof when required.

 © Andy Matthews

安迪·马修斯

从你进入建筑物的那一刻起，树脂/混凝土地板就引导你穿过起居空间进入花园。设计的目的是把花园吸进建筑物，把生活空间推入私人沉陷的花园。

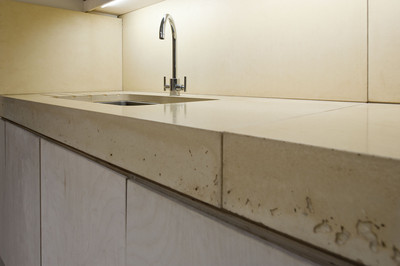

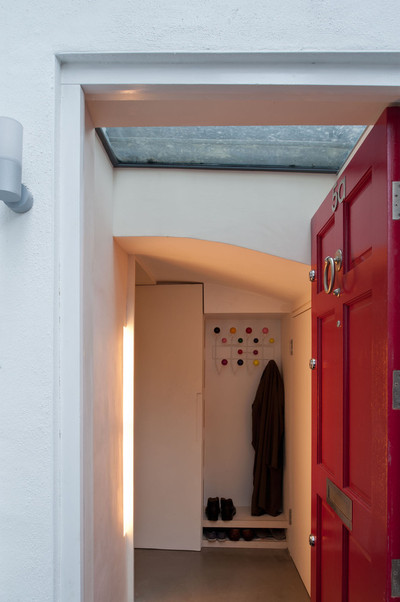

From the moment you enter the building, the resin/concrete floor guides you through the living spaces into the garden. The design intends to suck the garden into the building and push the living space out into the private sunken garden.
