该项目位于Matías Romero和JoséMaria Vertiz博士街道的拐角处，面积为364.00平方米。该项目由6层楼组成，第一级为停车和大堂，其余5层为公寓，共有15套住房。

From the archtiects. The project is located in a square site of 364.00 m², at the corner of Matías Romero and Dr. José Maria Vertiz streets. The project consists of a building of 6 levels, the first level is for parking and lobby, while the other 5 levels are for apartments, with a total of 15 dwellings.

 © Diana Arnau

戴安娜·阿诺

由于它位于该地区的一个非常重要的角落，我们设计了一个醒目的立面，它不会与街区的风格格格不入。为了实现这一点，我们设计了一个栅格，给外观运动，发挥的开口，产生阳台和梯田的变化，不同的水平。

As it is located in a very important corner of the area, we designed a striking facade that would not break with the style of the neighborhood. To achieve this, we designed a grid that gives movement to the facade, with a play of openings that generate balconies and terraces that vary by level.

 © Diana Arnau

戴安娜·阿诺

同样，我们与设计师ArielRojo合作，创建了一个具体的格子，作为服务的外观(停车场和流通核心)。为了与正面形成更大的对比，整个建筑都是用白色混凝土建造的，很容易将住宅与服务区分开来。

Similarly, we worked with the designer Ariel Rojo to create a concrete lattice that serves as a facade for the services (parking and circulation core). In order to give a greater contrast to the facade, the entire building is made of white concrete, easily differentiating the dwellings from the services.

 First Level

一册班

建筑物的运作分为一座塔和一个共用的庭院。垂直循环和紧急楼梯位于同一核心在建筑物的一端，这个核心被限制在混凝土格子，允许这个空间的持续通风。

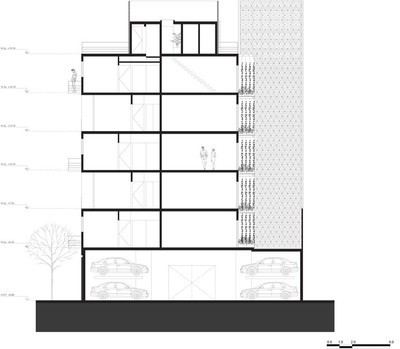

The operation of the building is divided into a tower and a shared courtyard. The vertical circulation and emergency stairs are located in the same core at one end of the building, this core is confined to the concrete lattice, allowing constant ventilation for this space.

 © Diana Arnau

戴安娜·阿诺

地下有一个大厅，将停车场与垂直循环联系起来。所有住宅都有自然照明和通风，以及浴室和厨房。

There is a lobby on the ground floor, communicating the parking area with the vertical circulation. All residential premises have natural lighting and ventilation, as well as the bathrooms and kitchens.

 © Diana Arnau

戴安娜·阿诺

该建筑物的屋顶专供上层居民使用，为所有公寓的居民留下了共同使用的空间。

The roof of the building is intended for the exclusive use of residents from the upper level, leaving a space for common use for residents from all apartments.

 © Diana Arnau

戴安娜·阿诺

每层可容纳3套公寓，面积从65平方米至95平方米不等，在外墙上开放。此外，我们还增加了室内庭院，为所有公寓提供极好的照明。为了减少循环，走廊被带有植被的垂直张量隔开，留下后面的区域作为私人阳台。

Each level accommodates 3 apartments ranging from 65 to 95 m², which open onto the exterior facade. To this we add the interior side yard which provides excellent lighting for all apartments. To reduce the circulation, hallways are divided by vertical tensors with vegetation, leaving the back area as a private balcony.

所有公寓在所有地区都有阳台和露台，因此在小公寓中提供了更大的空间。

All apartments have balconies and terraces in all areas, thus providing greater spaciousness in small apartments.

Architects HGR Arquitectos

Location Calle Matías Romero, Vertiz Narvarte, Mexico City, Federal District, Mexico

Category Apartments

Architect Marcos Hagerman

Project Area 1835.0 m2

Project Year 2014

Photographs Diana Arnau
