Mulini Beach Studio 3LHD

2014-10-19 01:00
 © Joao Morgado
.Joao Morgado
架构师提供的文本描述。Mulini海滩位于Rovinj的一个有吸引力的区域,在市中心出口处,在步行街的继续处,在Monte-Mulini、Lone和Eden酒店前面,周围是一个富丽堂皇的绿色公园和绿色森林保护区。它是城市公共区域和长廊的延伸,其主要功能是连接Rovinj市和Punta Corrente公园。

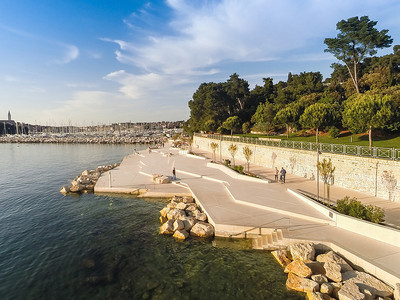

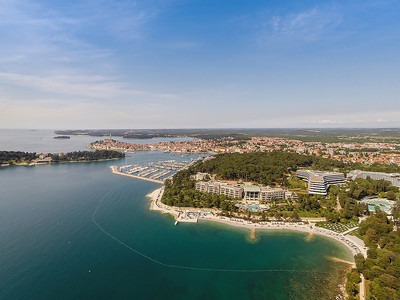

Text description provided by the architects. Mulini Beach is located in an attractive area of Rovinj, on the exit from the central part of the city and in the continuation of the promenade, in front of hotels Monte Mulini, Lone and Eden, wrapped in a rich green public park and green forest protective areas. It is an extension of the city’s public area and the promenade whose primary function is to connect the city of Rovinj and park Punta Corrente.
 © Joao Morgado
.Joao Morgado
海滩设计中一个极其重要的因素是与现有地形的关系。对于完全不同的具体环境,取决于一天中的时间(海平面变化约为80厘米),由于潮汐的影响,设计依赖于海洋作为一个可变因素,在设计过程中,海洋对创造性决策产生了重大影响。

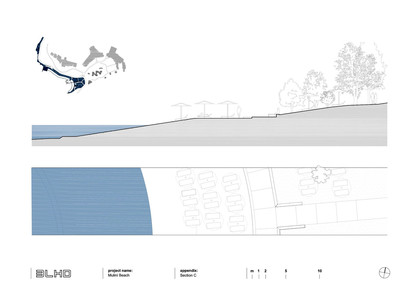

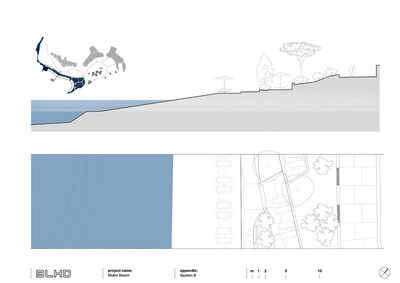

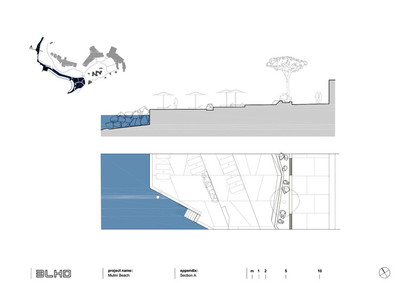

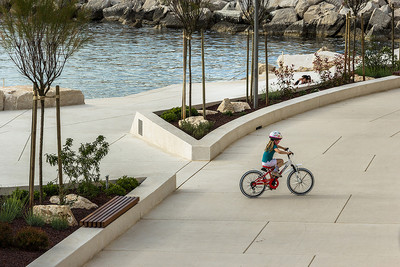

An extremely important factor in the design of the beach was the relationship to existing terrain. With regard to the specific environment that is completely different depending on the time of day (the sea level varies in approximately 80 cm) due to the influence of the tides the design was dependent on the sea as a variable element, the sea has significantly influenced the creative decisions during the design process.
 © Joao Morgado
.Joao Morgado
这就是为什么整个海滩被划分成两个区域的原因-从码头延伸到受海浪影响的海滩展馆,还有一个平静得多的海湾和一个卵石海滩。第一个区域设计为自然地形,有许多用于日光浴的裂缝面和相对稀疏的植被。平静的孤岛湾形成了一个鹅卵石海滩,植被茂盛,缓缓地向大海倾斜。

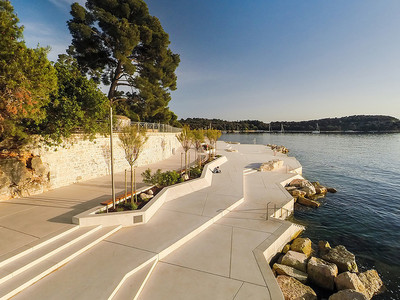

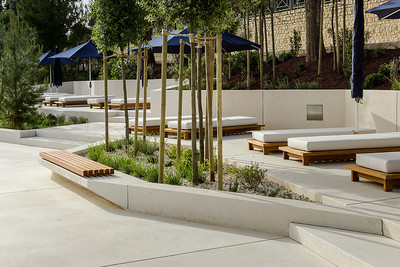

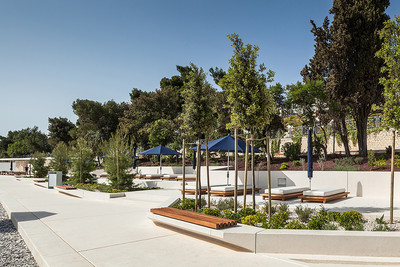

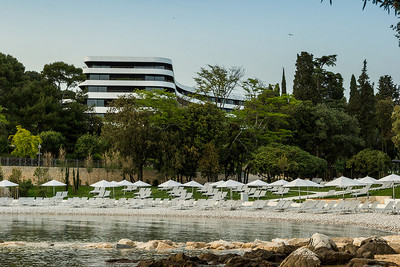

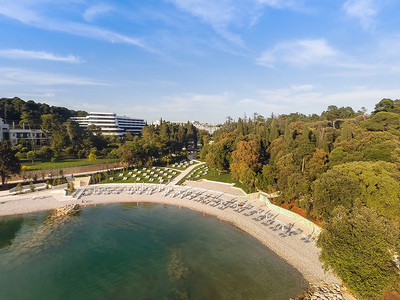

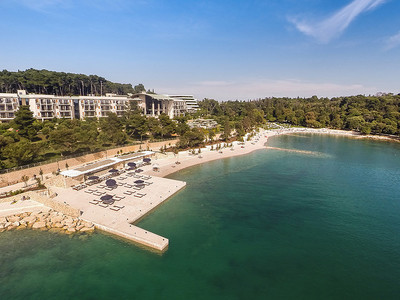

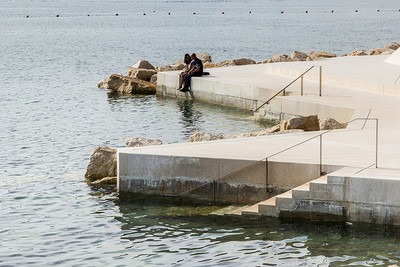

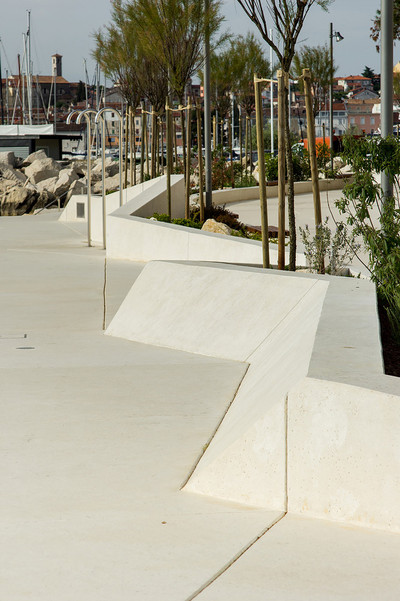

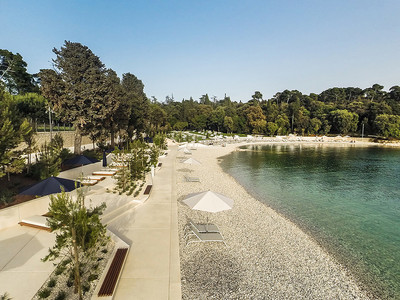

That is why the entire area of the beach is divided into two zones – a stretch from the marina to the beach pavilion that is greatly influenced by the waves, and a much calmer bay with a pebble beach. The first zone is designed as a natural topography, with lots of fractured surfaces for sunbathing and relatively sparse vegetation. The calmer Lone bay is formed as a pebble beach with lush vegetation that gently slopes into the sea.
 © Joao Morgado
.Joao Morgado

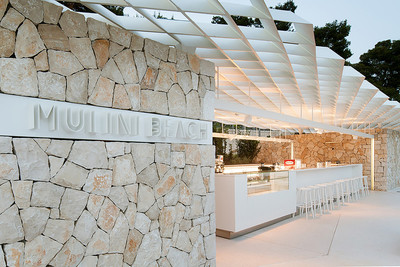

穆里尼海滩酒吧,一个海滩设施,有一个大型酒吧,更衣室,淋浴,厕所和问询台位于该区域的中心。晚上,海滩酒吧变成了一个更加亲密的休息室,在海边有着舒适的气氛。它被设计成一个带有浮顶的亭子-一种以6分为基础的钢结构,它的最终形状是通过对夏季几个月太阳运动的分析来确定的。

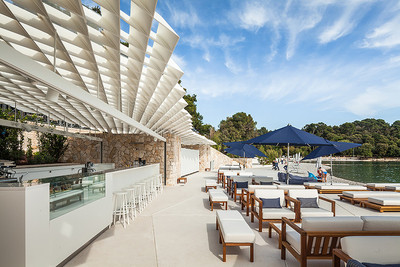

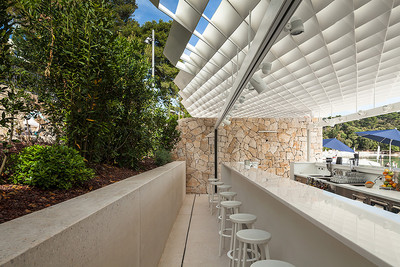

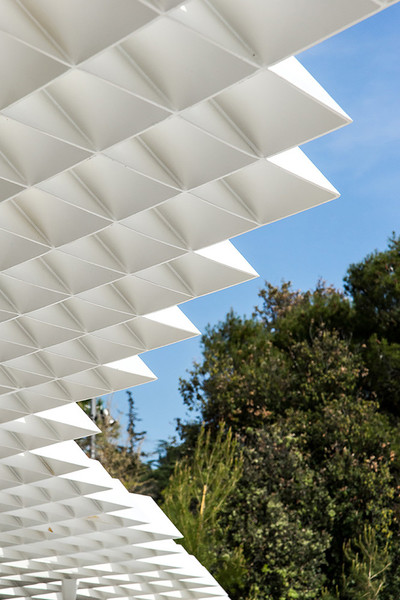

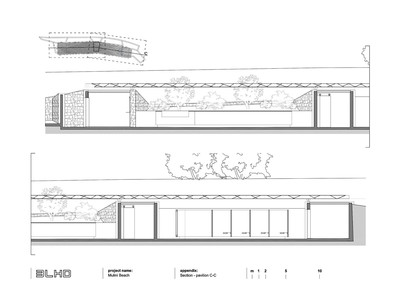

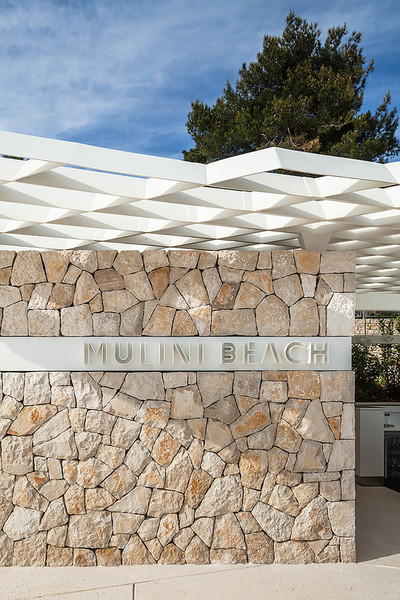

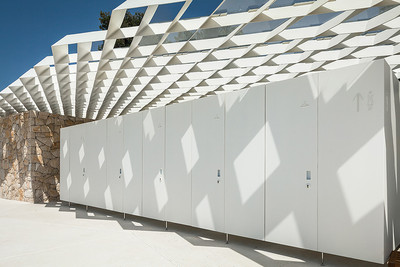

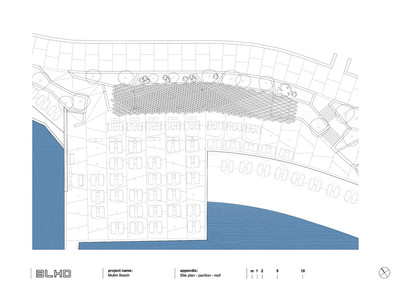

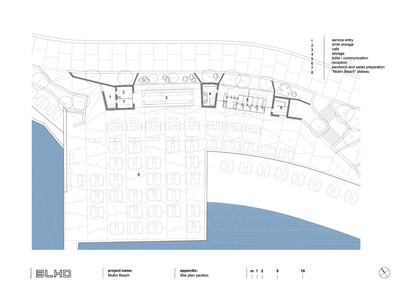

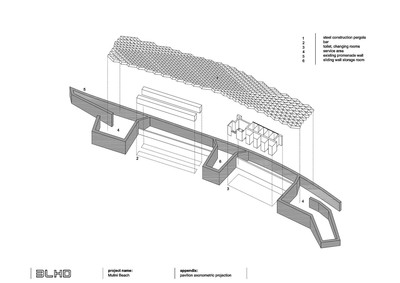

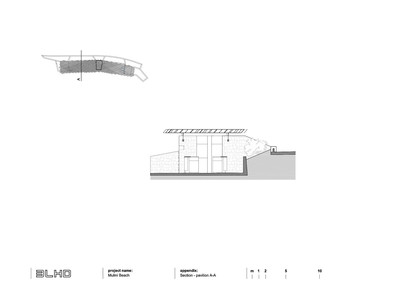

Mulini Beach Bar, a beach facility with a large bar, locker rooms, showers, toilets and an information desk is located in the center of the zone. In the evening, the beach bar turns into a more intimate lounge with a cozy atmosphere by the sea. It is designed as a pavilion with a floating pergola roof – a steel structure that rests on 6 points, whose final shape was determined by an analysis of the sun movement through the summer months.

它重20吨,跨度30米。它由8mm和20 mm厚的钢板构成,总高度为20厘米。在白天,可以用存储在储藏室内的滑动墙关闭酒吧。滑动墙挂在培高拉建筑上。酒吧前面的高原配备了基础设施,允许小型音乐会和娱乐活动。
The pergola, weighing 20 tons, has a span of 30m in length. It is constructed from steel sheets 8mm and 20mm thick, and has a total height of 20cm. The bar can be closed with a sliding wall that is stored inside a storage room during the day. The sliding wall is hung from the pergola construction. The plateau in front of the bar is equipped with infrastructure that allows small concerts and entertainment.
 © Joao Morgado
.Joao Morgado

































Architects Studio 3LHD
Location Rovinj, Croatia
Category Public Architecture
Area 13515.0 sqm
Project Year 2014
Photographs Joao Morgado
