架构师提供的文本描述。这一概念考虑到地理位置的自然优势和地形内现有的干预措施，同时尽可能多地保留现有的树木。除了13.000个座位外，还有3.000平方米的公共空间，根据欧足联的分类，可分为4类。交通和停车是在森林之间组织起来的。

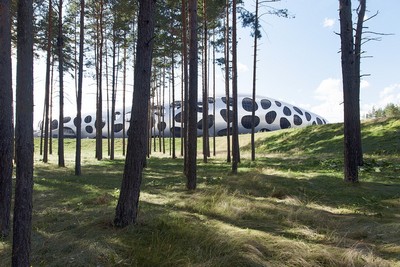

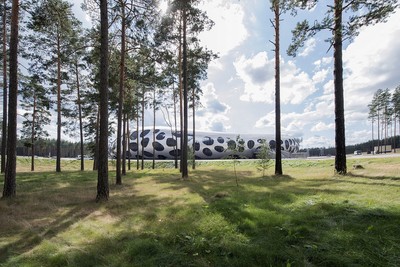

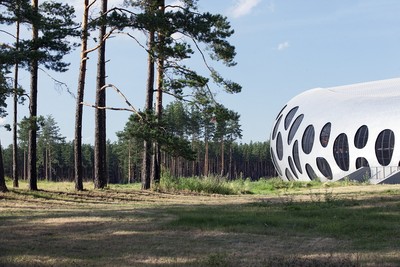

Text description provided by the architects. The concept takes into account the natural advantages of the location and the existing interventions within the terrain, while maintaining as many of the existing trees on site as possible. Besides 13.000 seats there is additional 3.000 m2 of public space and are classified 4 stars according to UEFA categorization. Traffic and parking is organised between the forest.

竞技场形成一个统一的圆形圆顶，给人的印象是一个封闭的物体。穹顶的皮肤给人一种脆弱、拉伸、穿孔的纺织品的印象，它被拉在体育场的骨架上。皮肤和围裙之间的覆盖空间是一条公共街道-一个有公共设施的前厅(商店、酒吧、服务、厕所)和上面的画廊(办公室、贵宾、出版社)。

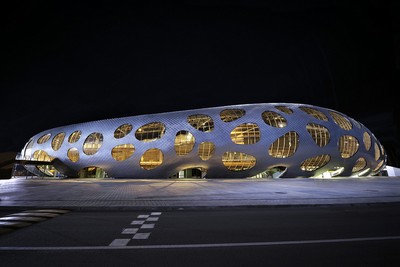

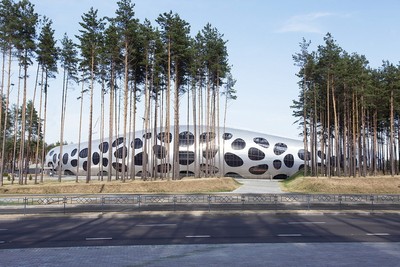

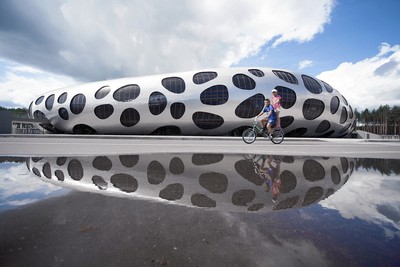

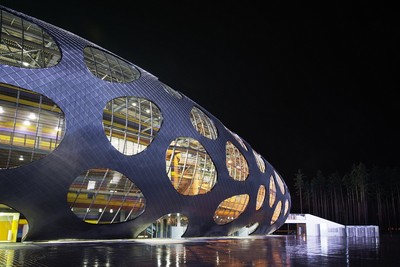

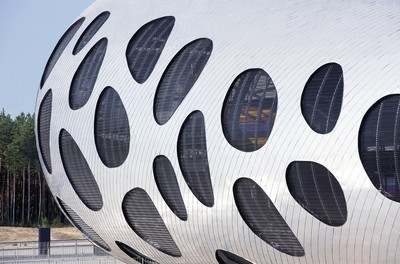

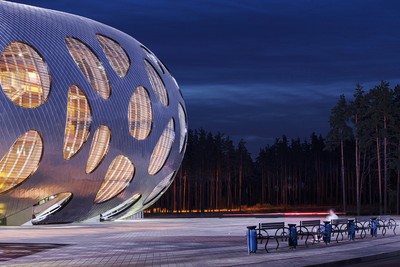

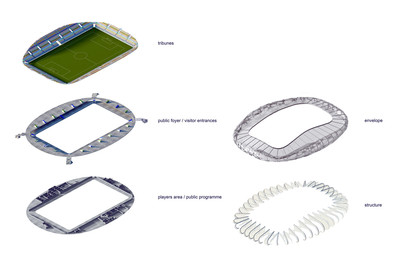

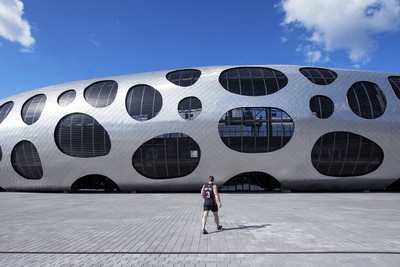

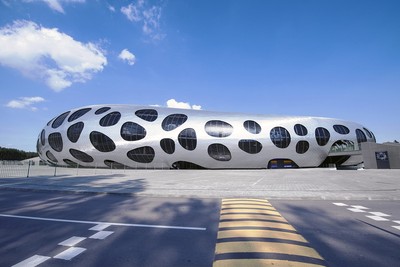

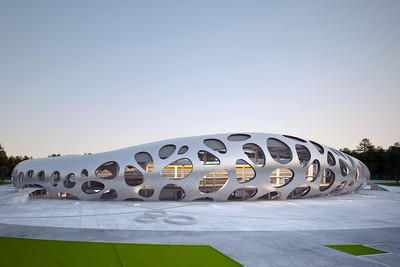

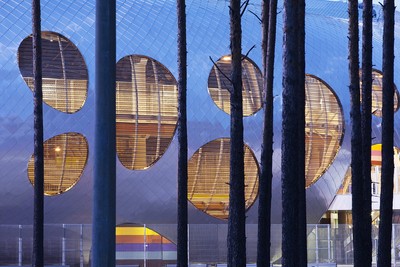

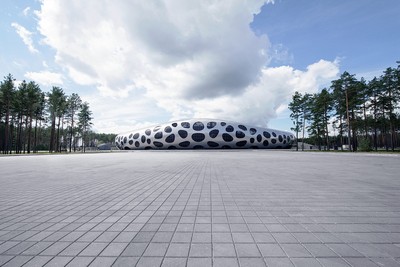

The arena forms a unified rounded dome, giving the impression of a single enclosed object. The Skin of the dome gives an impression of a fragile stretched perforated textile pulled over the stadium skeleton. The covered space between the skin and the tribunes is a public street-a vestibule with public program (shops, bars, services, toilets) and galleries above (offices, VIP, press)

 © Tomaz Gregoric

托马兹·格雷戈里

在内部，圆形竞技场提供良好的音响，鼓励球员和球迷在比赛中的外向气氛，但集中在训练时间。游戏表面呈N-S方向，总面积85×105 m，游戏使用68×105 m。剩余的区域为安装广告屏幕、摄影师和照相机提供了足够的空间。座位在运动场周围排成17排，沿两侧排列，27至28排沿短边排列。上西方画廊保留供记者使用的座位和桌子，可供40名记者使用，并可直接进入新闻室和混合区。在东方是贵宾看台，有250个座位，酒吧和娱乐空间。VIP可通过电梯直接从入口区域通过汽车车道进入。运动员在较低的站台上有一个单独的通道，有通往车队公共汽车和停车的通道。进入场地的每个入口都有两个更衣室、混合区、理疗和一个兴奋剂管制空间。

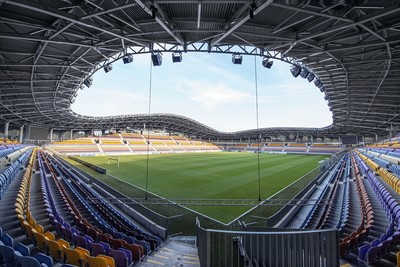

Internally, the rounded arena provides good acoustics and encourages an extrovert atmosphere from the players and the fans alike during the game, but focuses concentration during training time. The playing surface has N-S orientation, with a total area of 85x105 m, on which 68x105m is used for playing. The remaining area allows enough space for the installation of advertising screens, photographers and cameras. The seats are arranged around the playing field in rows of 17 along the sides and rows of 27-28 along the short sides.The upper west gallery is reserved for press cabins, with seats and tables for 40 journalists and direct stair access to the press room and mix zone. In the east are the VIP stands, with 250 seats and bar and entertainment spaces. The VIP is accessed directly via an elevator from the entrance area with a car driveway. The athletes have a separate access on the lower platform, with passage to team buses and parking. At each entry point to the field are two dressing rooms, mix zone, physiotherapy and a space for doping control.

 Level 00 Plan

00级计划

西站区有4层楼，有额外的项目和服务设施，东侧有3层。大堂位于一楼，设有四个楼梯接入点。这是一个覆盖高原，自然通风和不加热。在体育馆内的竞技场周围，这个空间里有游客的厕所、酒吧、急救室和拘留室：这是一个中场休息的地方。3.000平方米的公共项目分布在建筑的北部、南部和东端的地面上。在东部，有一家餐厅和保龄球区。该餐厅在比赛期间为贵宾准备饭菜，并在其公共休息室内配备一部服务电梯，以满足贵宾休息室和酒吧的需要。在南方，有公共健身/健身房工作室。其他公共区域空间是为各种商业活动而设计的。所有餐馆都可以从公共平台进入。站台周围是一个圆形的人行广场，作为环形交叉路口和会合区。停车场被整理成现有的森林区域。

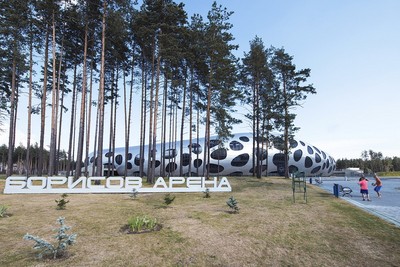

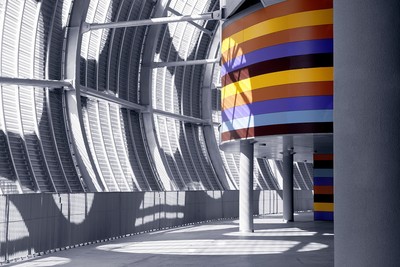

There are 4 floors with extra program and service facilities under the west stand area and 3 floors under the east side. The foyer for visitors is located on the first floor level and has 4 stairway access points. It is a covered plateau, naturally ventilated and unheated. Extending all around the inner stadium arena, this space contains the visitor's toilets, bars, first-aid room and detention: it is a place to break during half-time. 3.000 m2 of public program is distributed at ground level on the north, south and east ends of the structure. In the east, a restaurant and bowling area are located. The restaurant prepares meals for the VIP during the match, with a service elevator for catering to the VIP lounge and bar within its public foyer. In the south, there are public fitness/gym studios. Other public area spaces are designed for various commercial activities. All restaurants have access from the public platform. Around the platform is a rounded pedestrian square, as a peripheral roundabout and meeting area. Parking pockets are organised into the existing forest area.

 © Tomaz Gregoric

托马兹·格雷戈里

Architects OFIS Architects

Location Borisov, Belarus

Category Soccer Stadium

Architect in Charge Rok Oman, Spela Videcnik

Project Team Janez Martincic, Rok Gerbec, Andrej Gregoric, Konstantine Bogoslavsky, Janja Del Linz, Katja Aljaz, Ana Kosi, Ieva Cicenaite, Grzegorz Ostrowski, Filip Knapczyk, Sergio Silva Santos


Area 6108.0 m2

Project Year 2014

Photographs Tomaz Gregoric
