架构师提供的文本描述。经典百货公司的定义是一个严格的地貌：一个有四个立面的盒子。这个限制是项目中要克服的主要挑战。材料的非物质化是根据固体和空隙元素的水平性创造扩散极限的指导概念，以达到漂浮层的效果。

Text description provided by the architects. The classical department store is defined by a strict physiognomy: a box with four façades. This constraint was the principal challenge to be overcome in the project. Dematerializing the material was the guiding concept used to create diffuse limits based on the horizontality of the solid and void elements to achieve an effect of floating layers.

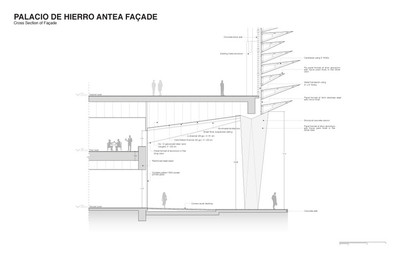

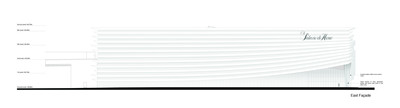

 Corte por Fachada

[医]鹿角(Corte Por Fachada)

门面由一系列尺寸和部分设计的水平元素组成，产生了一种干净而流畅的运动，最终使商店的一个角落的主入口处框架化。这个入口是由一个大的欢迎前厅加固的，它是一个过渡的元素，有一个宏伟的双高度，允许透气性的外观。从地面和一楼的内部-即美食区所在的地方-可以观察到外部，从而打破了大多数百货公司的典型盲墙。

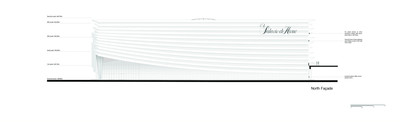

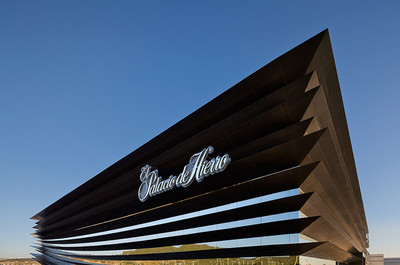

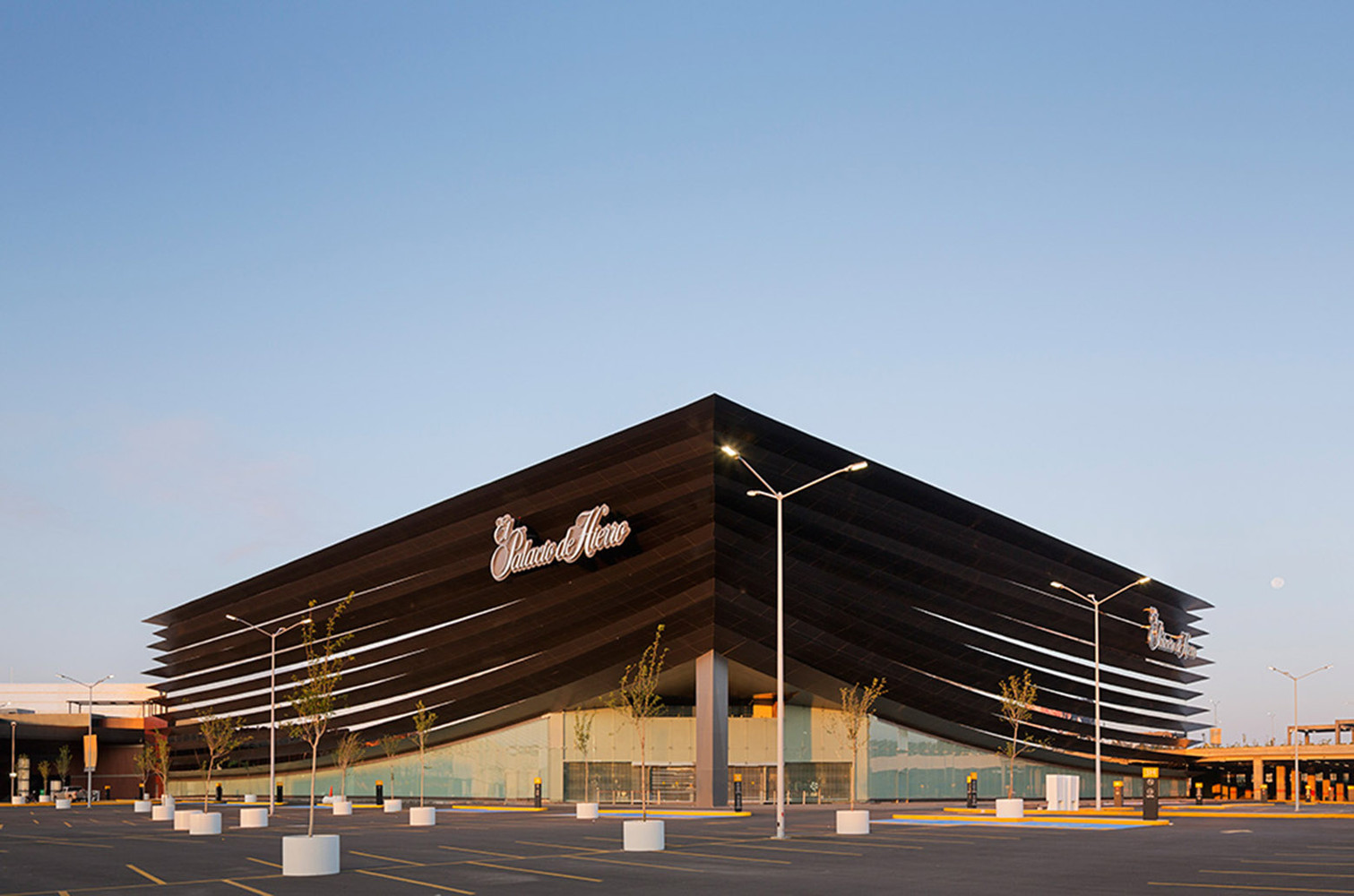

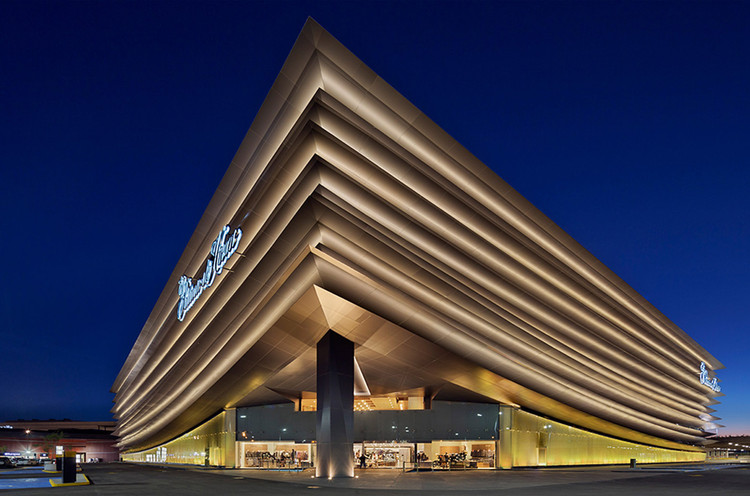

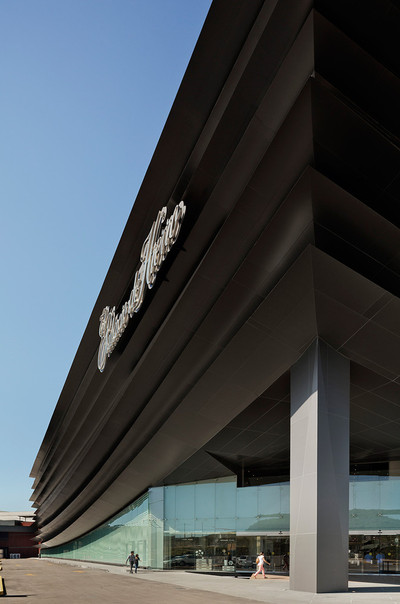

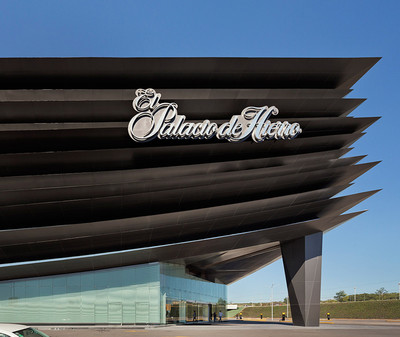

The façade is comprised of these horizontal elements designed in a range of dimensions and sections, giving rise to a clean and fluid movement that culminates in the framing of the principal entrance to the store at one of its corners. This entrance is reinforced by a large welcoming vestibule that serves as a transitional element with a majestic double height that permits the permeability of the façade. From the interior of the ground and first floors—where the gourmet food area is located—the exterior may be observed, thus breaking with the typical blind walls that define most department stores.

 © Paul Rivera

(Paul Rivera)

优化资源对于调整外观至关重要，这意味着它的结构能够为所有“层”使用一个单一的铝板原型，即使这些层有不同的尺寸、截面和运动。“实心层”的范围从1.80米到3.40米之间，穿过外墙和每个角落。它们由固定在钢结构上的铝板组成。“空隙”元素实际上是反映项目环境、植被和Queretaro非凡天空的铝镜像面板。反射的这种效果创造了一种透过物质的光学错觉，使固体元素似乎漂浮在磁力中，防止它们相互接触。

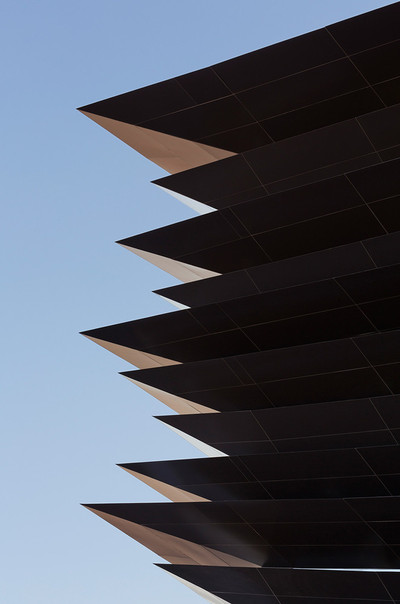

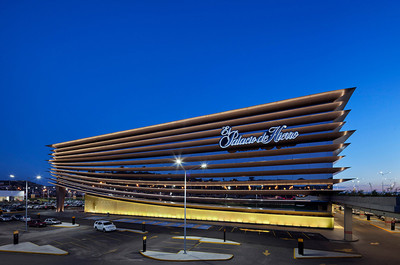

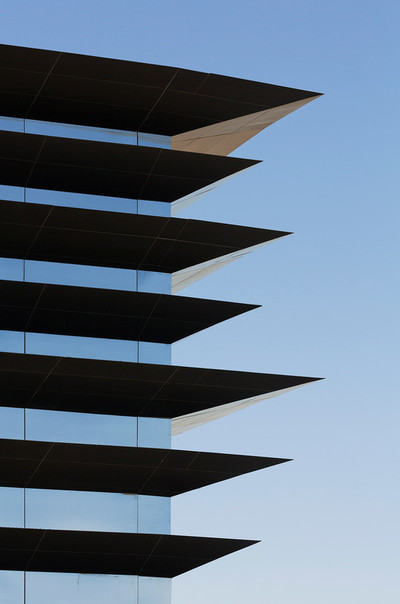

Optimization of resources was essential to the modulation of the façade, meaning it was structured in such a way as to employ a single aluminum panel prototype for all the “layers” even though these have different dimensions, sections and movements. The “solid layers” range from 1.80 m to 3.40 m across the façade and in each of its corners. They comprise aluminum panels anchored to a steel structure. The “void” elements are actually aluminium mirrored panels that reflect the project surroundings, vegetation and the extraordinary skies of Queretaro. This effect of reflection creates an optical illusion of seeing through the material, making the solid elements appear to float with a magnetic force that prevents them touching each other.

 © Paul Rivera

(Paul Rivera)

奎里塔罗市的市民们感激地收到了这个项目。这个项目已经成为该市的一个新标志，并获得了流行的名字“伟大的书”(The Great Book)，因为它与一本公开的书的叶子很相似。帕拉西奥·德·耶罗(Palacio De Hierro)是安泰生活方式中心的一部分，位于该建筑群的北端，是其主要的主营商店之一。安茶是一个线性发展与体积测量，是封闭的外部和开放的内部，有一个绿色的脊梁。安泰的Palacio de Hierro的立面概念旨在与发展的其余部分的封闭体积法形成对比，突出其可渗透的外观和对外部开放的影响。帕拉西奥·德·耶罗和安泰购物中心都是由索多·马达莱诺·阿奎托斯设计的。

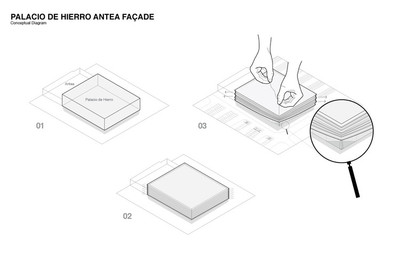

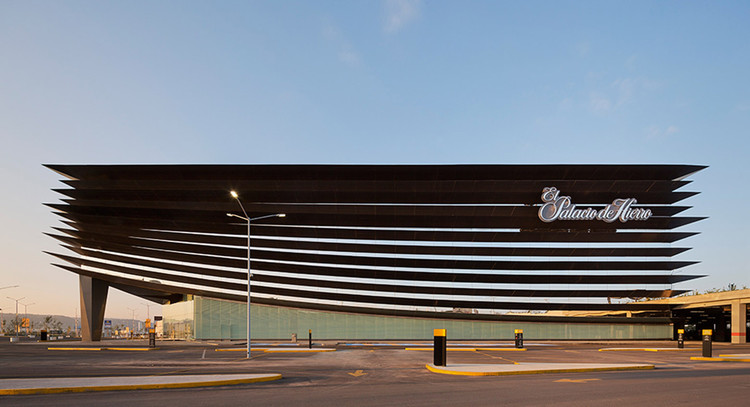

The citizens of Queretaro have gratefully received this project, which has become a new icon in the city and acquired the popular name “the great book” due to its resemblance to the leaves of an open book. Palacio de Hierro is part of the Antea Lifestyle Center and is located at the north end of the complex as one of its principal anchor stores. Antea is a linear development with a volumetry that is closed to the exterior and open to the interior, with a green backbone. The concept of the façade of the Palacio de Hierro in Antea seeks to contrast with the closed volumetry of the rest of the development, standing out with its permeable façade and an effect of openness to the exterior. Both Palacio de Hierro and the Antea shopping mall are designed by Sordo Madaleno Arquitectos.

Architects Sordo Madaleno Arquitectos

Location Santiago de Querétaro, Querétaro, Mexico

Category Shopping Centers

Architects In Charge Arq. Javier Sordo Madaleno Bringas

Architecture Leader Arq. Javier Sordo Madaleno de Haro

Project Leader Arq. Humberto Mendoza

Architecture Team Fernando Sordo Madaleno de Haro, Juliam Silva, Andrés Muñoz

Área 9000.0 m2

Project Year 2014

Photographs Paul Rivera
