架构师提供的文本描述。该项目的目的是为Rianxo港提供70个储存渔具的新房舍。为此目的提供的地点是港口地区的一个广阔的海滨，就在Rianxo镇外，海岸线向南延伸。这是一个极不发达的地区，大礼堂、鱼市、储藏室和一些修理船只的处所，都是以分散的方式兴建的。也有住宅建筑，但它们位于山腰，在山脊的尽头。这一特殊的地形条件显着地与城市结构联系在一起，并使这一地区在南北意义上占据主导地位。

Text description provided by the architects. The objective of this project was to provide the Porto de Rianxo with 70 new premises for the storage of fishing tackle. The location provided for this purpose is a wide esplanade of the port area, located just beyond the town of Rianxo, on a southward extension of the coastline. This is a scarcely developed area where an auditorium, the fish market, storage buildings and some premises for repairing ships have been built in a scattered manner. There are also residential buildings, but they are located on the hillside at the far end of the esplanade. This particular orography conditions significantly the connection with the urban fabric and imposes this area a dominant configuration in North South sense.

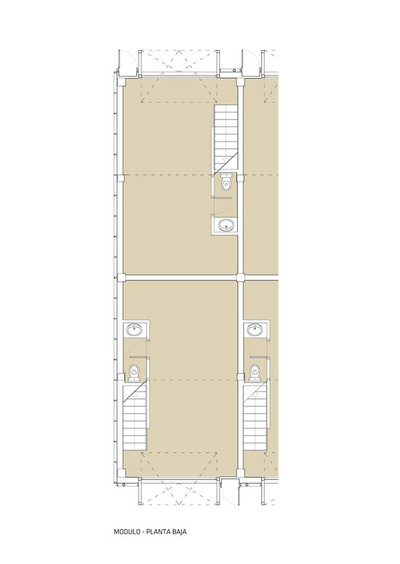

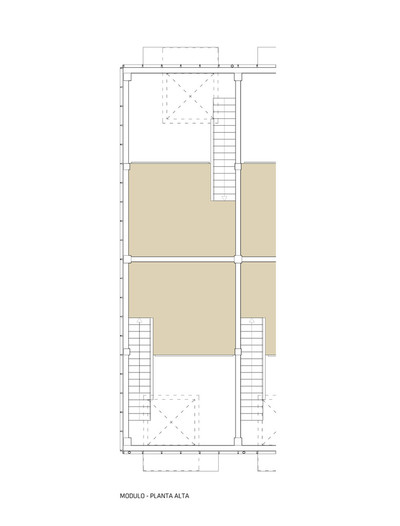

 Floor Plan

虽然我们的项目从一开始就受到推进器要求的制约，但我们认为必须努力完成“海岸线”的建设。因此，我们设计了4座建筑物，它们构成了一个有序的海滨排列，而且还具有易于识别的半工业特性。

Although the development of our project was from the beginning conditioned by the requirements of the Promoter, we thought it was important to work on the idea of completing the “coastline”. Thus were designed 4 buildings that make up an orderly oceanfront alignment and that also have an easily recognisable semi-industrial identity.

 © Xurxo Lobato

c.Xurxo Lobato

在低成本建筑的约束条件下，这一特性得到了两个独特方面的支持。一是在储存设施中引入自然光，由于功能和安全原因，这些设施必须关闭。位于每个房舍入口的玻璃和金属板材立方体同时是天窗、自然通风元件和每个商店的标识符。

Within the constraints characterising a low cost construction, this identity is supported by two unique aspects. One is how natural light is introduced in a storage facility that for functional and security reasons necessarily has to be closed. A glass and sheet metal cube located on the access of each premises is at the same time a skylight, natural ventilation element and an identifier of each store.

另一点值得注意的是建筑的覆层。根据促进者的要求，寻找一个解决办法，以避免涂鸦在墙上，一个外壳与一个扩大的镀锌钢网已建立在一个混凝土砌块建设。膨胀网格的透气性、与块体的分离以及深红色块覆层与金属网灰釉之间的色差，使表面能够根据光照的角度和入射时间，根据白天或一年的时间变化其外观。

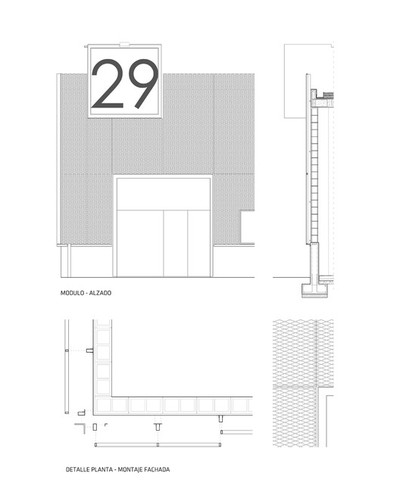

The other point worth noting is the cladding of the buildings. Based on the Promoter's request to find a solution that avoids graffiti on the walls, an enclosure with an expanded galvanised steel mesh has been built on a concrete block construction. The permeability of the expanded mesh, the separation from the block and the colour difference between the deep red block cladding and the grey glaze of the metal mesh, allow the surface to change its appearance depending on the perspective and the incidence of light, according to the time of day or year.

 © Xurxo Lobato

c.Xurxo Lobato

Architects Angel Cid y Jose Santos

Location Porto de Rianxo, España

Category Port

Design Team Silvia Diz, Marta Fernández, Maite Gómez, Clara Miguélez, Cristina Simón, Cristina Sánchez, architects. GAIA Enxeñería, facilities engineering. Miguel Nouche, draftsman.

Area 5933.0 sqm

Project Year 2009
