La Florida Metropolitan Hospital Clinic Murtinho+Raby Arquitectos (Pedro Murtinho, Santiago Raby) + BBATS Consulting - Projects SLP (Silvia Barbera, Jorge Batesteza, Cristóbal Tirado)
2015-04-13 12:00
架构师提供的文本描述。大都会临床医院由67 504平方米、391张病床、17间手术室和4间产房、112间咨询和程序、555个停车位和224个隔震室组成,可容纳1 500名工作人员。
Text description provided by the architects. The Metropolitan Clinical Hospital consists of 67,504 m², 391 beds, 17 operating rooms and 4 delivery rooms, 112 consultations and procedures, 555 parking spaces and 224 seismic isolators, to house 1,500 staff.

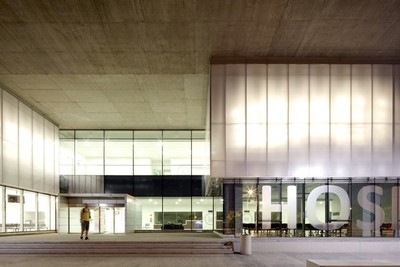

© Nico Saieh
c.Nico Saieh
该项目位于一个面积为16,800平方米的地块上,比例非常不平衡:350米长,50米宽,比例为7:1。出于这个原因,在功能上,由于程序的复杂性,占用参数,可建造性和允许高度,我们决定极端的城市参数,希望在绿色屋顶上尽可能多地恢复地面水平。
The project it's located on a 16,800 m2 plot with very unbalanced proportions: 350 m long and 50 m width in a ratio of 7 is 1. For this reason and in function to the complexity of the program, the occupation parameters, constructability and permitted height we decided to extreme the urban parameters looking to recover as much as ground level as we could on an on the green roof.
Courtesy of BBATS Consulting & Projects SLP, MURTINHO+RABY arquitectos
BBATS咨询公司
针对这片土地的局限性,我们选择了两种策略:在容积箱中进行规划聚类,目的是恢复街区的范围,以及立面的倒退,将人行道改造成公共长廊,从而为建筑创造一个序幕。
In response to the limitations of the land, we chose two strategies: programmatic clustering in volumetric boxes, with the aim of recovering the extent of the blocks, and setback of the facade, transforming the sidewalk into a public promenade, thus generating a prelude to building.

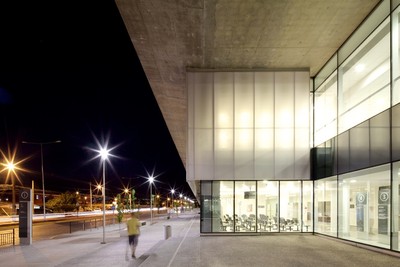

© Nico Saieh
c.Nico Saieh
第一种策略是编写规划箱(精神病学、咨询、影像、紧急情况)的城市讲座,以四卷较小的篇幅阐述350米的立面。箱子之间有不同的进出医院的通道。这些方框检索在原地块中丢失的块的度量值。

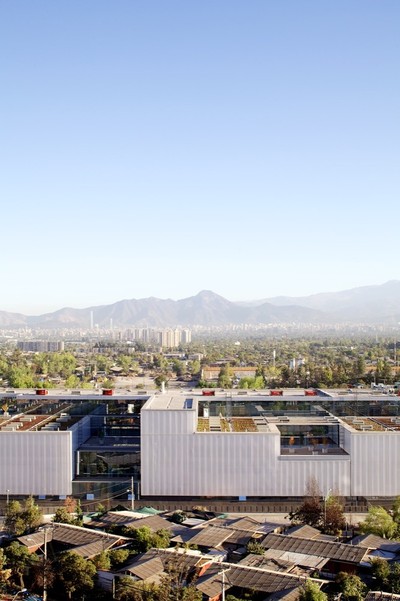

The first strategy is to generate the urban lecture of programmatic boxes (psychiatry, consultation, imaging, emergency) articulating the 350 m facade in four smaller volumes. Between the boxes are located the different access to the hospital. The boxes retrieve the measure of the blocks lost in the original plot.

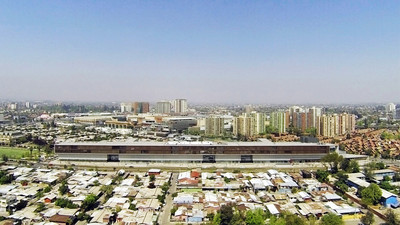

© Pablo Casals Aguirre
(Pablo Casals Aguirre)
第二种策略是,在医院悬臂式建筑的前两层北面出现挫折,为与一楼候诊室平行的人行道提供更大的空间。通过这种方式,我们把人行道变成了一个城市长廊,这强化了av的特性。弗罗伊兰拉各斯(前“公园”),是视觉链接的内部程序的建筑物。

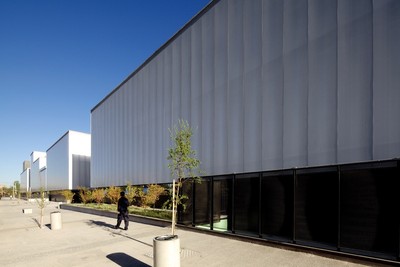

The second strategy is the setback to the north of the first two floors of the building under the cantilevered body of hospitalization providing a more generous dimension to the sidewalk that runs parallel to the waiting rooms on the first floor. In that way we transform the sidewalk into a urban promenade which reinforces the character of the av. Froilan Lagos (ex "The Park") and is visually linked to the internal program of the building.

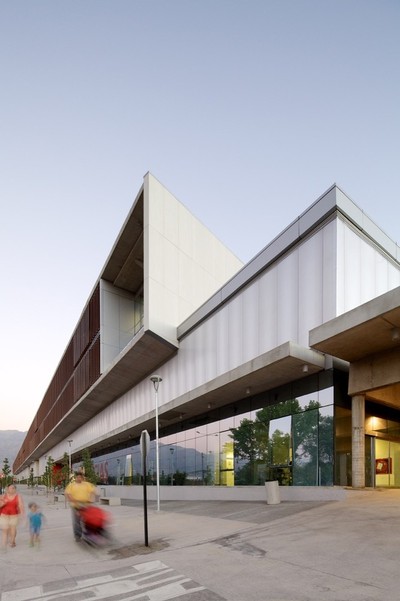

© Nico Saieh
c.Nico Saieh
加冕酒吧(3楼和4楼)建造的所有350米的正面,连接较低的盒子,建造一个广场与长廊和住宅的住院区。周边混凝土带限制了规划体积,使外观统一。这一要素为建筑物提供了350米地形的尺寸,并将其转化为从远处、A.Vespucio公路和高架城市轨道(地铁)可以看到的城市参考。

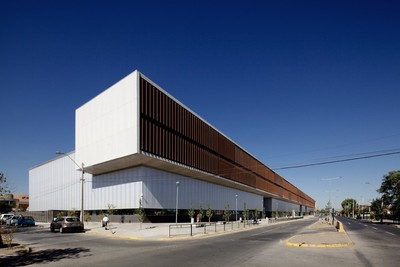

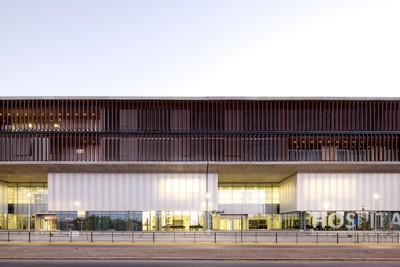

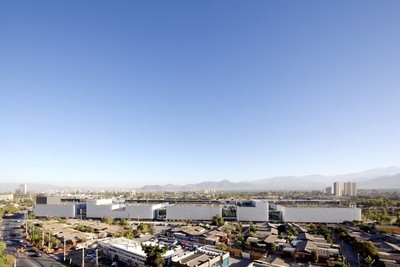

The coronation bar (3rd and 4th floor) build's all the 350 m facade, linking the lower boxes building a marquee to the promenade and houses the hospitalization areas. The perimetral concrete belt confines the programmatic volume giving unity to the facade. This element gives to the building the dimension of the 350 m terrain and transform it into an urban reference that can be seen from the distance, from the A. Vespucio highway and the elevated urban city rail (metro).

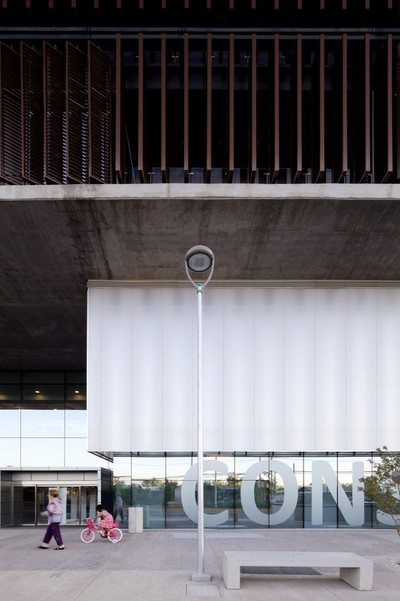

© Nico Saieh
c.Nico Saieh
三楼露台为绿色屋顶,种植不同种类的刚玉,耗水量低,维护适度。这是南面公共流通的住院吧的自然延伸,是一个休息和沉思的地方,在那里可以看到安第斯山脉和麦波谷。

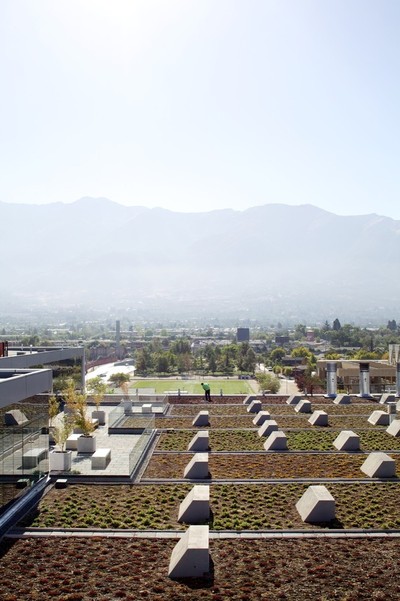

The third floor terrace is intended as a green roof, planted with different species of sedum, with low water consumption and moderate maintenance. This is the natural extension of the south public circulation of the hospitalization bar, a place for rest and contemplation at the point where the views open to the Andes mountains, and the valley of Maipo.
Architects BBATS Consulting & Projects SLP (Silvia Barbera, Jorge Batesteza, Cristóbal Tirado), Murtinho+Raby Arquitectos (Pedro Murtinho, Santiago Raby)
Location La Florida, La Florida, Santiago Metropolitan Region, Chile
Category Hospital
Project Manager Silvia Barbera, Jorge Batesteza, Cristobal Tirado
Partner in Charge Cristóbal Tirado
Project Management Silvia Barbera, Cristóbal Tirado, Santiago Raby
Area 67504.0 m2
Project Year 2013
Photographs Nico Saieh, Pablo Casals Aguirre
Manufacturers Loading...
