架构师提供的文本描述。桑威尔的新总部位于威尔士浦的内东部珀斯郊区，在尊重周边工业区美学的同时，提出了一个复杂、可持续的解决方案，以满足不断发展和挑战的客户简介。该表格旨在探讨商业办公室如何在坚定的工业环境中和谐地坐着，同时仍然提供与周围环境和自然光的舒适性的视觉连接。在美学上，它既是对邻近工厂类型的一种敬意，也是一种更新的形式，利用现有的工业语言和方言，同时将其重新想象为可持续性、舒适性和未来灵活性的视觉渗透灯塔。

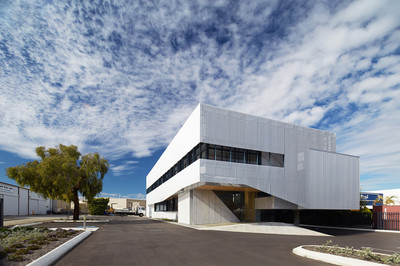

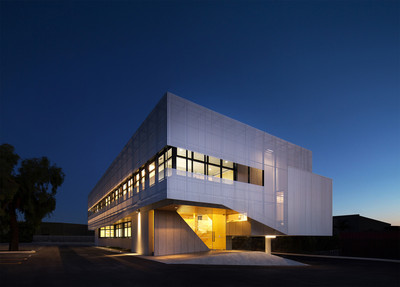

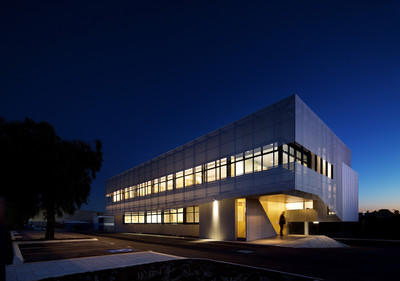

Text description provided by the architects. Located in the inner-Eastern Perth suburb of Welshpool, Sanwell's new headquarters presents a contemporary language whilst respecting the surrounding industrial precinct aesthetic, proposing a complex, sustainable solution to a constantly evolving and challenging client brief. The form seeks to explore the proposition of how a commercial office can sit harmoniously within a staunchly industrial context, while still providing visual connectivity to the surrounds and amenity to natural light. Aesthetically it functions as both an homage to and an updated form of the adjacent factory typology, utilizing the existing language and vernacular of the industrial, while re-imagining it as a visually permeable beacon of sustainability, amenity and future flexibility.

 © Robert Frith Acorn

罗伯特·弗里特·艾奥米

通过与客户的密切协作，原始项目的基本范围演变为包含更复杂和更完整的解决方案，以满足最终用户极其迫切的需求。建筑师和客户的这种协同的旅程导致了对传统的倾斜工业办公室的彻底的重新想象，导致了一个动态的分裂层次，悬臂式的办公室结构包裹着透气的铝砖太阳。

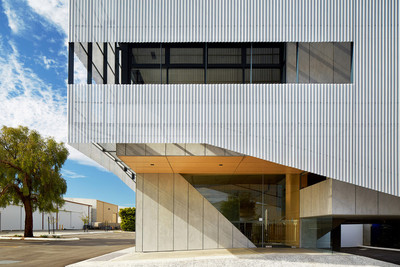

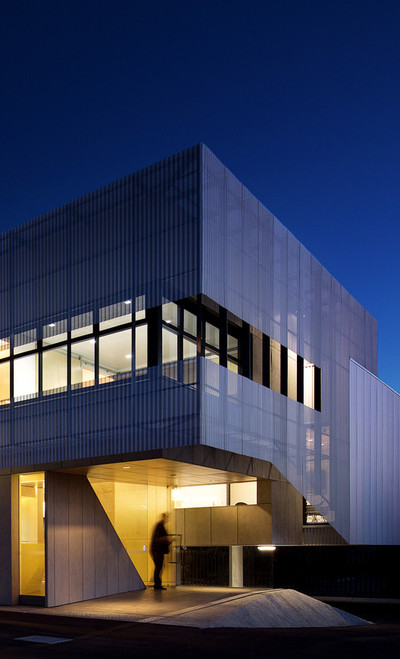

Through close collaboration with client, the bare-bones original project scope evolved to encompass a more complex and complete resolution to the extremely acute needs of the eventual users. This synergistic journey of both architect and client led to a radical re-imagining of the traditional tilt-up industrial office, resulting in a dynamic split level, cantilevered office structure wrapped in permeable aluminium brise soleil.

 © Robert Frith Acorn

罗伯特·弗里特·艾奥米

正式/非正式空间的二元性是通过大的公共领域来探索的，这鼓励了工作场所的偶遇和社会化。宽敞的开放空间为工作空间提供了广泛的可定制选择；灵活性使办公室能够适应不断变化的行业所需的客户需求。分层次规划的使用允许自然光渗透到整个室内，同时也鼓励沟通和视觉连接。突出的分裂层次的形式也与悬臂结合，以创造可用的，多用途的空间，在周围的景观。

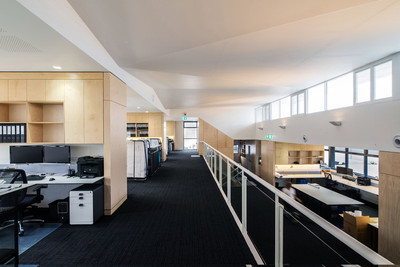

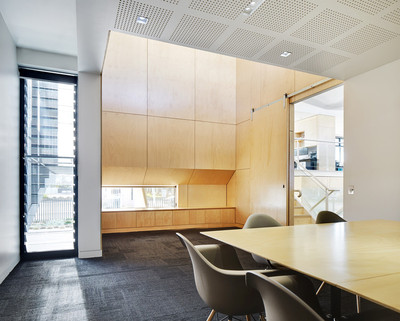

The duality of formal/informal space was explored through the large public breakout areas, encouraging chance encounter and socialization in the workplace. The generous open spaces ensure extensive customizability options for working spaces; a flexibility, which allows the office to adapt to suit the clients, needed in an ever-changing industry. The use of split-level planning allows natural light to permeate the entire interior, while also encouraging communication and visual connectivity. The prominent split-level form also combines with cantilevers to create usable, multipurpose spaces within the surrounding landscaping.

 First Floor Plan

一层平面图

设计团队与各个专业学科紧密合作，以实现其僵化的可持续性目标。可再生能源国际公司负责提供100块太阳能电池板，覆盖办公室屋顶，总发电量为30千瓦。加布里埃尔环境设计公司致力于热和声学解决方案，确保被动环境设计战略成功地为Sanwell工作人员提供最大限度的便利。

The design team worked closely with various specialty disciplines to achieve their rigid sustainability goals. Renewable Energy International was engaged to provide 100 solar panels, covering the roof of the offices and generating a total of 30kW. Gabriels Environmental Design were engaged for thermal and acoustic solutions, ensuring that the passive environmental design strategies were successful in providing maximum amenity for Sanwell staff.

 Courtesy of Braham Architects

布拉姆建筑师

通过在设计中强调灵活性和适应性，Sanwell办公大楼的预计寿命已大大增加。考虑到不断变化的技术和业务增长或结构调整，确保了建筑将保持相关性和价值，并与使用者一起成长和变化。

Through a strong emphasis on flexibility and adaptability within the design, the Sanwell Office building’s projected lifespan has been dramatically increased. The deliberate provision for both changing technologies and business growth or restructuring have ensured that the building will maintain relevance and value, growing and changing with its occupants.

由于定位困难，立面由波纹、穿孔阳极氧化金属薄板组成。薄片降低了70%的太阳增益到内部，但保留了办公室和外部之间的视觉连接。专为其使用寿命长，重量轻，维护低的特点，透水的正面是标有可操作的遮阳窗和百叶窗。这些与高水平开口，反向砖贴面和一个方向刻意选择，以最大限度地定期冷却西南风，使办公室控制其被动加热和冷却。此外，这个立面，连同分裂层次的规划，允许大量的自然光渗透到内部。对于其余所需照明，整个项目都安装了低能LED。

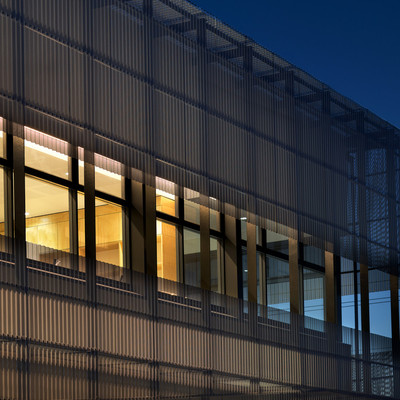

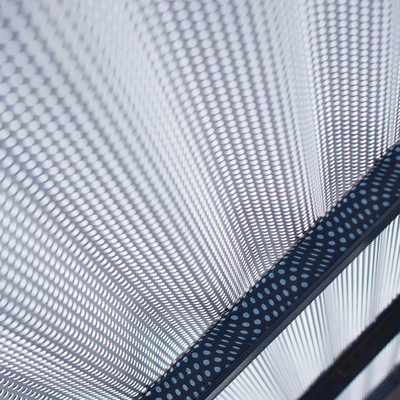

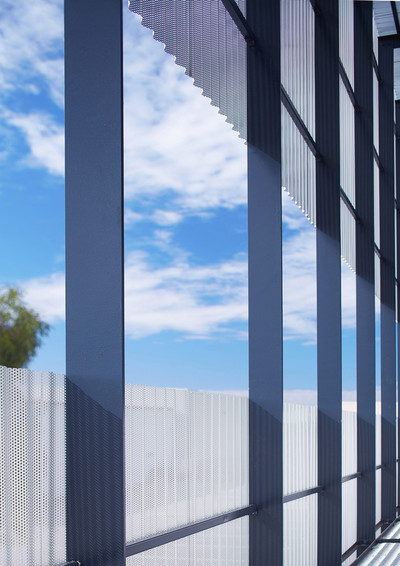

Due to the difficulty of the orientation, the facade is large composed of corrugated, perforated anodized metal sheeting. The sheeting reduces 70% of solar gain to the interior, yet retains the visual connectivity between office and exterior. Specifically chosen for it's long-life, lightweight and low maintenance properties, the permeable facade is punctuated by operable awning windows and louvres. These combine with high level openings, reverse brick veneer and an orientation deliberately chosen to maximize the regular cooling south-westerly breezes to give the office control over its passive heating and cooling. Additionally, this facade, along with the split-level planning, allows large levels of natural light to permeate the interior. For the remaining required lighting, low-energy LEDs were installed throughout the project.

 © Robert Frith Acorn

罗伯特·弗里特·艾奥米

另外的可持续性考虑是现场浸出排水系统，允许在现场处理所有废物，而低水树木和在建筑物周围植树可以节省更多的水。旅行设施的结束和广泛的自行车停车场鼓励居住者采用更健康、可持续的交通方式。在整个设计过程中，材料的环境认证也是核心，例如150毫米的夹层板屋顶，完全可回收的地毯，以及考虑低VOC的重要性贯穿始终。

Additional sustainability considerations were the on-site leach draining systems, allowing all waste to be disposed of on-site, while additional water is saved by the low-water trees and planting surrounding the building. The end of trip facilities and extensive bicycle parking encourage the occupants to adopt healthier, sustainable means of transport. The environmental credentials of materials were also central throughout the design process, such as the 150mm sandwich panel roofing, fully recyclable carpets, and consideration for low VOC materiality throughout.

 © Stephen Schneider

斯蒂芬·施耐德

Architects Braham Architects

Location 35 Division Street, Welshpool WA 6106, Australia

Category Office Buildings

Design Team Benjamin Braham, Katja Gavran, Anuar Azahari, George Shi, Siying Wong, Douglas Armstrong

Project Year 2014

Photographs Robert Frith Acorn, Stephen Schneider, Ben Price

Manufacturers Loading...
