Made to be Moved Arcgency

2015-05-25 22:00
架构师提供的文本描述。这个想法:
Text description provided by the architects. The idea:
雅致是一家致力于资源意识建筑的哥本哈根办事处。在从研究和项目中获得的关于如何组装和拆卸建筑物的知识的基础上,ARCGENCE开发了一个易于移动的建筑概念,同时仍然提供了永久性建筑的质量。更重要的是,这是一项挑战普遍浪费问题和传统建筑技术的预制式建筑实验;我们如何在适应粗糙和动态的斯堪的纳维亚气候的同时尽量减少能源消耗?在为创造性企业家创造理想的工作空间时,我们如何实现高度的灵活性和功能性?我们如何创造一个可持续的设计,优先考虑多样化和有趣的空间和良好的视觉质量和日光条件?我们怎么才能搬动大楼?
Arcgency is a Copenhagen office dedicated to Resource Conscious Architecture. Based on knowledge gained from research and projects on how to assemble and disassemble buildings Arcgency developed an architectural conceptthat is easily moveable while still offering the qualities of permanent buildings. More thanthat, it is an experiment in pre-fab architecture that challenges universal waste issues and traditional building techniques; How do we minimize energy usage while adapting to the rough and dynamic Scandinavian climate? How do we implement a high level of flexibility and functionality in the creation of ideal workspaces for creative entrepreneurs? How do we create a sustainable design that prioritizes diverse and interesting spaces with great visual quality and daylight conditions? How do we make a building move?

如何做到:
How it is done:
破旧的集装箱堆放在三层楼高的一系列最小的现场冲击柱上。集装箱是一种超级优化的产品,精炼为成本效益,坚固耐用。它符合国际运输标准,可以在任何地方运输和设置,使我们能够直接重复使用。如果要设计一个规格相同的新建筑部件,既昂贵又费时。

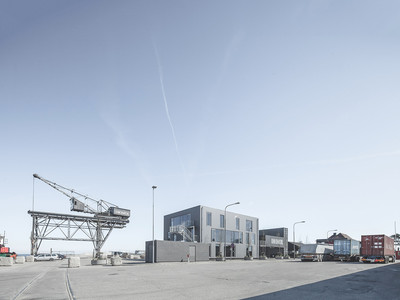

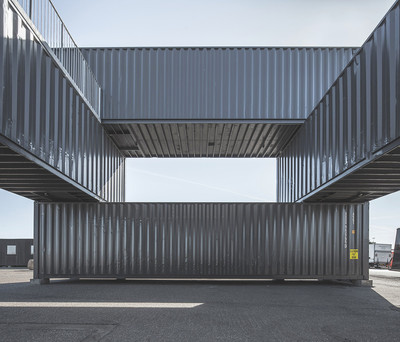

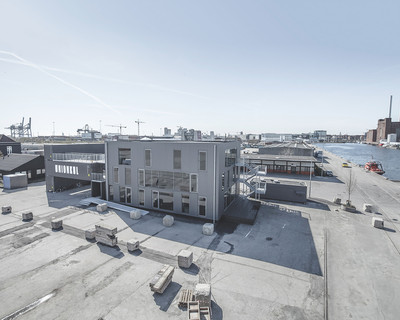

Worn-out shipping containers are stacked three stories high on a series of minimal site impact pillars. The container is a super optimized product, refined to be cost-effective, strong and durable. It fits international transportations standards and can be shipped and set up anywhere, enabling us to practice direct reuse. If a new building component with the same specifications were to be designed, it would be both expensive and time consuming.
 © COAST_ Rasmus Hjortshøj
c海岸-Rasmus Hjortsh j
容器之间的跨度用作主工作区函数的灵活空间。容器内部可用于会议室、车间和仓库等次要功能。原始容器结构在两天内就建立起来了。容器堆叠用高性能的绝缘夹层板包裹,也起到蒸汽屏障和包层的作用。它们被直接固定在集装箱框架中-窗户、屋顶元素和室内楼板也是如此。可见装置用于供水、供电和取暖,便于安装和拆卸。

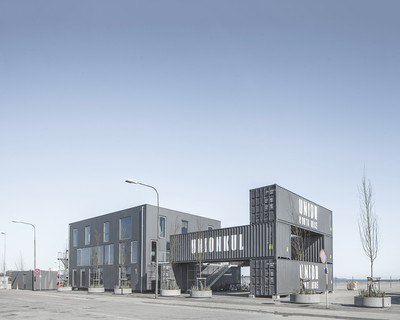

The span between the containers is utilized as flexible spaces for primary workspace functions. The interiors of the containers can be used for secondary functions such as meeting rooms, workshops and storage. The raw container structure is set up in just two days. The container stack is wrapped with high performing insulated sandwich panels, also functioning as vapour barrier and cladding. They are bolted directly into the container frame - as are the windows, roof elements and interior floor slabs. Visible installations are used for water, electricity and heating, making it easy to set up and take down.

建筑。
The architecture.
该体系结构基于一套简单的原则:原始美学,不同的空间大小,通过建筑物的视觉连接层和大白天条件。
The architecture is based on at simple set of principles: Raw aesthetics,differentiated spatial sizes, layers of visual connections through the building and great daylight conditions.
 © COAST_ Rasmus Hjortshøj
c海岸-Rasmus Hjortsh j
内部表面和结构的外观和感觉是由集装箱决定的。在海上度过的10-14年的艰难岁月在集装箱上留下了印记。作为建筑的组成部分,他们被赋予来世,他们的凹痕和缺陷被认为是建筑的一部分。除了一层光滑的灰色涂层外,容器保持在原来的状态;功能门、原地板和波纹表面。涂层创造了一个统一的外观,并加强了结构细节。

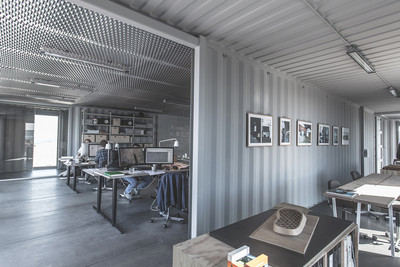

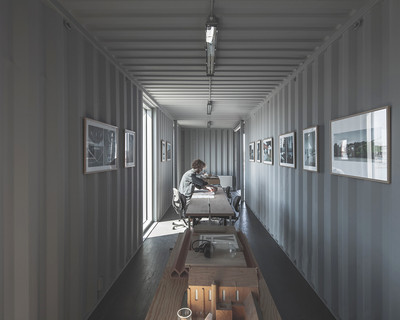

The look and feel of the interior surfaces and structure is dictated by the shipping containers. The 10-14 rough years at sea has left their mark on the containers. As a building component they are given an afterlife and their dents and imperfections are acknowledged as part of the architecture. Except for a matte grey coating the containers are kept in their original states; Functioning doors, original floor and corrugated surfaces. The coating creates a uniform look and enhances the structural detailing.
 © COAST_ Rasmus Hjortshøj
c海岸-Rasmus Hjortsh j
从容器内的40英尺长的空间到容器之间的三重空间,不同的空间体验和尺度带来了不同的用途。特别是更大的空间打开了各种各样的可能性和视觉连接通过建筑物。外部的景色总是存在的,甚至整个建筑都是如此。这创造了深度,透视和一种连接感的房子。不同的层次和大的内部窗口使我们有可能创造出在协作氛围中工作的感觉。居住在建筑物不同部分的团队可以感觉到彼此之间的联系,同时又不互相打扰。

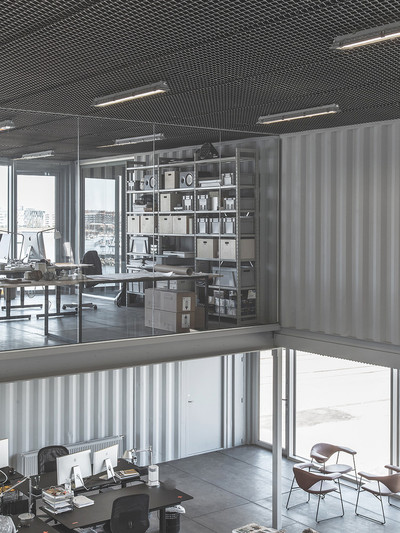

From the 40 feet long spaces inside the containers to the triple high spaces between them; the different spatial experiences and scales invite to different uses. Especially the larger spaces open up to a variety of possibilities and visual connections through the building. Views of the exterior are always present; even across the building. This creates depth, perspective and a feeling of connectivity in the house. Different levels and large interior windows make it possible to create the feeling of working in a collaborative atmosphere. The teams inhabiting different parts of the building can feel connected while at the same time not disturbing each other.

大的全高度开口让自然光贯穿整个建筑的深度。对人造光的需求减少到最低限度。日光增加了内部的细节,阴影在波纹的集装箱墙壁上播放。它带领你穿过狭小的空间到开放的计划,并吸引你的目光跨越不同的层次和建筑。三高空间让世界四面八方都能发光。因此,所有的等级都被赋予不同的混合光,而不需要在所有四个正面窗口。这对于防止过热和消除空调的需要至关重要。大空间中的天花板上有穿孔的铝,反映了滨水区的光线。声吸收剂被放置在穿孔表面之上,创造了一个完美的声学环境。

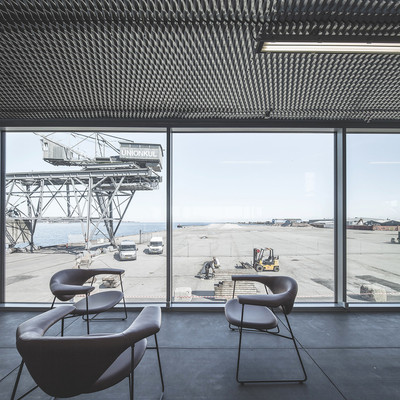

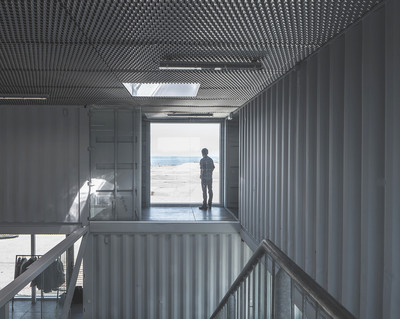

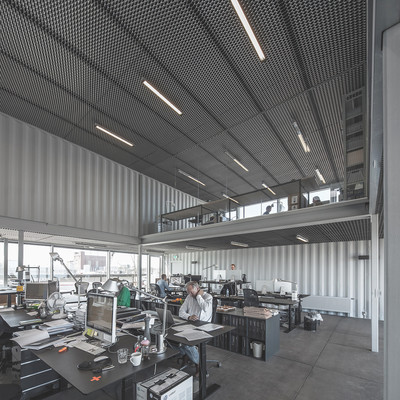

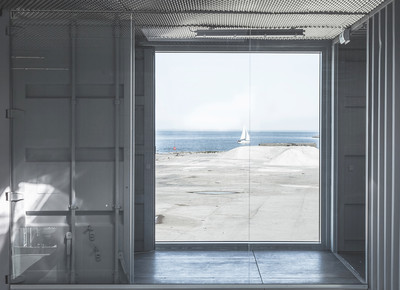

Large full height openings let natural light pierce deep into the building all through the day. The need for artificial light is minimized. The daylight adds detail to the interior as shadows play across the corrugated container walls. It leads you through narrow spaces to the open plans and draws your eye across different levels and through the building. The triple high space lets light in from all four corners of the world. As a result all levels are given varied mixed light without the need for windows in all four facades. This is crucial to prevent overheating and eliminate the need for air-conditioning. The ceilings in the large spaces are cladded with perforated aluminium that reflect light from the waterfront. An acoustic absorbent is placed above the perforated surface, creating a perfect acoustic environment.
 © COAST_ Rasmus Hjortshøj
c海岸-Rasmus Hjortsh j
主要可持续特点:
Key sustainable features:
为斯堪的纳维亚气候而设计。-10至25次低能耗:41千瓦时/平方米以下。年高度绝缘的正面面板。300毫米U值:0,13W/M2K。为拆卸而设计的。90%的可回收材料。自然通风。3层窗户,内置遮阳膜。最低限度的场地影响支柱。
Designed for Scandinavian climate. – 10 to + 25 Low energy usage: Below 41 kWh/m2 pr. year. Highly insulated facade panels. 300mm. U- value: 0,13 W/m2K. Designed for disassembly. 90 % recyclable materials. Naturally ventilated. 3-layered windows with build in shading film. Minimal site impact pillars.
 © COAST_ Rasmus Hjortshøj
c海岸-Rasmus Hjortsh j
