© Rafael Gamo

拉斐尔·贾莫

架构师提供的文本描述。这所位于JuricaCampestre社区的周末别墅试图通过将其核心程序整理成4个主要卷来重新定义静修家园的概念。这座房子被认为是一个中央住宅和三个独立的套房或卷。这种模块的配置使房子的中央核心成为一个广场，在那里你可以享受各种各样的户外活动。房子的这些主要空间创造了一种内部-外部关系，室内与自然及其周围环境有很好的联系，从而创造了自己的环境。

Text description provided by the architects. This weekend house located in the Jurica Campestre community seeks to redefine the concept of a retreat home by defragmenting its core program in 4 main volumes. The house is conceived as a central house and 3 independent suites or volumes. This configuration of modules makes the house central core a plaza where one can enjoy a variety of outdoor activities. These main spaces of the house create an interior-exterior relationship where the interior is well connected to nature and its surroundings, creating this way its own context.

 Floor Plan

这座房子从一开始就被放置在5米乘5米的电网上，这有助于人们在创作过程中定位并具有灵活性，在这个过程中，人们可以重新配置各卷之间的关系。Casa 4.1.4这个名字来源于它由一个中央住宅、4个主卷、一个中央广场和四个广场或露台组成的聚集地。

The house form the beginning was placed on a 5m by 5m grid and this helped position and have flexibility during the creative process where one could reconfigure the relationship between volumes. The name Casa 4.1.4 derived from its massing consisting of one central house, 4 main volumes, one central plaza and four plazas or patios.

 © Rafael Gamo

拉斐尔·贾莫

该项目采取了一个起点，把房子的4个组成部分在现场。主住宅面积约155平方米，住在一个中央庭院，作为厨房生活、餐饮和主卧室等节目的分配，以及过滤所有公共区域的光线。只有25平方米的套房(立方体)营造了一个有趣的阴影和场地深度，并在中央广场周围设置了自己的环境，这些房间分配了一个卧室、一个浴室、更衣室、内裤咖啡空间，这样它们就可以独立于房子之外运作，并提供隐私。

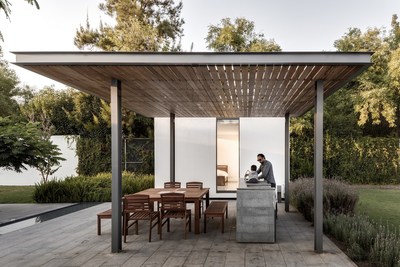

The project takes a starting point by placing the 4 components of the house on the site. The main house of approximately 155 sq.meters, is lived from a central courtyard that acts as a  distribution of program such as kitchen living, dining, and main bedroom, as well as filters light to all the public areas. The suites (cubes) of just 25 sq.meters makes a playful shadow and depth of field and  creates its own context by being placed around the central plaza, these rooms allocate a bedroom, a bath, dressing room, panty-coffee space so they can operate independently form the house and provide privacy.

 Axonometric

这些书有通畅的观点，在它们之间产生亲密关系。建筑与景观之间的这种关系导致了植被多样性领域的出现。

These volumes having unobstructed views generate intimacy among them. This relationship between architecture and landscape results in a field of vegetation diversity.

 © Rafael Gamo

拉斐尔·贾莫

Architects AS/D Asociación de Diseño

Location Santiago de Querétaro, Mexico

Category Houses

Architectural Design Paola Morales Orantes + Fernando Velasco RiveraTorres

Area 270.0 sqm

Project Year 2014

Photographs Rafael Gamo
