Creche des Orteaux Avenier Cornejo Architectes

2015-06-25 05:00

 © Julien Lanoo

朱利安·拉诺

架构师提供的文本描述。建筑公司Avenier Cornejo刚刚在巴黎第20区为66名儿童建造了托儿所。托儿所位于新的Fréquel Fontarabie区，公共通道与广场相交。这是一座独特的建筑，增加了邻里的身份。托儿所是儿童在自己家庭之外最先发现的地方之一，需要为儿童的成长和繁荣提供一种令人放心的氛围。托儿所在那里既是为了保护儿童，也是为了帮助他们发现周围的世界。

Text description provided by the architects. The architectural firm, Avenier Cornejo, has just completed a crèche for 66 children in the 20th arrondissement of Paris. The crèche is located in the new Fréquel Fontarabie district, where the public pathway meets the square. It is a unique building which adds to the identity of the neighbourhood. Being one of the first places that children discover outside their own family unit, a crèche needs to provide a reassuring atmosphere where children can grow and prosper. The crèche is there both to protect children and help them discover the world around them.

 © David Foessel

(C)David Foessel

法塔德

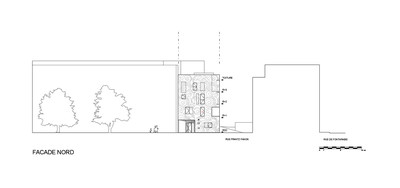

Façade & Materials

其目的是设计一座精致而谨慎的建筑，将其整齐地融入三角地块。这座建筑是一个精致的花边外观，形成一个保护层的穿孔金属面板，旨在统一，装饰和过滤。这个微妙的层对光的变化有反应。由于声和热的原因，建筑物的结构是由混凝土和内衬绝缘和金属包覆。

The aim was to design a delicate and discreet building that would fit neatly into the triangular plot of land. The building is clad in a fine lacework façade that forms a protective layer of perforated metal panels designed to unify, adorn and filter. This delicate layer reacts to changes in light. For acoustic and thermal reasons, the structure of the building is made of concrete and lined with insulation and metal cladding.

 © Julien Lanoo

朱利安·拉诺

穿孔金属覆盖创造了一系列的照明效果，并作为过滤器的房间后面。花园和露台很容易通过大玻璃门到达。为了遵守当地城市规划条例和满足设计规范，托儿所分为两层。布局考虑到邻近的庭院，而主房间位于建筑物的阳光面。

The perforated metal covering creates an array of lighting effects and acts as a filter for the rooms behind it. The garden and terraces are easily accessible through large glass doors. In order to comply with local urban planning regulations and fulfil the design specifications, the crèche is spread over two floors. The layout takes the neighbouring courtyards into consideration, while the main rooms are located on the sunny side of the building.

 © Julien Lanoo

朱利安·拉诺

托儿所的入口处位于广场所在的北面。电梯位于入口大厅。中央走廊的设计是为了吸收建筑物不规则的角度。考虑到建筑物的长度，在计划中建立了一个庭院，为服务设施提供天然阳光。露台还提供温度调节，特别是在夏天。

The entrance of the crèche is on the northern façade, where the square is located. The lift is situated in the entrance hall. The central hallway is designed to absorb the irregular angles of the building. Given the length of the building, a patio was built into the plan to provide natural sunlight for the service facilities. The patio also provides thermoregulation, particularly in summer.

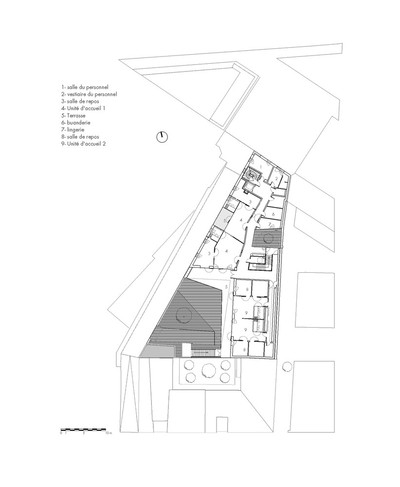

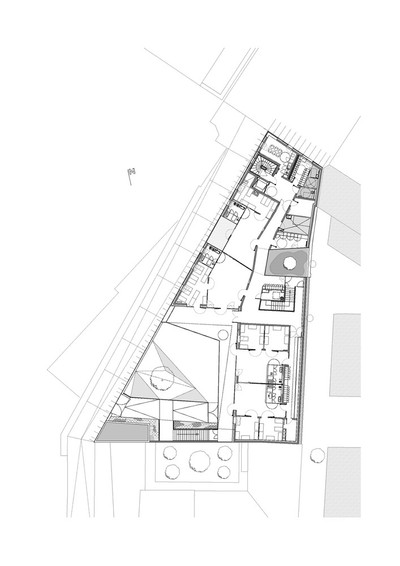

 Ground Floor Plan (200)

底层图则(200)

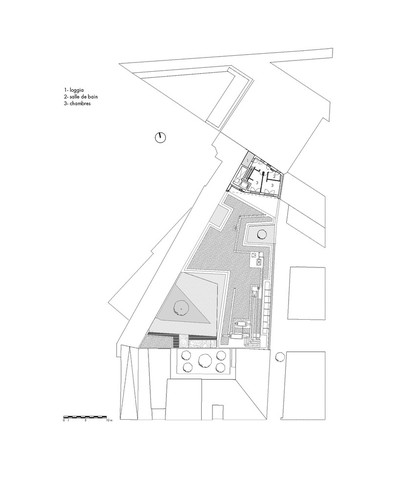

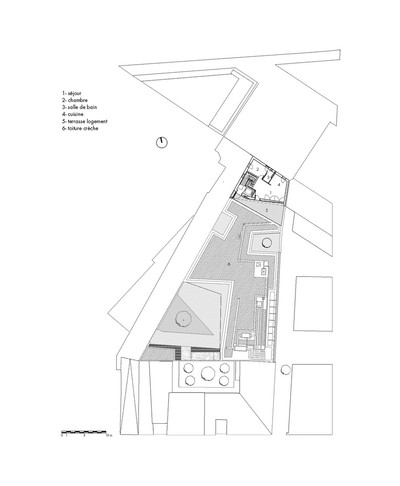

服务设施需要送货通道，位于走廊沿线，与其他房间交替使用。小区后面的花园种植了一棵枫树和各种灌木丛，并提供和出口到公共通道。可以在二楼和三楼的一间公寓里找到起居室。这套公寓既有北面也有南面。它可以通过单独的入口进入，但与托儿所共用同一部电梯。

The service facilities, which require access for deliveries, are located along the hallway, alternating with the other rooms. The garden area at the back of the plot is planted with a maple tree and various bushes, and provides and exit to the public pathway. The living quarters can be found in an apartment on the 2nd and 3rd floors. This apartment has both a north and a south façade. It can be accessed via a separate entrance, but shares the same lift as the crèche.
