Paula Souza Center Spadoni AA + Pedro Taddei Arquitetos Associados
2015-07-12 13:00
© Nelson Kon
(Kon)
架构师提供的文本描述。宝拉·苏扎中心是圣保罗州负责技术教育的机构,共有268所学校和学院。它的社会相关性使邦政府得以在其战略中使用它,在圣保罗市中心地区的Luz社区占领中占一定的一部分。
Text description provided by the architects. The Paula Souza Center is the institution of the State of São Paulo responsible for technical education, containing 268 schools and colleges. Its social relevance took the State Government to use it in its strategy to take definite part of the Luz neighborhood occupation, at the central region of the city of São Paulo.

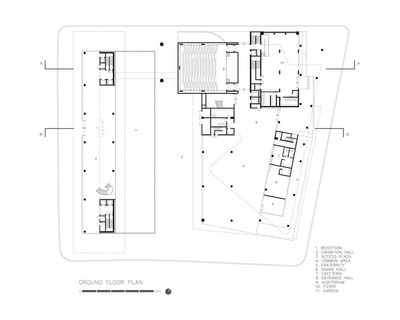

Ground Floor Plan
该项目由政府购置一座面积超过7.000平方米的大楼,最初由仓库、破旧的小房子和一栋七层楼高的建筑组成,这仍然是最后一套建筑中唯一的预先存在的建筑。这是一个独特的机会,与一个完整的街区在城市中心,从而颠倒了该地区的土地逻辑定义的小块土地。
The project was born with the acquisition, by the Government, of a block with over 7.000 m2, originally occupied by warehouses, small-deteriorated houses and a seven-storey building -- which remained as the only pre-existent structure incorporated to the final architectural set. It was an unique opportunity to work with a full block at the urban city center, thus inverting the region's land logic defined by small lots.
© Nelson Kon
(Kon)
在这样的城市条件下,我们的想法是在这个城市最密集的区域之一建立一个公共空间,一个广场可以整合两种最重要的设备:保罗·苏扎中心总部和一所技术学校。
For such urban condition, the idea was to create a public space at one of the densest sectors of the city, a sort of square that could integrate the two most important equipment which composed the program: the Paulo Souza Center headquarter and a technical school.
Section AA
AA节
总部大楼由一层长77米5米的层叠体构成,集中了五层的行政管理活动,并在一楼的遗址考古博物馆与街道相联系。其余的建筑都与学校相连;它们形成了一个更多的集合,在广场上的许多层都有清晰的表达,引发了一条长廊-就像街道进了街区一样。
The headquarter building, defined by a laminar body of 77,5 meters length, gathers the administrative activities in five floors and a museum on the site's archeology on the ground floor relating itself to the street. The remaining buildings are connected to the school; they form a more plural set that articulates itself in many levels over the square, provoking a promenade -- as if the street went inside the block.
© Nelson Kon
(Kon)
结构,主要是钢筋混凝土,是设计的组织要素,有时以一种表现性的方式出现-比如在悬空的庭院或学校曲折的阁楼的支撑下。基本体系由框架板组成,平均截面为40 cm,大写为45 cm。金属结构中的一些元素脱离了大量的物质:屋顶、走道和博物馆的阁楼。
The structure, majorly in reinforced concrete, is the organizing element of the design, sometimes appearing in an expressive manner -- as in the support of the suspended court or the school's sinuous mezzanine. The basic system is composed of slabs in frame with average section of 40 and 45cm with capitals. Some elements in metallic structure detach themselves from the large masses: the roofs, the walkway and the museum's mezzanine.
该项目的核心要素之一是两个屋顶,在30米的高度连接体积,最多允许在附近。从技术上讲,在这两个屋顶上,结构是由两个纵梁组成,截面为0,95m,跨度可达30米。
One of the central elements of the project are the two roofs that connect the volumes at a height of 30 meters, maximum allowed for the neighborhood. Technically speaking in both roofs the structure is composed by two longitudinal steel beams with 0,95m section -- and which cover varying spans of up to 30m.
© Nelson Kon
(Kon)
插入一台有意成为城市变压器的设备无疑是一种押注,尤其是因为它仍然是一项与该地区更广泛的城市规划脱节的建筑。尽管如此,我们相信,这座城市是通过其重要的事实而形成的-这里我们包括了建筑。
The insertion of an equipment which intends itself to be a transformer of urbanity is certainly a bet, specially as it still is a construction disconnected from a wider urban plan for the region. We believe, nevertheless, that the city constitutes itself through its significant facts -- and here we include the architecture.
© Nelson Kon
(Kon)
Architects Spadoni AA, Pedro Taddei Arquitetos Associados
Location R. dos Andradas, 140 - Santa Ifigênia, São Paulo - SP, Brazil
Category Cultural Center
Architects in Charge Francisco Spadoni + Pedro Taddei Neto
Area 29490.0 m2
Project Year 2013
Photographs Nelson Kon
