Solstice Point Nick Baker Architects

2015-07-24 17:00

 © Hamish Park

哈米什公园

架构师提供的文本描述。尼克贝克建筑师最近在德兰西街86至88号完成了一项混合用途计划，其中包括14套公寓、5x3张、4x2张和5x1张，以及500平方米的办公用房。

Text description provided by the architects. Nick Baker Architects have recently completed a mixed use scheme at 86-88 Delancey Street containing 14 flats, 5x3bed, 4x2bed and 5x1 bed along with 500sqm of office accommodation.

 Ground Floor Plan

这幅位于德兰西街86-88号的土地紧邻卡姆登镇中心，毗邻公园路邻里区，位于坎登镇自然保护区内。德兰西街八十四号起的物业为二级梯田。要取得规划上的同意，必须与当地居民团体和英国文化遗产组织进行重要协商。

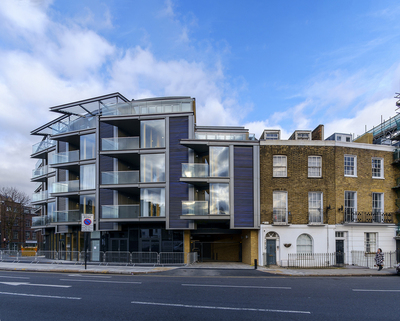

The site at 86-88 Delancey Street lies immediately adjacent to the town centre of Camden, next to the Parkway Neighbourhood zone and within the Camden Town Conservation Area. The properties from 84 Delancey Street onwards are Grade II listed terraces. Significant consultation with local residents groups and English Heritage was required to secure planning consent.

 © Hamish Park

哈米什公园

作为伦敦至伯明翰铁路线的少数历史过境点之一，该站点是位于摄政公园和坎登镇的充满活力的核心之间的“门户”位置。

As one of a limited number of historical crossing points over the main London to Birmingham railway line, the site is a ‘gateway’ location between Regents Park and the vibrant core of Camden Town.

 First Floor Plan

一层平面图

该计划包括一座5层高的大厦，面向德兰西街和公园路，内有2层楼高的大教堂和办公室，建造了一个后院。当建筑物从现有的路面边缘倒退5米时，通往公园道路的城市境界得到了极大的改善。

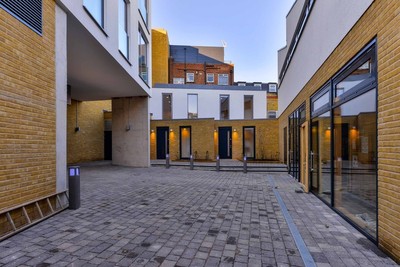

The scheme comprises a 5 storey block facing Delancey Street and Parkway with 2 storey maisonettes and offices creating a rear courtyard. The urban realm to Parkway is greatly improved as the building sets back 5m from its existing pavement edge.

 © Hamish Park

哈米什公园

场下的网络铁路隧道对整个建筑的建设提出了一些重大挑战。7m弯曲悬臂由混凝土框架支撑，而混凝土框架又通过声“弹簧”将其与地基隔开。

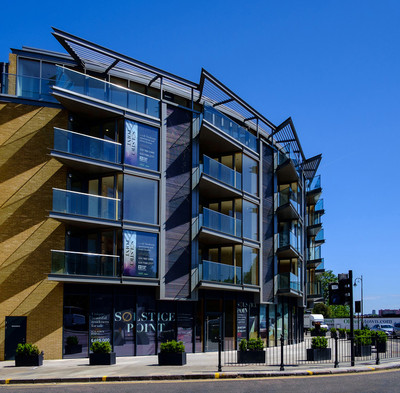

The Network Rail tunnel beneath the site presents a number of significant challenges to the construction of the overall building. The 7m curved cantilever is supported by a concrete frame which in turn is separated from the foundations by acoustic 'springs'.

 Third Floor Plan

三层平面图

南面工地的城市特点引起了对该建筑的可持续设计反应，在南/南弯面采用了92平方米的太阳能热板，为建筑物提供70%的热水需求和20%的住宅集中供暖。绿色和棕色屋顶确保了这一市中心地区的保水能力。该计划将实现BREEAM非常好和守则的可持续家园三级。

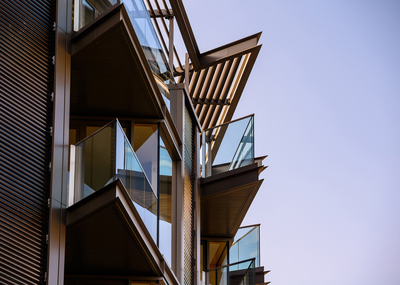

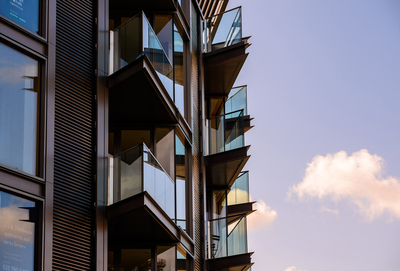

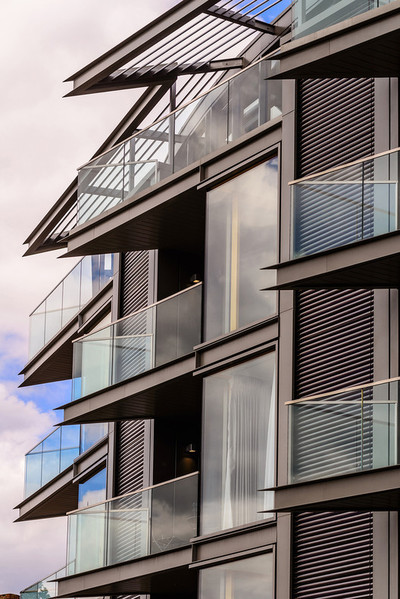

The urban characteristics of the south facing site have provoked a sustainable design response to the building by the introduction of an “environmental skin” with 92sqm of solar thermal panels on the south/south west curved façade designed to provide 70% of the building’s hot water requirements and 20% of the residential central heating. Green and brown roofs ensure water retention in this inner city area. The scheme will achieve BREEAM very good and Code for Sustainable Homes Level 3.

 © Hamish Park

哈米什公园

通过创造性和创新性的回应，最初似乎是城市的限制，设计团队创造了一个新的动态和可持续的建筑特征，在这个充满挑战的角落卡姆登镇。

By responding creatively and innovatively to what initially appeared to be urban constraints the design team has created a new dynamic and sustainable architectural feature in this challenging corner of Camden Town.
