架构师提供的文本描述。这所大学坐落在雷塞克的一条主要街道上，就在城市的中心。大学校园总面积为4.2公顷。校园被苏联时代的住宅项目所包围，这些建筑大小不一，没有任何合理的结构，但校园的一部分可以追溯到20世纪20年代，是一个具有历史意义的里程碑。拉脱维亚建筑师PaulsKundzins于1927年为教师学院设计了中心建筑。早在20世纪20年代，这座建筑就被一个公园包围了，从那时到今天，一些树一直保留着。新绿色植物的结构是通过整合现有的树木，以及建筑物入口处的新装饰植物组合而形成的，这标志着正门的前轴。广场是新绿化概念的核心元素，因为它展示了项目的轮廓-工程。

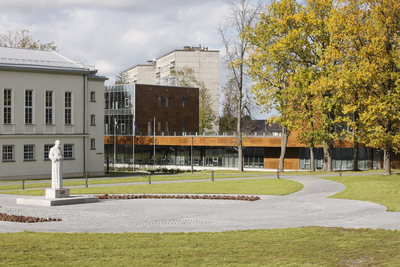

Text description provided by the architects. The University is located on one of the main streets of Rezekne, at the very center of the city. The total area of university campus is 4.2ha. The campus is surrounded by Soviet era housing projects – groups of buildings in various sizes that lack any logical structure, but part of the campus itself dates back to 1920s and is a historical landmark. Latvian architect Pauls Kundzins designed its central building in 1927 for the use of Teachers Institute. Back in 1920s the building was surrounded by a park and some trees have remained from that time to this day. The structure of the new greenery is formed by integrating the existing trees, as well as new decorative plantings groups at the building’s entrance areas, which marks the front axis of the main entrance.  The square is a core element of the new greenery concept, as it illustrates projects profile specifics – engineering.

 © Ansis Starks

安西斯·斯塔克斯

工程系大楼只是任内大学校园长期发展计划的第一步。它还设想为经济系、体育中心、学生宿舍和几个辅助基础设施建筑建造一座新大楼。

Department of Engineering building is only the first step in the long-term Rezekne university campus development program. It is also envisioned to construct a new building for the Department of Economics, sports center, student residential accommodations and several supporting infrastructure objects.

 Floor Plan

新大楼位于校园的北部。它与周围居民区接壤。工程系是一座三层楼高的建筑，有一个有功能的地下室.它由一个伸展的一层的体积和三层的体积在每一端。教室、礼堂和一些实验室设在地下室和一楼。二楼和三楼设有行政办公室、图书馆和其他实验室。将三层楼高的两层空间连接起来的屋顶区域，是为学生和教职员工设计的娱乐空间。

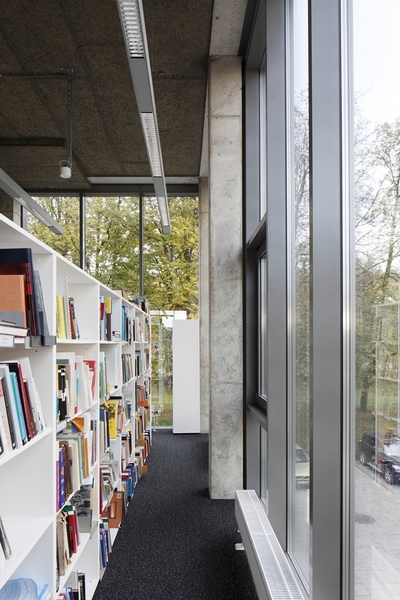

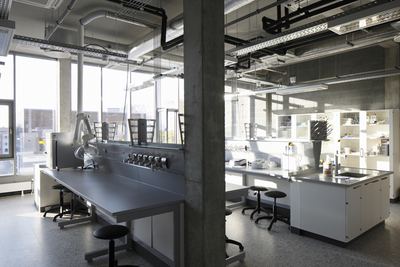

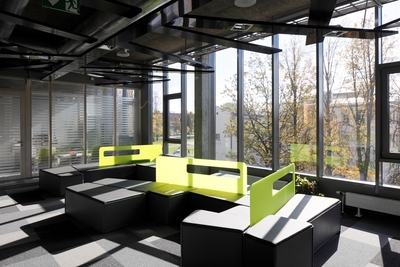

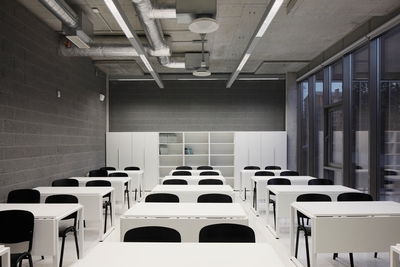

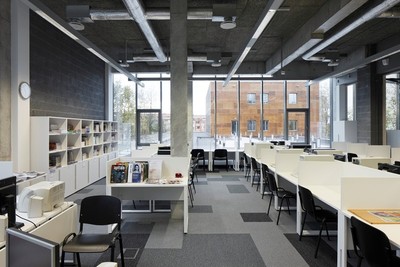

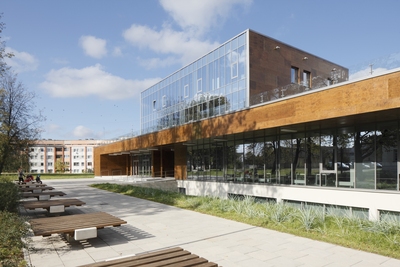

The new building is located in the northern part of the campus. It borders the campus from the surrounding residential area. The Department of Engineering is a three-storey building with a functional basement. It consists of a stretched one-storey volume with three-storey volumes on each end. Classrooms, auditoriums and some laboratories are located in the basement and on the first floor. The second and the third floor contain administrative offices, the library and the rest of the laboratories. The roof area that connects both three-storey volumes is designed as a recreational space for students and staff.

建筑结构由钢筋混凝土承重柱、梁、墙和天花板组成.岩土工程情况确定采用柱下柱式浅基础和墙下条形基础。圆形剧场式礼堂上方的天花板是由预制钢筋混凝土面板(H)400毫米制成的。建筑物在钢筋混凝土板上有一个浅屋顶。

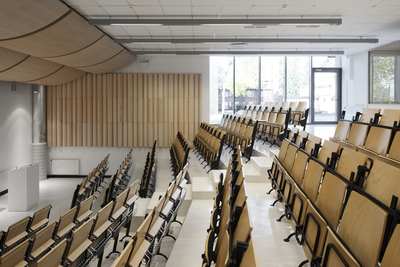

The building structure is made of reinforced concrete load-bearing columns, beams, walls and ceilings. Geotechnical situation determined to use post-type shallow foundations under columns and strip foundations under the walls. Ceiling above the amphitheater type auditorium is made of prefabricated reinforced concrete panels (h) 400mm. Building has a shallow roof on reinforced concrete slab.

 © Ansis Starks

安西斯·斯塔克斯

正面是覆盖聚氨酯涂层色调胶合板，使不规则的交叉模式。外部螺旋逃生楼梯是用钢做的，为了安全起见，梯子周围有一个钢架和一个保护网。室内被有意暴露的建筑结构框架和工程通信的元素加强。

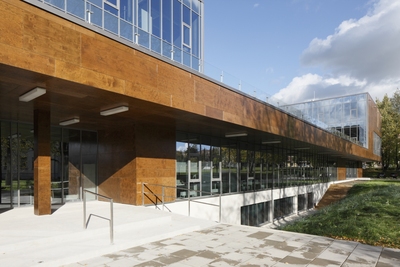

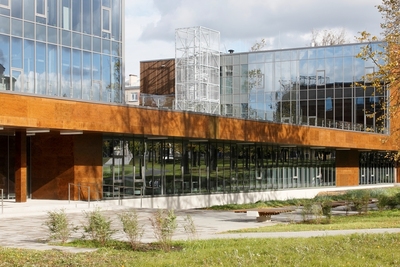

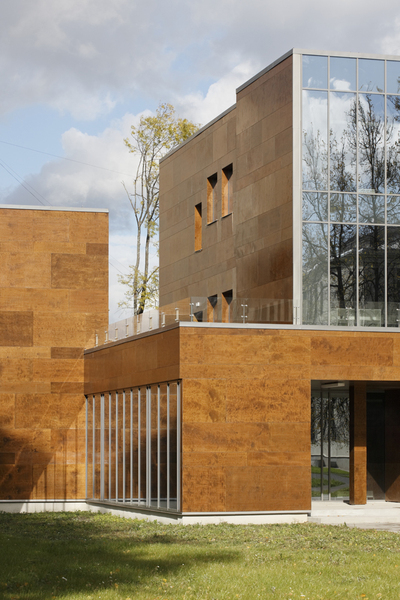

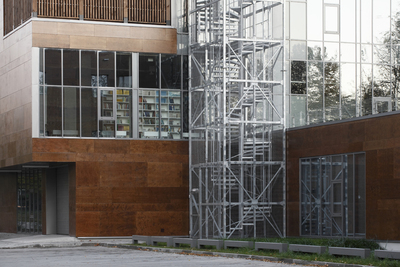

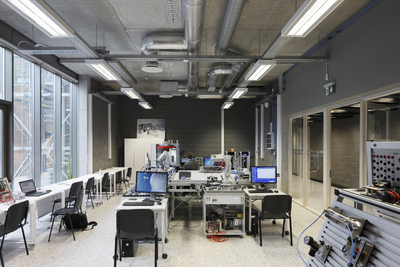

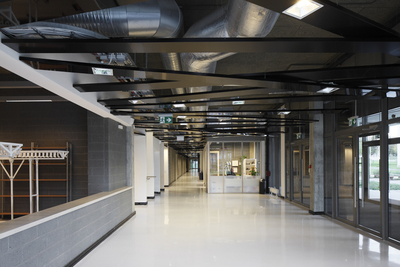

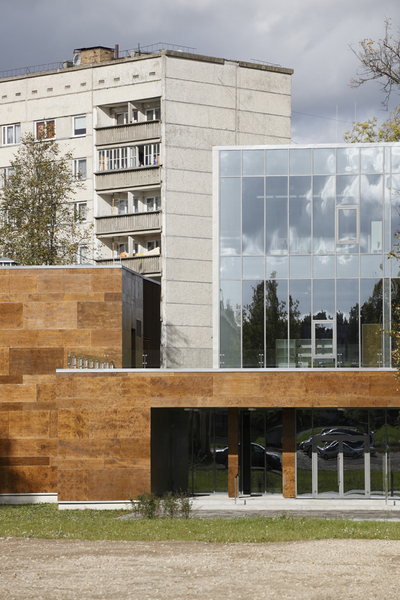

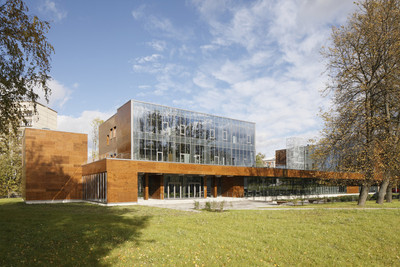

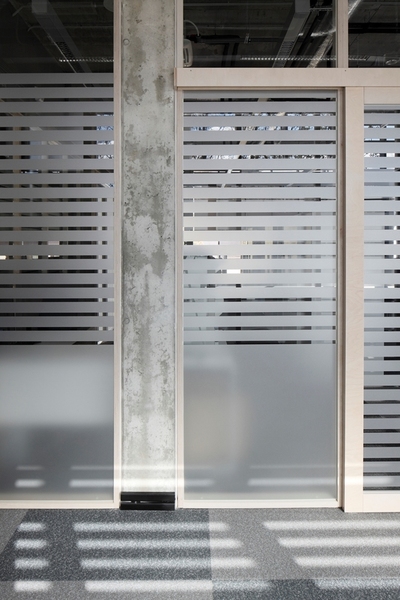

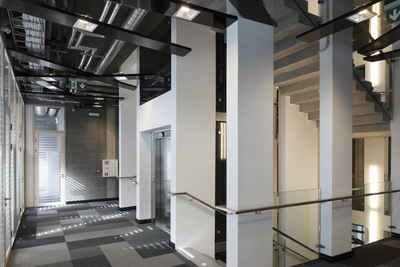

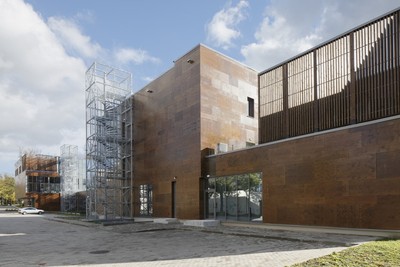

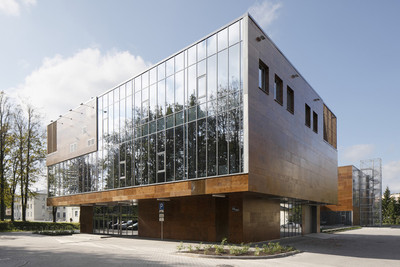

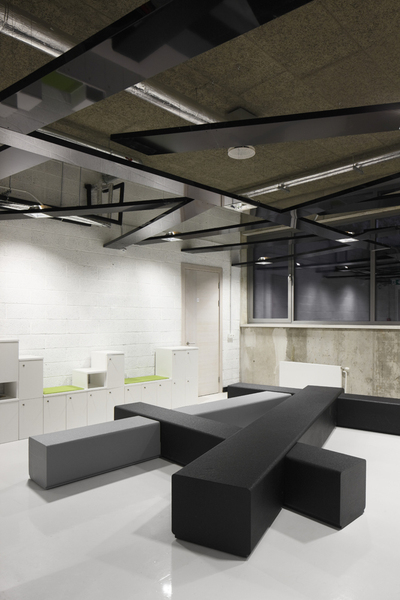

The facade is covered with polyurethane coated toned plywood panels that make an irregular cross pattern. External spiral escape stairs are made of steel and for safety reasons around the ladder there is a steel frame and the protective mesh. Interior is enhanced by intentionally exposed elements of buildings’ structural-frame and engineering communications.

 © Ansis Starks

安西斯·斯塔克斯

Architects AB3D

Location Rēzekne, Latvia

Category University

Design Team Juris Mitenbergs, Peteris Spurins, Uldis Tucs, Guna Priede

Area 4916.0 sqm

Project Year 2014

Photographs Ansis Starks
