URBAN AGENCYs Luxury Apartment Design Twists French Planning Law
2015-08-12 06:00
Terrace Rendered View. Image Courtesy of URBAN AGENCY
露台呈现视图。城市中介机构的形象礼貌
从一开始,该项目就面临着许多障碍通过扭曲和拉结构本身,大型露台和阳台围绕着主要的结构,通过这些障碍。该结构中心的服务核心允许灵活的平面图:每层可建造1至4套公寓。太阳路径映射产生了一个立面对齐,允许充足的日光进入每一个公寓。
From the beginning, the project faced many obstacles – the maximum height was restricted to 18 meters, 30% of the ground level was required to be green space and the “prospect” law in France restricted the angle of the building so as not to impede sunlight to neighboring buildings. By twisting and pulling the structure on itself, large terraces and balconies wrap around the main structure, negotiating these obstacles. The service core at the centre of the structure allows for a flexible floor plan: 1-4 apartments can be built per floor. Sun-path mapping generated a façade alignment which allows ample daylight into each apartment.
Interior Rendered View. Image Courtesy of URBAN AGENCY
内部渲染视图。城市中介机构的形象礼貌
这个项目是对古典建筑的致敬:露台的灵感来自于它的“中间空间”,而外墙使用的材料让人联想到古典的罗马柱。通过用当地的沙子着色混凝土,勒特维斯特遵循了蒙彼利埃的沙质黄色调色板,这是一种既经济又美观的技术。街道上的柱子起到防晒滤光的作用,并为邻近的建筑物提供隐私。全年都有一片蔬菜地供居民使用,一个封闭的花园将容纳一家供居民和公众使用的餐馆。

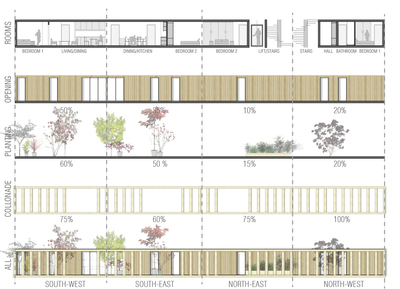

The project pays homage to classical architecture: the terraces are inspired by its “in-between spaces” and the façade uses materials reminiscent of classic, Roman columns. By pigmenting concrete with local sand, Le Twist follows the sandy yellow colour palette of Montpellier, a technique that is both cost-effective and aesthetically pleasing. Columns at street level act as sun filters and provide privacy from neighbouring buildings. A vegetable patch is available for residents year round, and an enclosed garden will house a restaurant for both residents and the public.
Outdoor Restaurant Rendered View. Image Courtesy of URBAN AGENCY
室外餐厅呈现视图。城市中介机构的形象礼貌
建筑师城市办事处,BETSatge客户广告推广面积850.0平方米
Architects URBAN AGENCY, BET Satge Client AD Promotion Area 850.0 sqm
