架构师提供的文本描述。该项目取代了当地“O‘Higgins公园和马术俱乐部”的旧建筑，欢迎现行立法的拟议参数，保留现有建筑的体积和形态，以恢复Av的林荫大道条件。作为连接O‘Higgins公园的纽带。

Text description provided by the architects. The project replaces old buildings in the local area "O'Higgins Park and Equestrian Club", welcoming the proposed parameters of current legislation, preserving volumetric and morphological aspects of what exists in order to recover the boulevard condition of Av. Beauchef as a link to O'Higgins Park.

 © Nico Saieh

c.Nico Saieh

新的ONEMI总部的项目提出了一个现代和灵活的公共建筑的体积，重建了旧的现有工厂，保持了充分的优势，在一个可渗透的体积，允许占用公园，和现代的公共空间概念，从大楼内部的外部公共空间，通过一楼的门廊入口处对建筑物的支撑结构进行隔震。

The project for the new ONEMI headquarters poses a contemporary and flexible public building on a volume that recreates the old existing factory, maintains the predominance of full over void on a permeable volume that allows to take the park, and the modern notion of public space, from the outside public space inside the block through the portico entrance on the first floor between the supporting structures of the building on the seismic isolators.

 Planta Segundo Piso

Planta Segundo Piso

在这个项目中，我们试图通过表达支撑结构的大小、组成和设计来使建筑正规化，从而使其具有建筑物本身的塑料、象征和身份价值。

In this project we have sought to formalize the building through the expression of the support structure which is sized, composed and designed so that it assumes the plastic, symbolic and identity values of the building itself.

竞争要求我们为建筑物的一部分提供隔震器，我们打算使用它们为用户提供一个开放的门廊。地震隔振器作为技术要素，转化为建筑物的构造物和象征元素。一楼门廊是作为项目的一个重要组成部分而设计的，其主要思想是实现功能、空间和象征性的组织，使一种满足像智利这样的地震国家需求的技术装置成为结构和建筑元素，从而确定建筑物的特性。这是通过扭转他们通常的位置来实现的，当他们被放置在地下通道下时，就会在建筑物下面出现一个大空间，并将它们放在地下，这是为了供项目使用。

The competition required us to provide part of the building with seismic isolators, we intend to use them generating an open porch for users. The seismic isolators as technical elements are transformed into compositional and symbolic elements of the building. The first floor porch is designed as a significant element of the project and main idea achieving a functional, spatial and symbolic organization, to make a technical device, developed to meet the demands of a seismic country like Chile, into a structural and architectural element, which defines the identity of the building. This is accomplished by reversing their usual location, which when placed under the underpass involve the emergence of a large space under the building, and by putting them on the underground this space is gained for the use of the project.

 © Nico Saieh

c.Nico Saieh

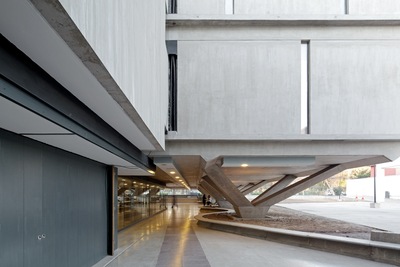

门廊是由四棵树状的支撑设置的，从每个绝缘体上升，以接受来自建筑物的负荷。它减少了绝缘子的数量，并节省了使用。

The porch is set from quadruple tree-shaped supports that rise from each insulator to receive loads from the building. It reduces the number of insulators, and saves use.

 Geometría Pilar

吉梅里亚·皮拉尔

绝缘子上的支撑结构布置在一个12.60×8.10的网格中，定义了一个6.30米宽的平行海湾的组织结构，每4.05米有一根柱子。办公大楼的规划为36x19米，应急大楼的规划为32×19米，两层楼均设有带楼梯和电梯的独立核心，以确保建筑物的独立运作。

The support structure on the insulators is arranged in a grid of 12.60 x 8.10, defining an organization of three parallel bays of 6.30 m wide with pillars every 4.05 m. The office building has a plan of 36 x 19 m and the emergency building has a plan of 32 x19 m, both on two floors served by an independent core with stairs and lifts to ensure the independent operation of the buildings.

 © Nico Saieh

c.Nico Saieh

内部组织设计为6.30×4.05米的模块，与正面调制相一致，允许适当的内部分布。结构模块适用于地下停车。

The internal organization is designed in modules of 6.30 x 4.05 meters coincident with the facade modulation , which allows a proper internal distribution. The structural modules are suitable for underground parking.

灵活是通过一个清晰的组织结构和垂直循环核心的位置与组织在三个海湾。

Flexibility is given by a clear organization of the building and the location of the vertical circulation core in conjunction with the organization in three bays.

 © Nico Saieh

c.Nico Saieh

走廊的宽度和建议的地板到天花板的高度使所有工作空间都能接受自然光，并能欣赏到外面的景色。立面的混凝土结构是这样做的，这样固体才能在波切克大道的空隙中占上风。在室内，私人办公室的玻璃墙到内部的工作空间可以在免费的计划中为工作空间提供透明的规划、视图和自然照明。

The width of the corridors and the proposed floor to ceiling height allows all work spaces to receive natural light and enjoy views to the outside. The concrete structure of the facades is done so for solids to prevail over voids on Beauchef avenue. Inside, glass walls for private offices to the interior work spaces enable a transparent plan, views and natural lighting for work spaces in free plans.

 Antena Detalles

安特娜·德塔尔斯(Antena Detalles)

作为机构正常运行的重要构造要素，要求天线高度为60m。在这种情况下，与地震隔振器一样，天线结构被转换为工程的一个象征元素。这个天线位于内部庭院，从很远的地方就可以看到，在城市环境中定位ONEMI。

As important tectonic element for the proper functioning of the institution, it is required to have antennas 60m high. In this case, as with the seismic isolators, the antenna structure is transformed into a symbolic element of the project. This antenna is located in the inner courtyard and is visible from a great distance, positioning ONEMI in the urban environment.

 © Rodrigo Opazo

罗德里戈·奥帕佐

Architects Teodoro Fernández Arquitectos

Location Santiago, Santiago Metropolitan Region, Chile

Category Institutional Buildings

Project Architects Teodoro Fernández Larrañaga, Sebastián Hernández Silva, Pablo Alfaro Vial, Danilo Lagos Serrano

Project Area 5947.0 m2

Project Year 2015

Photographs Nico Saieh, Rodrigo Opazo
