Shaping Research KSG Architekten

2015-10-08 15:00

架构师提供的文本描述。位于维尔茨堡的硅酸盐研究所的夫琅和费高温材料和设计中心的新大楼用于开发用于能源、推进和热技术以及航空航天技术的高温材料。这座两层楼高的建筑群有一个特殊的陶瓷外墙，由KistScheithauer Growth建造。

Text description provided by the architects. The new building of the Fraunhofer Center for High Temperature Materials and Design HTL, which belongs to the Institute for Silicate Research ISC in Würzburg, is used for the development of high-temperature materials for energy, propulsion and heat technology as well as aerospace technology. The two-storey building complex with an exceptional ceramic façade was implemented by kister scheithauer gross.

 © Yohan Zerdoun

(Yohan Zerdoun)

“在评审团会议上，我已经确信，KECG的设计能够完全满足我们对功能和表现力研究大楼的要求，”弗雷德里希·拉瑟(Friedrich Raether)博士回忆道，他是该项目的初始阶段，也是整个德国的两阶段竞争对手。现在，大约三年后，大楼可以移交给用户。在面积为5 800平方米的总楼面上，布置了实验室、车间、炉膛、产品开发区、化学储藏室、评估室以及办公室和会议室，实际建筑面积为2 600平方米。夫琅和费高温材料与设计中心的研究重点是提高工业加热过程的质量、材料和能源效率。

 “During the jury session I was already convinced that the design by ksg can exactly meet our request for a both functional and expressive research building”, remembers Dr. Friedrich Raether, Head of the Fraunhofer Center HTL, the initial phase of the project, a German-wide two-phase competition. Now, about three years later, the building could be turned over to the user. On a gross floor area of 5,800 m², laboratories, workshops, furnace halls, product development areas, chemical storage rooms, evaluation rooms as well as offices and meeting rooms were laid out with an effective floor area of 2,600 m². The research focus of the Fraunhofer Center for High Temperature Materials and Design HTL is the quality improvement and material and energy efficiency of industrial heating processes.

 © Yohan Zerdoun

(Yohan Zerdoun)

 Floor Plan

 © Yohan Zerdoun

(Yohan Zerdoun)

新大楼分为方形、单层技术和试验室，部分为两层大厅，另有一个狭窄的两层至三层的办公大楼。这种严格的用途分离在建筑物内外都是可以识别的。办公室区在底层设有会议室和演示文稿，突出在倾斜的场地之外，并在Bayreuth提供丰富的视图。利用山坡的位置，从西边的直通道路上也可以看到这座建筑。卫生和更衣室以及休息区都位于两个功能的交汇处。

The new building is divided into a square one-storey technology and laboratory area with partly two-storey halls as well as a narrow two- to three-storey office wing. This stringent separation of uses can be recognised both inside and outside the building. The office section with rooms for meetings and presentations on the ground floor protrudes beyond the sloping site and offers generous views across Bayreuth. Making use of the hillside location, the building is also visible from the through road running past in the west. Sanitary and changing rooms as well as a lounge area are positioned at the intersection of both functional.

 © Yohan Zerdoun

(Yohan Zerdoun)

门面设计是从传统的彩釉技术衍生而来的，并进一步发展成为信封上反复出现的网状图案。这样，这座带有独特陶瓷外墙的新建筑代表了HTL的研究重点。“造型研究是一个主题，为我们打开了美妙的设计范围”，办公室合作伙伴约翰·基斯特解释说。釉面陶瓷是在高温下烧成的，通常会受到很大的温度变化，并能在表面形成细小不规则的裂纹。我们把这种所谓的“疯狂”作为我们的立面设计的一个主题，并以一个规则的网纹的形式将它应用到整个外观表面“，约翰·基斯特教授解释说，这是我们的基本思想。

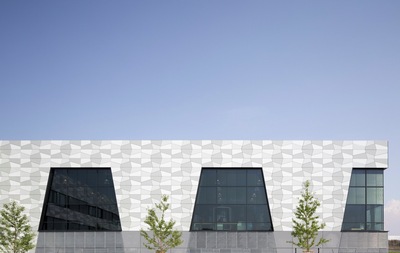

The façade design has been derived from the traditional craquelé glazing technique and is further developed as a recurrent net pattern on the envelope. That way, the new building with its distinctive ceramic façade represents the research focus of the HTL. “Shaping research is a theme for us that opens up wonderful design scopes”, explains office partner Johannes Kister. “Glazed ceramic is fired at high temperatures, often subjected to great temperature variations and can form fine, irregular cracks on the surface. We take up this so-called crazing as a motif for our façade design and apply it to the entire façade surface in the form of a regular net pattern”, explains Prof. Johannes Kister the basic idea.

 © Yohan Zerdoun

(Yohan Zerdoun)

对于新的建筑，总共拨款2000万欧元用于场地、建筑和最初的装修。50%的资金来自欧洲区域发展基金EFRE，25%来自联邦教育和研究部以及巴伐利亚自由州。陶瓷表面材料和关节处理为研究所创造了同样壮观和有纪律的外观。

For the new building, a total of 20 million Euros was granted for the site, the construction and the initial fitting-out. 50 % of the funds came from the European Regional Development Fund EFRE and 25 % each came from the Federal Ministry for Education and Research and the Free State of Bavaria. The ceramic façade material and the treatment of joints create an equally spectacular and disciplined appearance for the institute.
