架构师提供的文本描述。深圳大城市的重点是国家和国际的信息技术研究和开发。加强IT产业的一个核心项目是“深圳软件工业基地”，作为2009年国际竞争的一部分，建筑师von Gerkan、Marg和Partners获得了第一个地块的设计委托；这一项目现已完成。

Text description provided by the architects. The focus of the Shenzhen metropolis is on national and international IT research and development. A core project for strengthening the IT industry is the „Shenzhen Software Industry Base“, for the first plot of which the architects von Gerkan, Marg and Partners won the design commission as part of an international competition in 2009; this has now been completed.

 Floor Plan

该项目位于南山区西部，因其地处香港、国际宝安机场和东部金融中心而享有良好的战略位置，
全区的城市设计(其中GMP设计是其中的一部分)，明确了研究、管理和服务建筑的密集发展，共有18座大楼。这些塔楼集中在中心的一个延伸的低层开发项目上，第一个地块现在已经完工，它的三座塔形成了本季度的东北端。

The project is situated in the western Nanshan district and enjoys a favorable strategic location due to its proxi- mity to Hong Kong, the international Bao’An airport and the eastern financial center.
The urban design for the entire precinct, of which the gmp design forms a part, specifies a dense development of research, administration and service buildings comprising a total of 18 towers. These towers are grouped around a spread-out, low-rise development in the center, with the first plot now completed, and with its three towers forming the north-eastern end of the quarter.

 © Christan Gahl

C.Christan Gahl

为了为规模较小的IT公司创造一个吸引人的、紧凑的位置，公共和内部通信空间、种植面积、日光和自然通风在该项目的概念中发挥了关键作用。
的总体意图是创建一个连贯的综合体，将所有租户连接起来，但由于场地被道路划分为三个部分，这一做法受到了阻碍。该设计克服了这个问题，将一座塔放置在场地的每一部分，并通过桥梁连接桥墩，创造一个统一的发展。

In order to create an attractive, compact location for smaller IT companies, public and internal communication spaces, planted areas, daylight and natural ventilation played a key role in the concept for the project.
The overall intention was to create a coherent complex that links all tenants, but this was hampered by the fact that the site is divided into three parts by roads. The design overcomes this problem by placing one tower on each part of the site and linking the plinths via bridges to create a unified development.

 © Christan Gahl

C.Christan Gahl

建筑物在高地上有一系列的带状，形成一个动态的组合，空间之间形成多样的多层中庭，同时也实现了所有塔楼之间的水平多层连接。这些蜿蜒的建筑量和他们的桥梁创造了城市广场的北部和南部，这也提供了地址的塔。

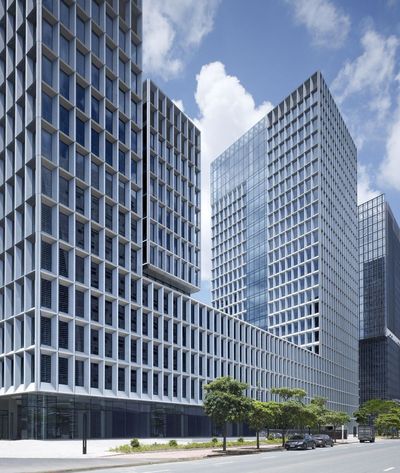

The buildings feature a series of bands in the elevations, resulting in a dynamic composition, with the spaces in between forming diverse multi-story atria, while also achieving a horizontal multi-story link between all towers. These meandering building volumes and their bridges create urban squares to the north and south, which also provide the addresses to the towers.

 © Christan Gahl

C.Christan Gahl

虽然大楼可容纳办公区，但会议区、餐馆和小商店等特殊功能位于连接桥墩结构中，因此可直接从所有塔楼和街道一级到达。此外，6楼的屋顶露台作为不同塔楼之间的汇合点和连接点。建筑群西侧和东面的高楼分别为90米和100米，顶部有三层的空中大厅，可以容纳更多的餐厅，还可以俯瞰整个城市的南面的深圳湾。

While the towers accommodate the office areas, special functions such as conference areas, restaurants and small shops are located in the linking plinth structure, which can therefore be reached directly from all towers and from street level. In addition, the roof terrace on the 6th floor serves as a meeting point and connection between the different towers. The higher towers in the west and east of the complex, measuring 90 m and 100 m respectively, are topped by three-story sky lobbies, which accommodate additional restaurants and provide a view across the city to the Shenzhen bay to the south.

外墙设计成一种均匀的金属结构，包裹着建筑物，加强建筑效果。栅格是由棱柱，穿孔金属板元件组成的，覆盖了自然通风和机械通风的所有开口，从而有可能为办公区域提供大的、不分割的玻璃表面。60厘米深的立面元素也提供了有效的太阳能屏蔽，以抵御在中国南方普遍存在的强烈的太阳辐射。

The façade has been designed as a uniform metallic structure enveloping the buildings and reinforcing the sculp- tural effect. The grid has been composed of prismatic, perforated metal sheet elements that cover all openings for natural and mechanical ventilation, thus making it possible to provide large, un-divided glazed surfaces to the office areas. The 60 cm-deep façade elements also provide effective solar screening against the intensive solar irradiation prevalent in southern China.

 © Christan Gahl

C.Christan Gahl

Architects gmp architekten

Location Shenzhen, Guangdong, China

Category Institutional Buildings

Design Meinhard von Gerkan and Stephan Schütz with Nicolas Pomränke

Area 137900.0 sqm

Project Year 2015

Photographs Christan Gahl
