One World Place Gensler

2016-04-22 22:00
 Courtesy of Gensler
甘斯勒
架构师提供的文本描述。位于博尼法奇奥全球城市(BGC),一个世界的地方代表了一个标准的创新设计在马尼拉的蓬勃发展的金融区。在过去十年中,菲律宾经济大幅增长,将自己定位为东南亚地区最强大的经济体之一,现在有望成为未来十年全球最大的经济体之一。博尼法奇奥环球城(Bonifacio Global City)以其不断发展的天际线为代表。
Text description provided by the architects. Located in Bonifacio Global City (BGC), One World Place represents a standard for innovative design inManila’s booming financial district. Over the last ten years, Philippines economy has grown dramatically, positioning itself as one of the strongest in the South East Asia region, and is now expected to be one of the largest global economies over the coming decade. Bonifacio Global City, with its evolving skyline, is representative of this growth.
 Courtesy of Gensler
甘斯勒
“一个世界之地”的成功于2015年年底竣工,这对于将第一地产重新定位为马尼拉市场上一家现代化、鼓舞人心的新开发商至关重要,其核心价值建立在持久的客户关系基础上,并不断为未来几代商界领袖提供价值,从而支持菲律宾的增长。
Completed in late 2015, One World Place’s success is essential in repositioning the Daiichi Properties as a modern and inspiring new developer in the Manila market, basing their core values on lasting client relationships and continuously providing value to generations of future business leaders, thus supporting Philippines growth.
 Courtesy of Gensler
甘斯勒
一旦成为美国陆军基地,几次尝试为Bonifacio全球城市地区建立一个全面的总体计划,结果形成了一个独特的正交和圆形循环网格。这种安排为未来的发展创造了具有挑战性的几何结构,小而往往是不规则的单个包裹。

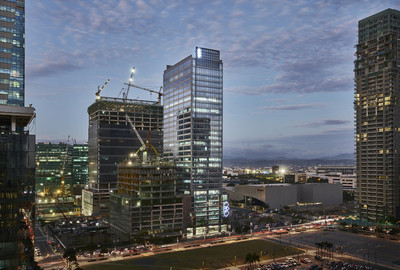

Once the site of a United States Army base, several attempts at creating a comprehensive master plan for the Bonifacio Global City area resulted in a unique overlay of orthogonal and round circulation grids. This arrangement created challenging geometric configurations, with small and often times irregular individual parcels, for future development.
 Courtesy of Gensler
甘斯勒
混合形式的功能,一个世界的地方站在143.50米高,贡献了城市已经引人注目的天际线。这座32层的大楼以四层地下室停车场和六层平台停车场为基础,以底层零售空间、22层办公空间、顶层公寓层、行政办公室和机械甲板层为特色。该大楼的混合用途组件可容纳广泛的租户活动,包括零售银行、小企业的空间、咖啡馆和公司办公空间。大多数租户以服务外包为主,BPO和KPO的服务类型主要集中在较低的楼层。公司办公室占据了大楼的上部。正面被统一的幕墙完全覆盖。

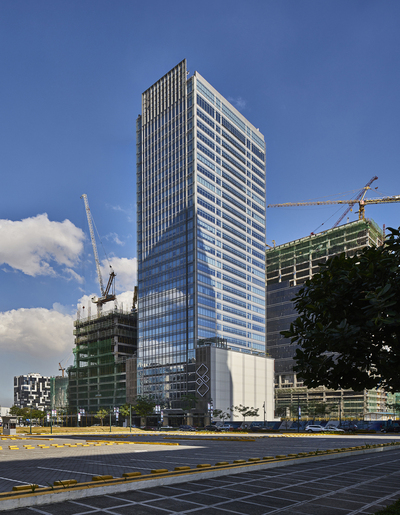

Blending form to function, One World Place stands at 143.50 meters tall, contributing to the city’s already compelling skyline. Rooted with four levels of basement parking and six levels of podium parking, the 32-story tower features ground floor retail space, 22 levels of office space, a penthouse level, executive offices and a mechanical deck floor. The building’s mixed-use components accommodate a wide range of tenant activities, including retail banking, spaces for small businesses, cafés, and corporate work spaces. The majority of tenants are service-outsourcing oriented, as BPO and KPO service types occuping single floors at the lower building portion. Corporate offices occupy the upper part of the building. The facade is fully covered in a unitized curtain wall.

这座塔的建筑面积为1790平方米,楼板面积约1100平方米,核芯偏移,总建筑面积49,374平方米。在这样一个相对较小的楼面空间内有效地安装一个建筑方案是一个重大的挑战。

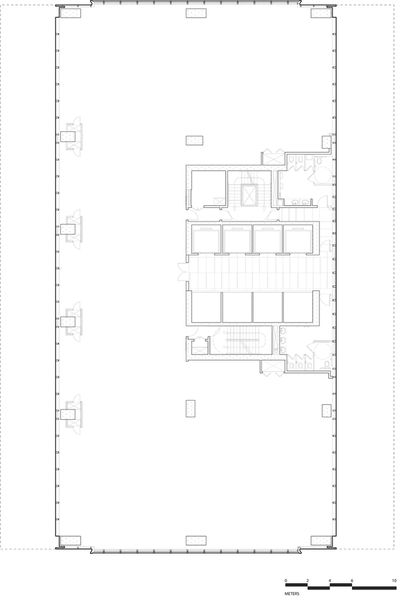

The tower was planned on a 1,790 square meters site, with a floor plate of about 1,100 square meters, an offset core and the total gross floor area is 49,374 square meters. Efficiently fitting a building program within such a relatively small floor space posed a significant challenge.
 Courtesy of Gensler
甘斯勒
One World Place已被认证为LEED黄金。该设计团队整合了多种高性能建筑设计理念-包括采光、自然通风、高效隔热玻璃和太阳能反射涂层、高玻璃比和玻璃可见光透光率,以及外部和内部遮阳设备。此外,有效的可变制冷剂流量(VRF)机械系统、现场雨水收集和灰色水的使用也被纳入建筑物的设计。这种程度的可持续性将有助于缓解该地区独特的气候和经济挑战,在台风主导的地区提供自然通风,同时在亚洲一些电价最高的城市马尼拉创造高能效。
One World Place has been certified as LEED Gold. The design team integrated multiple high-performance building design concepts—including daylighting, natural ventilation, and highly efficient insulated glass with solar-reflective coating, a high-glazing ratio and glass visible light transmittance, and exterior and interior shading devices. Additionally, efficient Variable Refrigerant Flow (VRF) mechanical systems, onsite rainwater collection, and gray water use was also incorporated into the design of the building. This level of sustainability will help mitigate the region’s unique climatic and economic challenges, providing natural ventilation in a typhoon-dominated area, while creating high-energy efficiency in Manila, a city with some of the highest electric rates in Asia.
 Courtesy of Gensler
甘斯勒

 Courtesy of Gensler
甘斯勒




















Architects Gensler
Location 32nd St, Taguig, Metro Manila, Philippines
Category Office Buildings
Architect of Record AIDEA
Owners Daiichi Properties Inc.
Area 49374.0 ft2
Project Year 2015
