Santa Pola Bus Station Manuel Lillo + Emilio Vicedo

2016-06-10 11:00

 © Filippo Poli
菲力波·波利
架构师提供的文本描述。该项目被设定为一项城市战略,以解决南至圣波拉镇的公共用途地块,符合一种“城市之门”。连接SantaPola和Elche城镇的道路正在穿过一个完全由工业建筑组成的区域,就在公共小区的正前方和城市本身的入口。因此,这个项目必须认识到它作为一个里程碑的性质,并作为一个有机和统一的整体建筑碎片和空间。
Text description provided by the architects. This Project is set as an urban strategy to solve the public uses plot existing in the south access to Santa Pola town, conforming a kind of ‘door to the city’. The roads linking Santa Pola and Elche towns are running through an area exclusively shaped with industrial buildings, just at the very front of the public plot and the entrance to the city itself. So, this Project had to realise its nature as a landmark, and was settled as an organic and uniform ensemble of building pieces and spaces.
 © Filippo Poli
菲力波·波利
 Elevations


 Axonometric


主要用途是理解新的公交车站,放置在最突出的点,地块,旁边的环形交叉,并直接从所有点可见。同样,道路旁也有一个宽阔的绿地,以强调其公众作用。
Main use comprehends the new Bus Station, placed in the most prominent point of the plot, next to the roundabout, and directly visible from all points. Likewise, a wide green area is placed next to the road, to emphasise its public role.
 © Filippo Poli
菲力波·波利
在形式上,主站楼由一个漂浮的巨大甲板组成,它必须为候车平台提供阴影和保护,并与售票处蚂蚁服务一起安置在这一甲板下,并在其背面设有加油站和商店。主甲板在中心区域有一个空隙,提供一种花园,其目的是提供光、参考点和作为不同用途和间隔之间的边界。

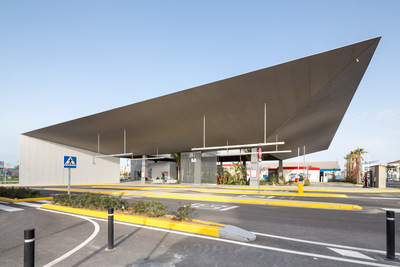

Formally, the main station building is composed as a floating huge deck, which must provide shadow and protection to the waiting platforms, settled under this deck together with the ticket office ant services, and an oil station and shop in its back side. The main deck has a void in the central area to provide a kind of garden, whose purpose is to provide light, reference point and to serve as a boundary between different uses and spaced.
 Elevations


第二卷有相似的成分,使用金属包层作为主要材料,以符合外观。这卷书的设置扭曲了它的线条,从而允许公共空间和花园出现在第一位。第二部分用于为商业和城市服务提供空间。
There is a second volume with a similar composition, using metallic claddings as the main material to conform façades. This volume is laid down twisting its lines and so allowing public spaces and gardens to appear in first place. This second piece is used to provide space for commercial and city servies.
 © Filippo Poli
菲力波·波利


















Architects Manuel Lillo , Emilio Vicedo
Location Ctra. Elche-Santa Pola, 5, 03130 Santa Pola, Alicante, Spain
Category Bus Station
Architect in Charge Manuel Lillo + Emilio Vicedo
Area 6010.0 sqm
Photographs Filippo Poli
