架构师提供的文本描述。位于浙江省桐庐峨山社民族乡代家山村，先锋-嘉德乡村图书馆是李布莱里先锋队经营的第11家书店。凭借文化传播理念-先锋-加德和图书馆，以及“她”村独特的地域自然和人文景观，该项目已成为当地村民和外来读者之间的公共生活纽带，也成为当地文化和创意产业的焦点。图书馆的主体是一个闲置的院子，坐落在村庄主要街道的一边，包括两所黄色的土坯房和一个从斜坡上伸出的平台。在保持建筑和庭院的结构和空间顺序的同时，建筑设计将目前的衰落状态恢复到健康状态。新旧关系加强了“时机”。时间和记忆的载体-土坯墙、瓷砖屋顶和屋顶桁架-已经成为空间的主导，并共同创造了语境-延续了当代地方美学，并宣传了功能再生。

Text description provided by the architects. Located in Daijiashan Village,Eshan She Nationality Township of Tonglu, Zhejiang Province, the Avant-Garde Ruralation Library is the 11th Bookstore run by the Librairie Avant-Garde. With the culture-spreading idea ——Avant-Garde and Library, as well as the unique regional natural and human landscape of the ‘Shes’ village, this project has become the public life bond among local villagers and alien readers, and also become a a focal point of local cultural and creative industries. The main body of the library was an idle yard lying at one side of the village’s main street, including two yellow mud adobe houses and a platform projecting from a slope. While maintaining the structural and spatial sequence of the buildings and courtyards, the architectural design restores the current declined status to a healthy state. The relationship between the new and the old strengthens the ‘timing’. The carriers of time and memory – the adobe walls, tile roofs and roof trusses have become the spatial dominance, and have jointly created context-continuing contemporary local aesthetics, together with the publicity of function regeneration.

中国几千年的传统植根于农业文明.中国真正的建筑传统在于乡村聚落、城乡关系的有机统一以及几千年来的可持续发展模式，这是一种以“文化意识”为基础的地域性，我们的思想集中在“时间”这一基本方面。任何地区的触觉建筑环境特征都是时间沉积的力量。与不可抗拒的“时间”相比，建筑师精心建造的“空间”设计趋向于更加个性化，无法面对生活的挑战。

The Chinese thousands-of-year tradition roots in agricultural civilization. The authentic Chinese architectural tradition lies in the rural settlement, the organic and integral urban-rural relations, as well as  the continuing development model lasting for thousands of years, which is a sort of territoriality based on ‘cultural consciousness’.Our thinking focuses on the fundamental aspect ‘time’. The touching built environment characteristics in any area are the strength of time depositing. Comparing with the irresistible ‘time’, the ‘space’ design meticulously constructed by architects tends to be more personalized, and cannot face the challenge of life.

在先锋队-加德乡村图书馆更新项目中，建筑空间I.S的创造受到严格限制，并被精心打造为一个不可察觉的“休息”时间。包括庭院走廊和室内设施在内的新元素因其纯粹的形式而减弱，同样重要的是，这些微妙的形式元素-也是工业化和生产性的附加元素-对于图书馆的当代功能至关重要。由“新”元素创造的“旧”建筑的重新确立的空间边界，将过去的时间重新导向现实。从建设过程到整合到农村生活中的文化管理，“新”与“旧”共同构成了人生情景的一个阶段，而不是一个抽象的纯粹的空间定义。

In the Avant-Garde Ruralation Library renewal project, the creation of architectural space i.s strictly constrained, and carefully made as an imperceptible time ‘rest’. The new elements including courtyard corridors and interior facilities are attenuated by their pure form.Equally important, these subtle formal elements – which also are the industrialized and productized addition, is crucial relating to the contemporary function of libraries. The re-established spatial boundaries of the ‘old’ building created by the ‘new’ elements re-direct the past time to reality. From the construction process to the cultural management integrating into the rural life, the ‘new’ and the ‘old’ together contribute to a stage of life scenarios, rather than an abstract purified spatial definition.

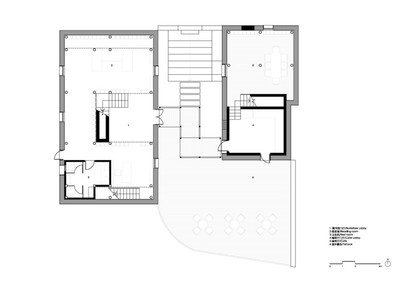

 Ground Floor Plan

为了适应图书馆的新功能，最关键的设计策略是提升屋顶。支撑屋顶的内梁柱框架整体提高了60厘米。利用增加的高度，可以建造高窗户，从而自然地将光、空气和美丽的竹林景观引入室内阅读空间。顶板抬升的实现主要依靠当地工匠的传统技法-巧榫技术延伸部分柱。同时进行了灰瓦屋面的改造，护套上的保温施工大大改善了旧建筑的热性能。在大楼外，由于高窗户，原来的土坯墙和灰色瓷砖屋顶呈现出戏剧性的表现-关闭和开放，重而轻，在修剪过的户外景观和照明设计的背景下，形成了村庄柔和的景观焦点。

To adapt to the new function of the library, the most critical design strategy is to lift up the roof. The internal beam-column frame which supports the roof has been heightened by 60cm as a whole. Taking the advantage of the increased height, the high windows can be constructed; thus light, air and the beautiful bamboo forest landscape are naturally introduced into the interior reading space. The realization of the roof uplifting mainly relies on the local craftsmen’s traditional skills – extending partial columns by the means of crafty tenon skill. Parallely the renovation of the grey-tile roof is undertaken; the thermal insulation construction attached to the sheathing has greatly improved the thermal performance of the old building. Outside the building, due to the high windows the original adobe walls and grey-tile roof take on a dramatic performance -- closed and open, heavy and light, forming a gentle landscape focus of the village against the background of the trimmed outdoor landscape and lighting design.

连接主室和部分室的可渗透木格栅走廊加强了新建图书馆与咖啡厅之间的功能联系，并重新界定了室外空间的敏感体验序列。在街道、楼梯和走廊之间，坐落着一个紧凑而友好的前院；穿过曲折的走廊，或从建筑物的内部出来，走廊和弧形平台映入眼帘，共同定义了户外阅读空间。在建筑物内部，楼梯间、部分平台和可渗透的书架隔断有助于空间宣传；翻新后的木屋结构通过加强照明，形成一种明亮而强大的空间氛围。

The permeable wooden grille corridor linking the main room and the partial room is able to strengthen the functional connection between the renewed library and the café, and also to redefine the sensitive experiencing sequence of the outdoor space. In between the streets, the stairs and the corridor, a compact and friendly front yard is situated;passing through the tortuous corridor, or coming out from the inside of the building, the building, the corridor and the arc-profiled platform come into sight, which together define the outdoor reading space. Inside the building, the well-organized stairwell, partial platform, and permeable bookshelf partition contribute to spatial publicity; the renovated wooden roof structure forms a bright and powerful space atmosphere by means of intensifying the lighting.

 Exploded Axonometric

爆炸轴测

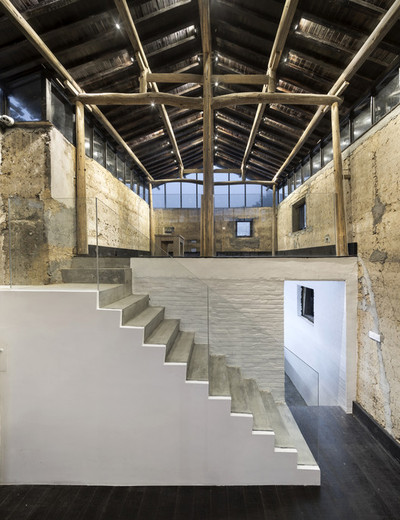

最常见的砖石结构适用于东侧部分房间内的咖啡厅，西侧主房中建造的楼梯和厕所。其独立地基处理对原建筑主体结构具有加固作用。随着工业产品形式的高度弱化，新建的内墙、楼面、楼梯、家具等设施确定了传统建筑的时间界限，形成了现代新功能的调节机制，从而使空间能够适应和发展当代地域生活体验。

The most common brick masonry structure is applied to the café foyer added within the partial room on the east side, the stairs and the toilets constructed in the main room on the west side. Its independent foundation treatment has a reinforcing effect on the main structure of the original building. With the highly-attenuated form of industrial products, the newly-built interior walls, floors, stairs, furnishings and other facilities define the time boundaries of the traditional building, and form the regulating mechanism of the contemporary new function; thereby the space is enabled to accommodate continuing and developing contemporary regional life experience.

 Courtesy of AZL Architects

AZL建筑师提供

Architects AZL Architects

Location Zhejiang, China

Category Library

Architect in Charge Zhang Lei / AZL Architects

Design Team Zhang Lei，Liu Wei, Ma Haiyi，Chen Junjun, Zhang Qilin, Shao Xuan

Photographers YAO Li, HU Jun

Area 260.0 m2

Project Year 2015
