架构师提供的文本描述。在装修之前，公寓有一条黑暗的走廊和一个黑暗的入口大厅，可以进入一系列的小房间。

Text description provided by the architects. Before its renovation, the apartment had a dark corridor and a dark entrance hall giving access to a sequence of small rooms.

 © Imagen Subliminal

意象潜意识

该项目的主要目的是为入口大厅和走廊提供自然光，并使厨房和客厅更加靠近。

The main objective of the project is to provide natural light to the entrance hall and the corridor and to bring closer the kitchen and the living room.

 Floor Plan Before

楼面平面图

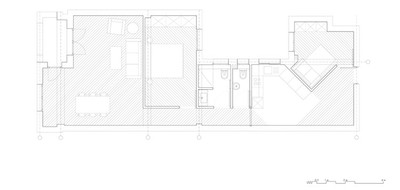

 Floor Plan After

后平面图

厨房变成了一个与入口处相连的具有社会性的空间，它的使用超出了单纯的烹饪和吃饭的行为。该项目促进家庭空间的关系，同时通过视觉和编程连接大厅和厨房。

The kitchen becomes a space of social character linked to the entrance of the house, extending its use beyond the mere act of cooking and eating. The project promotes a domestic space of relationship while linking visually and programmatically the hall and the kitchen.

 © Imagen Subliminal

意象潜意识

一间45度的卧室在公寓的使用上引入了一个新的方向，使大厅和厨房更加清晰。这种运动反映在公寓的使用方式、人行道的布置和垂直表面的处理上。

A 45 degrees oriented bedroom introduces a new direction in the use of the apartment, articulating the hall and the kitchen. This movement is reflected in the way the apartment is used, in the arrangement of the pavements and in the treatment of the vertical surfaces.

 Axonometric

厨房瓷砖折叠到入口处，在两个“用途”之间定义了一个空间，在两个“物质”之间定义了一个空间，给公寓的入口处带来了自然的亮光。同样的材料也用在浴室里，不同的颜色有：灰色的大厅和厨房，红色和蓝色的浴室。

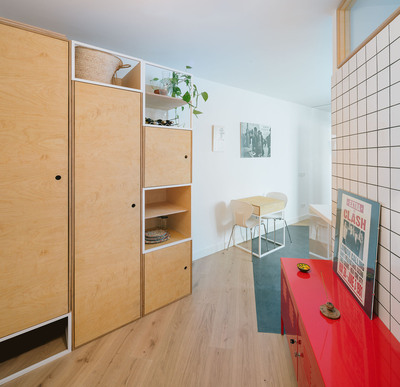

The kitchen ceramic tiling folds out to the entrance area, defining a space "in between two" uses, "in between two" materialities, bringing natural light up to the entrance door of the apartment. The same material is also used in the bathrooms, with variations in the joints colors: grey in hall and kitchen, red and blue in bathrooms.

 © Imagen Subliminal

意象潜意识

庭院中的自然光通过墙壁顶部的纵向空隙进入大厅。胶合板的细节被给予了特别的关注，使元素的组装变得清晰，定义了通过阴影和厚度的分级在材料和平面之间的过渡。

The courtyard natural light enters into the hall through longitudinal voids made in the top of the walls. Plywood details are given special attention, making visible the assembly of the elements, defining the transitions between materials and planes through the graduation of shades and thicknesses.

 © Imagen Subliminal

意象潜意识

Architects PYO arquitectos

Location Calle de Maldonado, Madrid, Spain

Category Apartment Interiors

Architect in Charge Paul Galindo Pastre, Ophélie Herranz Lespagnol

Design Team Natalia Vera Vigaray, Lian Blok

Area 80.0 sqm

Project Year 2015

Photographs Imagen Subliminal
