MAD Architects Design Veiled Xinhee Design Center in Xiamen

2016-08-10 09:00
“我们把它想象成一座有皮肤和骨头的建筑,”疯狂的创始人马岩松说,“服装和建筑的对应之处在于它们都探索了内部和外部的关系。”
“We envision it as a building with skin-and-bones,” reveals MAD founding principal Ma Yansong, “the correspondence of clothing and architecture is they both explore the relationship between the interior and the exterior.”

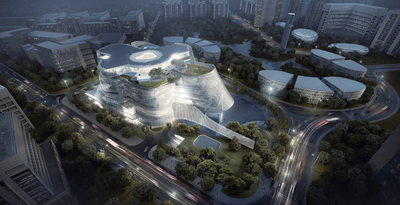

 Courtesy of MAD Architects
疯狂建筑师的礼遇
这座综合体的设计采用了六角星体的形状,将办公室和花园空间混合在一起,每一个都是“有机形成的手臂”。垂直花园沿着手臂的高度,用聚四氟乙烯(PTFE)外壳遮住,在炎热的季节起到遮阳的作用,为建筑物提供通风。轻薄的皮肤也给建筑一个优雅的、浮动的外观,就像一片细腻、细细、柔软的皮肤覆盖着建筑身体的“骨头”结构。
The plan of the complex takes the shape of a six-pointed star, mixing office and garden spaces along each of the “organically-formed arms.” Vertical gardens run up the height of the arms, veiled by a PTFE envelope, which acts as a sun-shade to diffuse light and provide ventilation to the building during the hot season. The lightweight skin also gives the building an elegant, floating appearance, like “a piece of delicate, thin, soft skin covering the “bone” structure of the building body.”
马岩松说:“有这样一个内在逻辑结构的建筑物,看上去飘浮而自由是很有趣的。”
Ma Yansong elaborates, “It’s interesting for a building with such an intrinsically logical structure to look floating and free.”

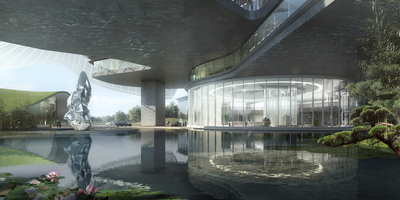

 Courtesy of MAD Architects
疯狂建筑师的礼遇
新熙的每一个品牌都有一栋大楼,以提高办公效率,而布局则创造了灵活的空间,让不同的部门可以自由互动和交流。辐射平面允许建筑物高效,同时仍然提供自然光,通风和立即进入景观。中庭对工作人员和游客开放,包括一座提供空气流通的人行桥和作为时装活动跑道的双人间。
One wing of the building is designated to each of Xinhee’s brands to foster office efficiency, while the layout creates flexible spaces that allow the different departments to freely interact and communicate. The radial plan allows the building to be highly efficient, while still providing natural light, ventilation and immediate access to landscape. The atrium is open to both staff and visitors, and includes a footbridge which provides air circulation and doubles as a runway for fashion events.

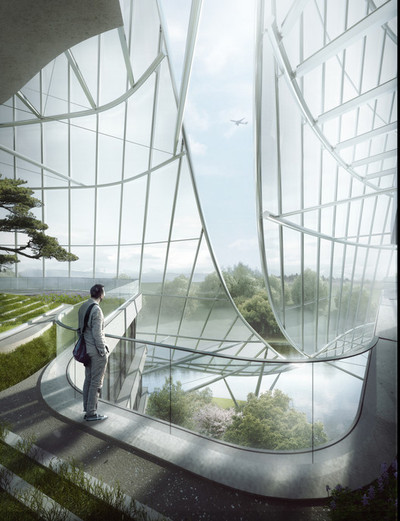

 Courtesy of MAD Architects
疯狂建筑师的礼遇
 Courtesy of MAD Architects
疯狂建筑师的礼遇
该设计中心是为了适应当地的气候,最大限度地提高环境意识而设计的。一楼由公共花园和水设施组成,以帮助提供通风的结构,该结构已被取消,以减少二楼脚印三分之二。在夏天的几个月里,凉爽的空气流经中庭;在冬天,玻璃房间变成一个太阳能温室,以保持建筑物的温暖。在外玻璃上涂上半透明的涂层将减少太阳辐射,而一系列太阳能电池板将沿屋顶排列,为日常操作提供电力。
The design center has been designed for maximum environmental awareness by adapting to the local climate. The first floor consists of public garden and water features to help provide ventilation to the structure, which has been lifted to reduce the first floor footprint by two-thirds. In the summer months, cool air is circulated through the atrium; in the winter, the glass room transforms into a solar greenhouse to keep the building warm. A translucent coating on the exterior glazing will decrease solar radiation, and an array of solar panels will line the rooftop to provide electricity for daily operations.

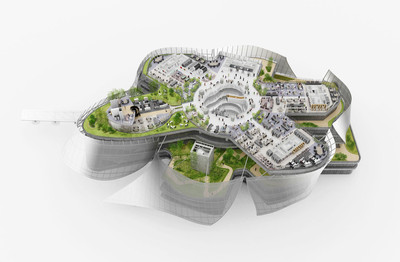

 Sectional Model. Image Courtesy of MAD Architects
分段模型疯狂建筑师的形象礼貌

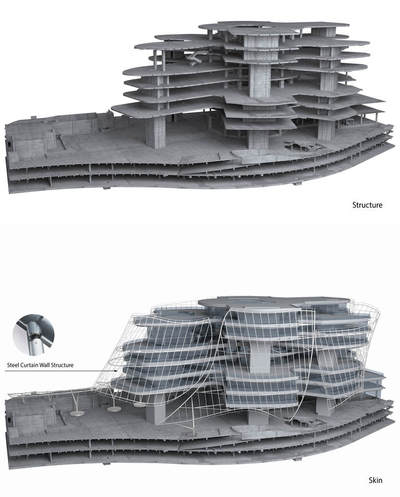

 Sustainability Diagram. Image Courtesy of MAD Architects
可持续性图疯狂建筑师的形象礼貌
新熙设计中心目前正在建设中,预计将于2017年完工。
Xinhee design center is currently under construction and is expected to be completed by 2017.

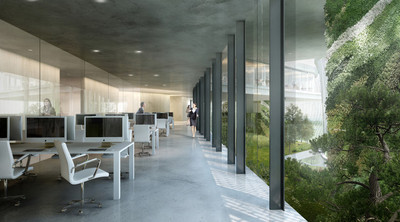

 Courtesy of MAD Architects
疯狂建筑师的礼遇
 Courtesy of MAD Architects
疯狂建筑师的礼遇
建筑师MAD建筑师位置厦门、福建、中国董事马岩松、当群、Yosuke Hayano设计团队J Travis Russett、Flora Lee、刘惠英、付昌瑞、徐晨、李远豪、朱利安·萨特勒、金日成、雅各布·比尔、杨津公园、刘凌、GUIL、Sear Nee、朱敬禄、梁忠义、Sarita Tejasmit、Natalia Giacomino、Natalia Giacomino曾灵岳61535.0平方米工程2017年
Architects MAD Architects Location Xiamen, Fujian, China Directors Ma Yansong, Dang Qun, Yosuke Hayano Design Team J Travis Russett, Flora Lee, Liu Huiying, Fu Changrui, Xu Chen, Li Yuanhao, Julian Sattler, Jei Kim, Jakob Beer, Younjin Park, Liu Ling, Ma Ning, Sear Nee, Zhu Jinglu, Liang Zhongyi, Sarita Tejasmit, Natalia Giacomino, Zeng Lingyue Area 61535.0 sqm Project Year 2017
