The Guild RAW Architecture

2016-10-21 22:00

 © Eric Dinardi

c.Eric Dinardi

架构师提供的文本描述。行会位于梅鲁亚山庄住宅区街的拐角处，以坚固而高大的边墙显示其内向的一面，坚固的篱笆没有缝隙可窥视。就好像要从喧闹的雅加达市撤退，建立自己的避难所一样，行会从外面是坚实的，但内部却是开放的。

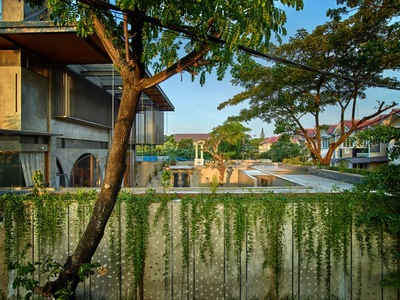

Text description provided by the architects. Located at the corner of the Street at Villa Meruya residential precinct, The guild shows its introvert side with the solid and high border wall, the solid fence without a gap to peek. As if to withdraw from the noisy Jakarta city and build its own sanctuary, the guild is solid from the outside but open on the inside.

 © Eric Dinardi

c.Eric Dinardi

 © Eric Dinardi

c.Eric Dinardi

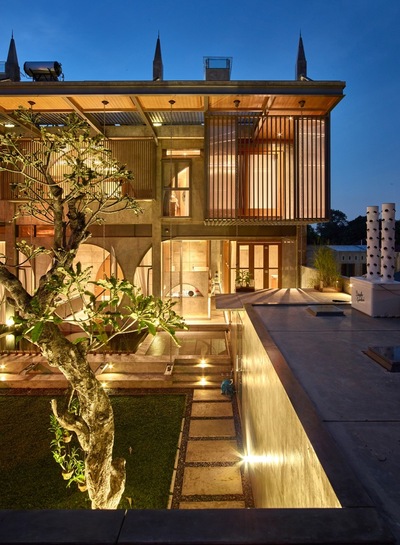

这座建筑由一个主卧室、客厅、工作室、一个图书馆、一个开放式庭院和一个厨房组成。入口由混凝土、钢、玻璃和聚碳酸酯薄板引入。公共和私人的出入是通过开放的空中走廊隔开的。通往房子和工作室的通道由2x2m的门厅隔开。

The Building consists of one master bedroom, living room, studio a place to work , a library, one open courtyard and a kitchen. The entrance is introduced by concrete, steel, glass and polycarbonate sheet. The access from public and private is separated by open air corridor. The access to the House and the Studio are separated by 2 x 2 m foyer.

 Ground Floor Plan

卧室位于一楼，而另一套则位于一楼。房主可以轻松地进入下面的工作室。起居室和总面积35平方米的餐厅位于一楼，而更多的私人家庭客房则位于一楼，由于没有楼梯将家庭区域和工作室分开，所以更多的私人房间位于一楼。

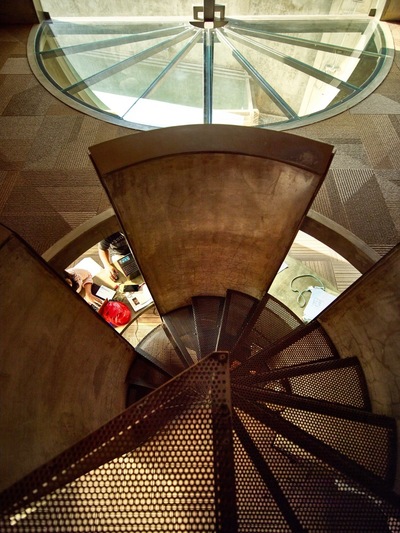

The bedroom is located on the 1st floor while the other program is located on the ground floor. The circulation is interlocked to give ease access for the owner to access the studio below.  Living room and also the dining room with total area of 35 sqm located on ground floor, while the more private family rooms are located on the first floor and limited by the void of stairs to separate family area and the studio.

 © Eric Dinardi

c.Eric Dinardi

热的西-东热带阳光是封闭的固体墙和浴室，而正面是开放的北-南方向。几个金字塔形状的形式也被引入，以允许阳光进入建筑物的中心，并允许新鲜空气通过玻璃和混凝土之间的小缝隙循环。

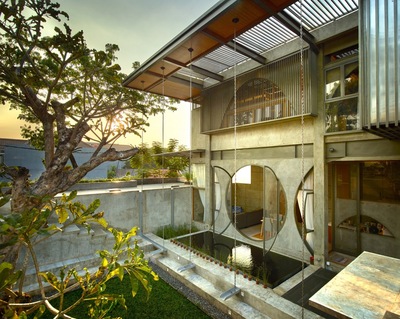

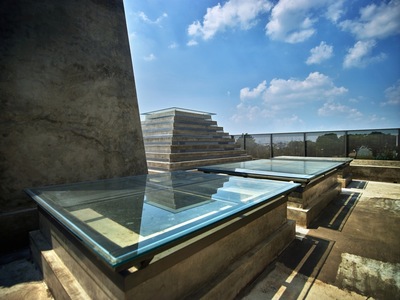

Hot west – east tropical sunlight is blocked by placing solid wall and bathroom while the facade is open to the north-south orientation. Several pyramids shaped form is also introduced to allow sunlight coming to the middle of the building and allowing fresh air circulation through the small gaps in between glass and concrete.

 © Eric Dinardi

c.Eric Dinardi

建筑系统采用自动浇水系统，采用零灰水径流和零暴雨径流。这意味着将全部水收集到容量为8m3的保留盆地和深度为1，5m的2.75x3m集水区，这也是对邻近流域的贡献。

The building system uses an automatic watering system that applies zero greywater runoff and zero storm water runoff. It means the whole water is collected to the retention basin with 8 m3 capacity and 2.75 x 3 m of catchment basin with 1,5 m of depth that also contribute the catchment to the neighbor.

工作室是由6x6平方米的形状，一个小的空隙。这个小空隙有一个锥形的天窗，由混凝土制成，有几个小的缝隙，以提供光和空气循环。这个名为Omah的图书馆在周末开放，其规模为3，4x12，3米。它在周边地区下沉，一半低于0：00米的高度，考虑到公共通道和需要保持书籍不受太阳和恒温的需要，尽可能少地使用空调。房子的中心是一个院子，里面有一个鱼池，其背景为半径3.5米的圆窗，从家庭房间里可以看到3.5米。协会是在印度尼西亚雅加达热带气候中进行形式和程序修改的项目的一个例子。

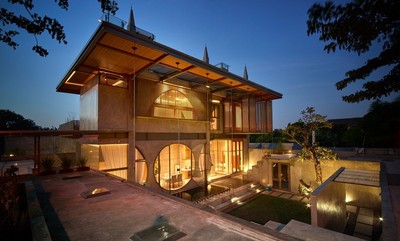

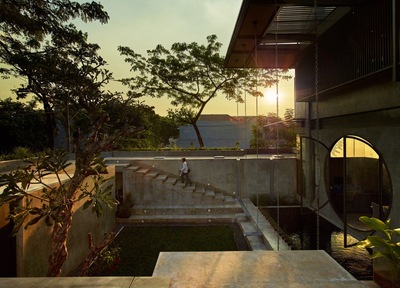

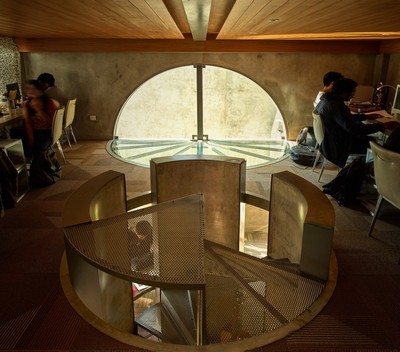

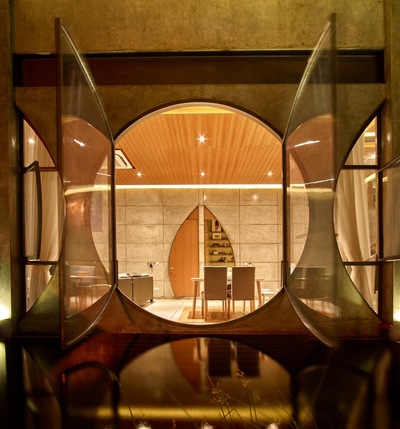

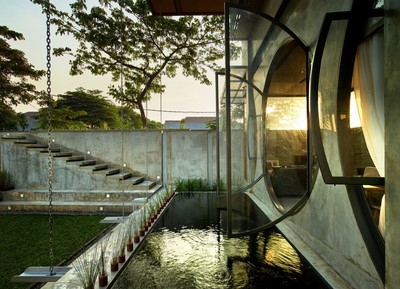

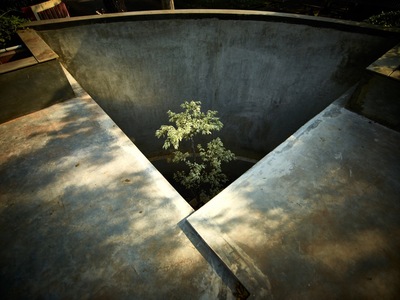

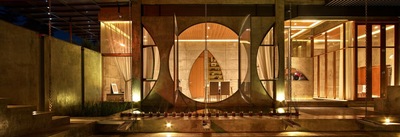

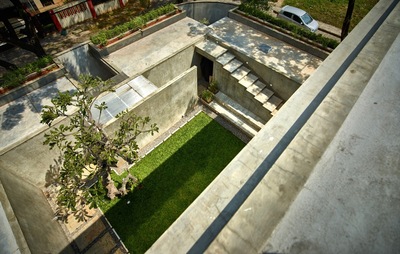

The studio is consist of 6 x 6 m square shape, a small void. The small void has a tapered skylight made of concrete with several small gaps to provide light and air circulation. The library named Omah which is open at the weekend has  the size of 3,4 x 12,3 m. It is sunken at perimeter area, half below the height of 0:00 meters considering public access and the needs that require a condition to keep books from the sun and constant temperature with  the minimum possible to use the air conditioner. At the heart of the house  is a courtyard with a fish pond with a background of the 3.5 m radius circle window with 3.50 m looking through the family room. The Guild is one example of project which exercise the modification of form and program with interlocked circulation  in the tropical climate of Jakarta, Indonesia.
