House A Igor Petrenko

2016-11-13 09:00

结构工程师瓦莱里朱科夫茨制造商装货.多规格少规格

Structural Engineer Valery Zhukovets Manufacturers Loading... More Specs Less Specs

 © Kate Brichkovskaya

c.Kate Brichkovskaya

架构师提供的文本描述。A房位于明斯克边境附近。

Text description provided by the architects. House A is located near the border of Minsk.

主要目标是为一个家庭建造一个舒适和实用的家。房子的设计必须没有不必要的装饰，使用“干净”的天然和美丽的老化材料，如木材，混凝土，玻璃。后来，房主将这种风格的名称定为“功能极简主义”。

The main objective was to project a comfortable and functional home for one family. The house had to be designed without unnecessary decoration with the use of "clean" natural and beautifully-aging materials, such as wood, concrete, glass. Later, the owner of the house has formulated the title of this style as "functional minimalism".

 © Kate Brichkovskaya

c.Kate Brichkovskaya

房子是一个立方体，嵌在山坡上。墙体材料是钢筋混凝土(一楼外墙)和砖。楼板是整体钢筋混凝土。窗户和木质正面之间的垂直表面是由水泥纤维板和隐蔽紧固板构成的。立面涂饰的主要材料是落叶松，它含有一种物质，可防止紫外线辐射，但不能防止自然老化。这使得房子在每一个季节都有不同的外观。

The house is a cube, embedded into the hillside. Wall materials are reinforced concrete (the outer walls of the 1st floor) and a brick. Floor slabs are monolithic reinforced concrete. Vertical surfaces between the windows and wooden facades are made of cement-fiber panels with concealed fastening. The main material of the facade finishing is larch saturated with a substance, which protects from ultraviolet radiation, but does not prevent natural aging. This allows the house to appear differently in each of the seasons.

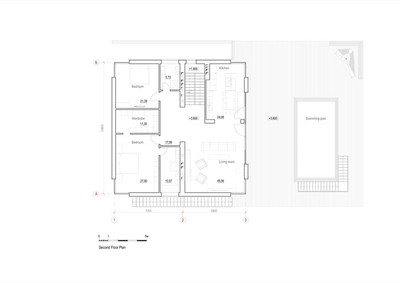

 Second Floor Plan

二层平面图

在网站的西部，从路边，有一个客人停车和入口处的房子。在一楼是一个车库，走廊，储藏室，锅炉房，退出桑拿室到室外露台与游泳池，这是相邻的房子在东边。二楼有两间卧室，客厅和厨房-餐厅。客厅的壁炉是根据房子正面的比例设计的。壁炉的下部是一片不锈钢，悬停在地板上。

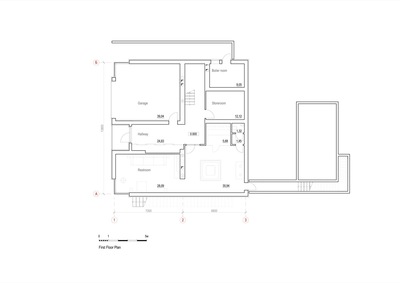

In the western part of the site, from the side of the road, there is a guest parking and entrance to the house. On the ground floor is a garage, hallway, storage room, boiler room, exit the sauna room to an outdoor terrace with a swimming pool, which is adjacent to the house on the east side. On the second floor are two bedrooms, living room and kitchen-dining room. Fireplace in the living room with a bar is designed according to the proportions of the facade of the house. The lower part of the fireplace is a sheet of stainless steel, hovering above the floor.

 © Kate Brichkovskaya

c.Kate Brichkovskaya

在房子的东侧，一个客厅和一个厨房餐厅可以进入室外露台，有游泳池和烧烤区。落叶松覆盖的露台。雕塑，结合烧烤和桌子的功能，是由不锈钢制成的，厚度为10毫米，在柚木中插入。

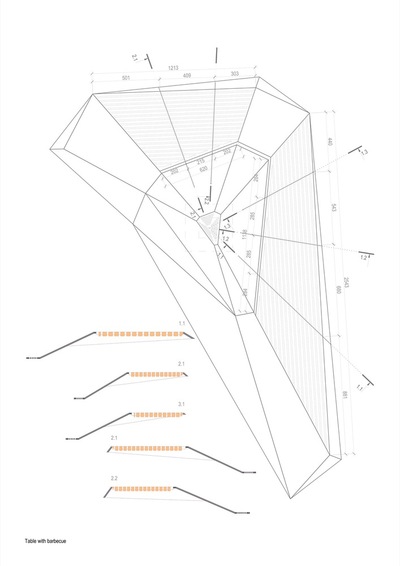

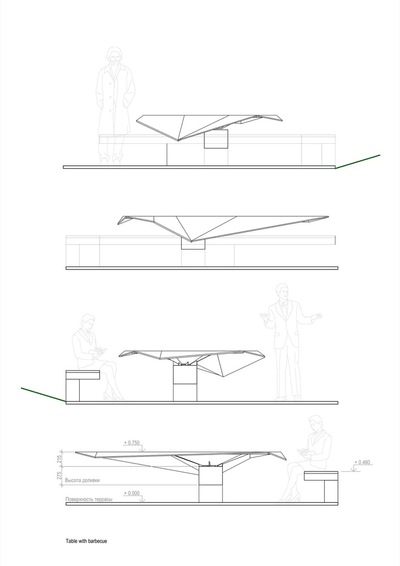

On the east side of the house, a living room and a kitchen-dining room have access to an outdoor terrace with swimming pool and barbecue area. Cover terrace made of larch. The sculpture, which combines the functions of a barbecue and a table, was made of stainless steel with a thickness of 10mm with inserts in teak.

 © Kate Brichkovskaya

c.Kate Brichkovskaya

三楼有两间卧室和一间可以看到客厅的开放式图书馆。三楼上方是一个露台，可以看到周围地区的壮丽景色。

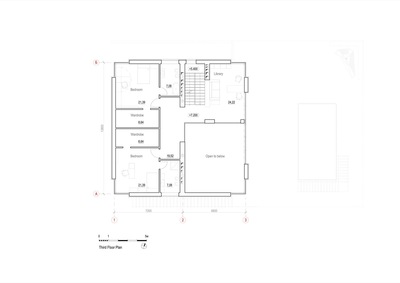

On the third floor there are two bedrooms and an open library with living room view. Above the third floor is a terrace with a magnificent view of the surrounding area.

 © Kate Brichkovskaya

c.Kate Brichkovskaya

产品描述：与朔伊科结构釉，我想创造一个固体玻璃立方体的所有四个方面与巨大的木质表面的效果。

Product Description. With Schüco Structural Glazing I wanted to create the effect of a solid glass cube held on all four sides with massive wooden surfaces.
