Dra. Campoy Dental Clinic Jaime Sepulcre Bernad
2017-01-16 06:00
© David Frutos
(C)戴维·弗鲁托斯
架构师提供的文本描述。在一个完全方形的透明房间(15x15m)上,有四个中央支柱,该项目建议将未来诊所的结构按非常相似的三个方案波段进行:

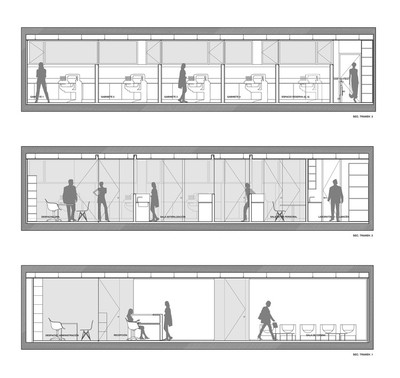

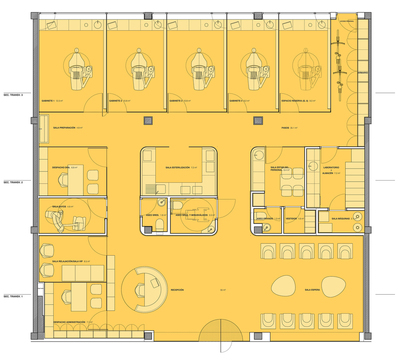

Text description provided by the architects. On a perfectly square diaphanous room -15 x 15 m- with four central pillars, the project proposes the structuring of the future clinic in three programmatic bands of very similar proportions:
等候区:
Waiting Area:
第一乐队是最公开的,它被访问,基本上包括接待处和一个大的等候室。所有这些慷慨的接待和等待空间,透过构成正面的大圆圈,向外广场打开了它的视野。接待,组织在一个圆形的家具,成为这个第一个空间的中心,并从它控制它的运作。招待会结束后,有一个小型的行政办公室和一个小型的休闲室。
The first band is the most public, which is accessed and basically contains the reception and a large waiting room. All this generous space of reception and waiting opens its views towards an outer square through the great circles that make up the facade. The reception, organized in a circular piece of furniture, becomes the centerpiece of this first space and from it is controlled its operation. After the reception, there is a small administration office and a small relaxation room.
© David Frutos
(C)戴维·弗鲁托斯
牙科空间:
Dental Space:
最亲密和保护部分的诊所是适当的临床带,出现在后面的正面面对一条林荫大道。这个牙科保健空间是由一个由五个橱柜组成的电池,在视觉上互相连接。在这个乐队中,也出现了一次二次访问,供人员专用。
The most intimate and protected part of the clinic is the properly clinical band that appears alongside the back facade facing a boulevard. This dental care space is composed of a battery of five cabinets connected to each other visually. In this band also appears a secondary access for exclusive use of the personnel.
© David Frutos
(C)戴维·弗鲁托斯
服务器区域:
Server Area:
最后,在最外向和更内向的空间之间,出现了一个中间带,它是由过滤器构成的,包含了所有适当的仆人。这个仆人带是由消毒室进行的,而牙科办公室的运作正是围绕着消毒室进行的。这个乐队还包括射线室、实验室、发动机室、工作人员室、衣柜、医生办公室和病人厕所。
Finally, between the most extrovert and the more introverted space appears an intermediate band that makes of filter and that contains all the uses properly servants. This servant band is carried out by the sterilization room around which the functioning of the dental offices gravitates. In this band are also the ray room, the laboratory, the engine room, the staff room, the wardrobe, the office of the doctor and the toilets for patients.
© David Frutos
(C)戴维·弗鲁托斯
三种材料:
Three materials:
三种物质观念将这个空间正式化为连续空间-恒定高度2.70米-:
Three material ideas formalize this space with vocation of continuous space - constant height 2.70 m-:
1/通过使用“玻璃”实现最大透明度的想法;2/唯一看上去松散的部分是构成中间带的三个盒子,它们像金属盒一样变成“铝”;和3/整个平面的地面是一个单一的材料,连续的,温暖的,人,“木材”-这最终是一个良好的层压板-。剩下的,白人。
1 / The idea of achieving maximum transparency through the use of "glass"; 2 / The idea that the only pieces that appear loose are the three boxes that make up the intermediate band and that materialize like metal boxes, of "aluminum"; And 3 / the idea that the whole plane of the ground is a single material, continuous, and warm, human, "wood" - which is finally a good laminate-. And the rest, white.
© David Frutos
(C)戴维·弗鲁托斯
城市标志:
Urban Logo:
立面的想法是取一段诊所的标志,并将其扩大到城市规模。因此,新立面依靠的是一种已经被巩固的企业形象,现在已经具备了城市景观的规模。

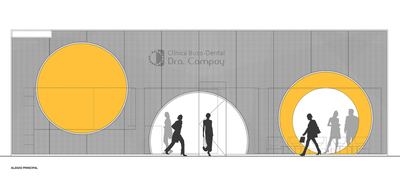

The idea for the facade was to take a fragment of the logo of the clinic and expand it to scale city. The new facade therefore relies on a corporate image that was already consolidated and now acquires an urban scene size.
© David Frutos
(C)戴维·弗鲁托斯
Architects Jaime Sepulcre Bernad
Location Murcia, Spain
Category Clinic
Area 225.0 m2
Project Year 2012
Photographs David Frutos
