AUB Design Studios and Workshops Design Engine Architects

2017-04-08 05:00
 © Jim Stephenson
吉姆·斯蒂芬森
架构师提供的文本描述。AUB设计工作坊
Text description provided by the architects. The AUB Design Workshops & Studios Conversions consist of the transformation of two former on-campus halls of residence, originally constructed in 2001, into modern studio and teaching space for Arts University Bournemouth’s internationally renowned higher education courses.
 Courtesy of Design Engine Architects
设计引擎建筑师
该机构的成功,以及高等教育需求的更广泛变化,促使重新评估了作为设计引擎2009年对大学未来总体规划的一部分的大厅的使用情况。
The success of the institution, and the wider changing demands of higher education, instigated a reappraisal of the Halls’ use as part of Design Engine’s 2009 vision for the future masterplan for the University.
 © Jim Stephenson
吉姆·斯蒂芬森
大纲简介旨在促进校园的更广泛改造,重新使用原有功能已成为多余的建筑物,但其结构和封套基本保持完好。
The outline brief was to facilitate the wider transformation of the campus with the re-use of buildings whose original function had become redundant, but whose structure and envelope remained largely sound.
 © Jim Stephenson
吉姆·斯蒂芬森
通过合作,设计小组进行了一项方案分析,表明通过保留现有建筑物,大学既可以每年提供新的教学空间,又可以大大节省新建筑的费用。
Collaboratively, the design team undertook a programme analysis that demonstrated how through the retention of the existing buildings the University could both achieve delivery of new teaching space each year, and at significant saving against that of a new building.
 Floor Plan


该大学的模型制作、绩效补充和高等教育系的准备工作被确定为在其专业和技术要求方面具有共同性,通过共享设施可以减少不必要的重复。DesignEngine领导了一系列利益相关者设计论坛,帮助他们在与现有建筑合作的限制范围内为他们的需求制定一份简报。
The university’s Model-Making, Performance Make-Up and preparation for Higher Education departments were identified as having commonality in their specialised and technical requirements, and by sharing facilities could reduce unnecessary duplication. Design Engine led a series of stakeholder design forums, helping formulate a brief for their needs within the constraints of working with an existing building.
 © Jim Stephenson
吉姆·斯蒂芬森
重量级的,高度维修的机械造型和假肢车间集中在底层。这使一个新的钢框架的结构战略能够插入外砌体表皮,从而允许拆除承重单元,创建大型开放式工作室,这反过来又促进了拟议的自然通风策略。
Heavyweight, highly-serviced mechanised modelling and prosthetic workshops are concentrated on the ground floor. This enables a structural strategy for a new steel frame to be inserted with the outer masonry skin, thus allowing the removal of cellular loadbearing partitions to create large open plan studios, which in turn facilitate the proposed natural ventilation strategies.


一系列的底层扩展3D打印溢出到重新美化庭院。这些扩展就像商店橱窗,为课程的产出做广告;满足展示工作的愿望,并在更广阔的校园内继续进行思想交流。

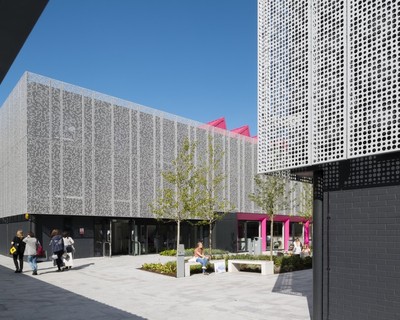

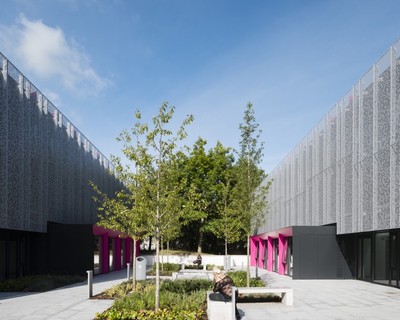

A series of ground floor extensions for 3D printing spill out onto re-landscaped courtyards. These extensions act as shop windows advertising the output for the courses; fulfilling a desire to showcase work and continue the cross-fertilisation of ideas across the wider campus.
 © Jim Stephenson
吉姆·斯蒂芬森
这些建筑的顶部是一系列锯齿形的北向屋顶灯,位于一个凸起的屋顶平台上,为新的绘图工作室提供了自然采光,供模特制作、插图和时装设计学生使用。他们穿着远距离粉色衣服,指的是特征表面和平面的概念,强调对现有织物的新干预。

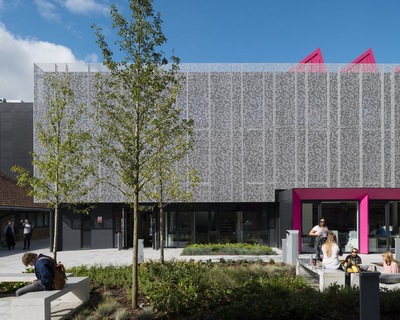

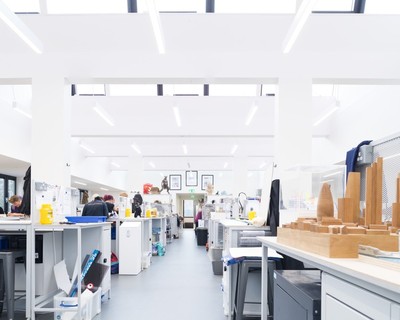

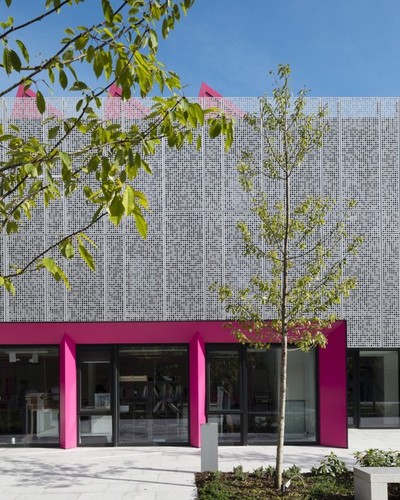

The buildings are capped by a series of saw-tooth north-facing roof lights atop a raised roof podium providing even natural daylighting to new drawing studios for model-making, illustration and fashion design students. Clad in telemagenta pink, they point to a concept of feature surfaces and planes that highlight new interventions into the existing fabric.
 © Jim Stephenson
吉姆·斯蒂芬森
在一楼和二楼的现有建筑物上用一个穿孔的铝幕完成了改造。一个两个大小的圆形孔的图案形成了一个随机排列,延伸到上面的立面。在以前的窗户布置和新的钢结构的网格内工作,50%的整体自由区域模式允许持续的排气,同时调节过多的太阳能增益。

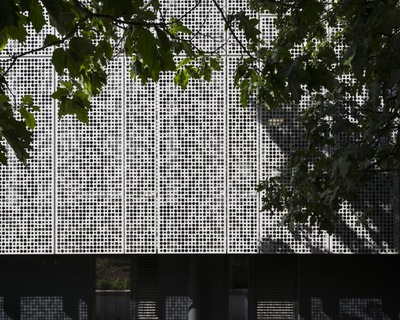

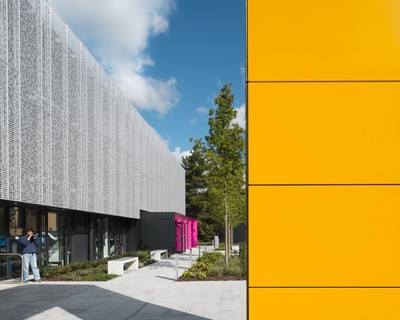

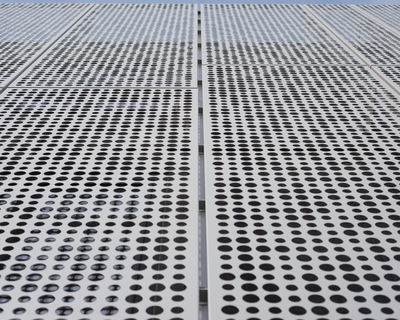

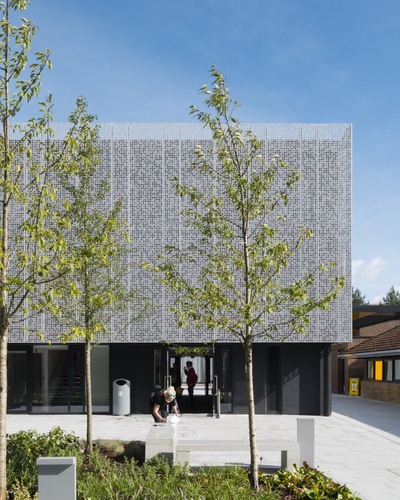

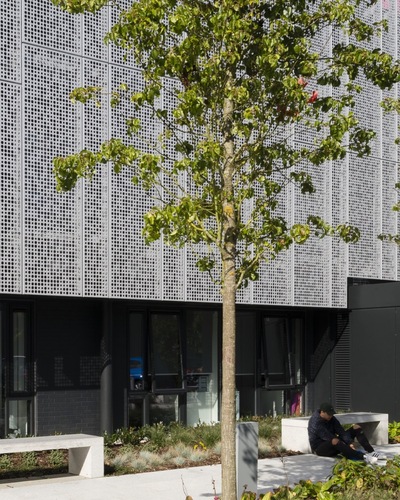

The transformation of the building is completed with a perforated aluminium veil over the existing building at first and second floor. A pattern of two sized circular apertures is formed into a randomised arrangment that extends across the upper façades. Working within the grids of both the former window arrangements and new steel structure, the 50% overall free area pattern allows continued venting whilst regulating excessive solar gain.
 © Jim Stephenson
吉姆·斯蒂芬森
该项目在方案上取得了巨大的成功,使它能够在其超额认购的创造性课程的成功基础上再接再厉,促进更广泛的校园更新战略方案。
Delivered on programme, the project has been a huge success for the University, allowing it to build on the success of its oversubscribed creative courses and facilitating a wider strategic programme of campus renewal.





















Architects Design Engine Architects
Location Wallisdown, Poole BH12 5HH, United Kingdom
Category Other Facilities
Area 3000.0 m2
Project Year 2016
Photographs Jim Stephenson
