Hunters View Housing Blocks 5 - 6 Paulett Taggart Architects

2017-05-24 17:00
 © Bruce Damonte
布鲁斯·达蒙特
架构师提供的文本描述。这两个新的负担得起的家庭住房在亨特视图,是旧金山雄心勃勃的希望SF计划的第一阶段的一部分,重建最糟糕的旧金山的恶化,犯罪猖獗的公共住房。与负担得起和市价住房的混合,猎人视图重建正在三个阶段完成,以使现有的租户留在附近。我们为两个城市街区的设计将53个单元组织成两个L型建筑,每个街区形成连续的街道前沿,围绕着两个安全的共享庭院。每一栋建筑都有层叠的多层联排别墅,它们与街道的坡度一起缓缓而下,反映了旧金山的规模、节奏和质地。
Text description provided by the architects. These two new blocks of affordable family housing at Hunters View are part of the first phase of San Francisco’s ambitious HOPE SF program to rebuild the worst of San Francisco’s deteriorated, crime- ridden public housing. With a mix of affordable and market-rate housing, the Hunters View Redevelopment is being completed in three phases in order to allow the existing tenants to remain in the neighborhood. Our design for two city blocks organizes 53 units into two L-shaped buildings per block to form continuous street frontages and surround two secure shared courtyards. Each building contains stacked multi-level townhouses that step down with the street’s slope and reflect the scale, rhythm, and texture of San Francisco.

社区外展,我们的团队举行了多次社区会议与长期猎人视图的居民在整个设计过程中,以确定他们的希望,项目和解决他们的关切。通过外联,我们确定了大多数居民共同面临的关键问题,包括:(1)渴望与周围社区和工作建立联系;(2)对异地搬迁的焦虑;(3)需要改善安全性;(4)对室内空气质量良好、无病虫害和霉菌的健康建筑的渴望。
Community Outreach Our team held multiple community meetings with long-time Hunters View residents throughout the design process to identify their hopes for the project and address their concerns. Through our outreach, we identified key issues common to most residents that included: 1) Desire for connection to surrounding communities and jobs; 2) Anxiety about off-site relocation; 3) Need for improved security; and 4) Desire for healthy buildings with good indoor air quality and free of pests and mold.
 © Bruce Damonte
布鲁斯·达蒙特
响应设计,总面积67,800平方英尺和53套家庭住房,包括2,3,4和5个卧室单位,每个建筑物包含多层和堆叠的多层单元。单位的位置是为了利用陡峭的等级变化,并允许居民进入上下两个单位,而不需要爬一个以上的楼梯。这些公寓楼的设计看起来像一群单独的房子,每一栋都有私人的或共用的门廊。

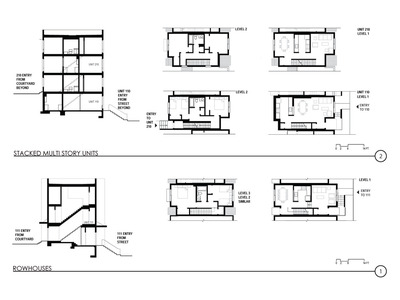

Responsive Design With a combined gross area of 67,800 square feet and 53 units of family housing that include 2, 3, 4, and 5 bedroom units, each building contains multi-level and stacked multi-level units. Units are sited to take advantage of steep grade changes and allow residents to enter both the lower and upper units without the need to climb more than one flight of stairs. The apartment buildings are designed to look like groups of individual houses, each with private or shared entry stoops.

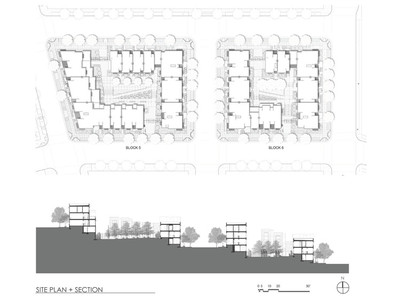

 Site Plan + Section
地盘图则组
在整个场址,通过保持高能见度和空间连接的结合来解决安全和安保问题。每个中街区庭院有两个开口,位于战略位置,以便从街道上提供最大的能见度。庭院是每个街区的聚集空间。通常使用的洗衣房和邮件室位于庭院外,以及许多单元入口。居民的反馈已经证实,安全的庭院帮助他们了解他们的邻居,并在每个街区内建立一种安全感和社区意识。
Throughout the site, safety and security are addressed by maintaining a combination of high visibility and spatial connections. Two openings into each mid-block courtyard are strategically located to provide maximum visibility from the street. The courtyards are the gathering spaces for each block. Common-use laundry and mailrooms are located off the courtyards as well as many unit entries. Feedback from residents has confirmed that the secure courtyards are helping them to get to know their neighbors and build a sense of safety and community within each block.
 © Bruce Damonte
布鲁斯·达蒙特
可持续性是猎人观设计的核心原则之一,指导建筑和场地的设计。猎人视图是认证的LEED社区发展和个别建筑物是绿点评级。每一个可持续的实践应用于全面的设计和建设过程,有助于确保社区和建筑物是持久的,节能的,并为猎人视图家庭提供一个高质量的健康环境。
Sustainability Sustainability is one of the core principles for the design of Hunters View, and guides the design of both the buildings and site. Hunters View is certified LEED for Neighborhood Development and individual buildings are Green Point Rated. Each sustainable practice applied to the comprehensive design and construction process helped ensure that the neighborhood and buildings are durable, energy efficient, and provide a high-quality healthy environment for Hunters View families.

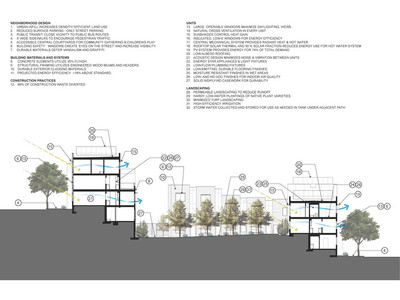

 Section Scheme
分段计划














Architects Paulett Taggart Architects
Location San Francisco, CA, United States
Category Apartments
Architects in Charge Paulett Taggart, Roselie Enriquez Ledda, Chenglong Tsai
Area 67800.0 ft2
Project Year 2015
Photographs Bruce Damonte
Manufacturers Loading...
