Wulf House Pe+Br+Re arquitectos

2017-06-01 15:00

 © Nico Saieh

c.Nico Saieh

架构师提供的文本描述。武夫之家是一个380平方米的单一家庭住宅，位于奎兰托镇，弗鲁蒂利亚尔。

Text description provided by the architects. Wulf House is a 380 m2 single family home, located in the town of Quilanto, Frutillar.

 © Nico Saieh

c.Nico Saieh

土地和周围环境提供了将与景观和景观有关的各个方面结合起来的可能性，同时也提供了一个在太阳能曝光率方面有利于能源效率的场所，并与冬季的强降雨和大风有关。

The land and the surroundings gave the possibility of combining aspects related to the view and landscape along with achieving a site that favors energy efficiency aspects in terms of solar exposure, and related to strong rain and wind in winter.

这片陡峭的土地形成了一个通向Llanquihue湖的自然阳台，该阳台被用来定义三个层次，以便最大限度地利用这些土地。这些级别还允许根据空间需求的用途和性质分配和组织空间需求。这种布局是由一层中央楼层定义的，该楼层有通道和公用空间，你可以从那里上到有卧室和屋顶甲板的第二层，也可以下到地下室，有特定用途的空间，比如办公室和车间。

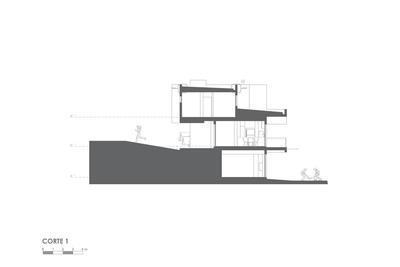

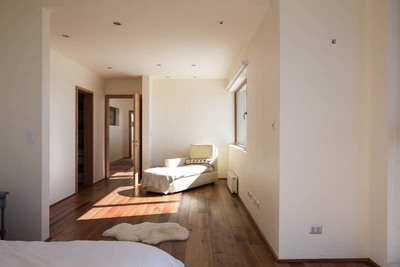

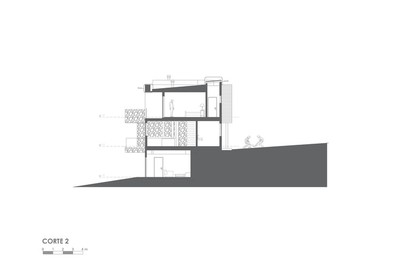

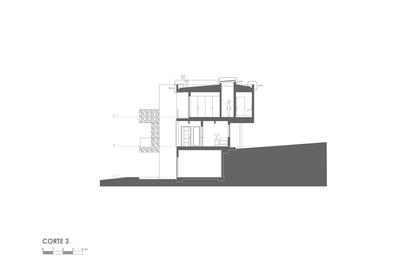

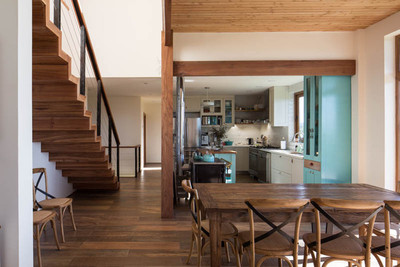

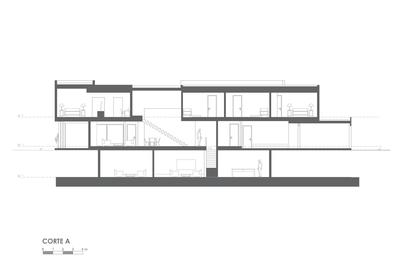

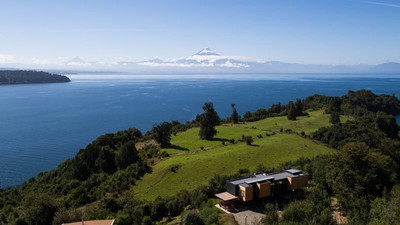

The lands steep slope defines a natural balcony towards Lake Llanquihue which was used to define 3 levels that allow to make the most of the land. These levels also allow the distribution and organization of space requirements according to their use and character. The distribution is defined by a central floor with access and common use spaces, from which you can go up to a second floor with bedrooms and roof decks, or go down to a basement with specific use spaces such as offices and a workshop.

 © Nico Saieh

c.Nico Saieh

水平和子层的定义也被外推到天花板，这些天花板被确定为产生第四层视点的可居住表面，其中突出了俯瞰湖泊和火山的阳台视角的条件。

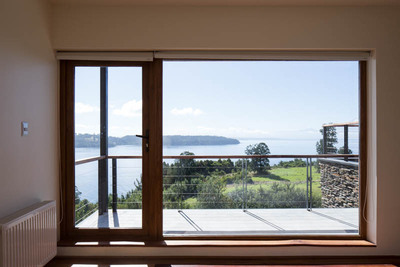

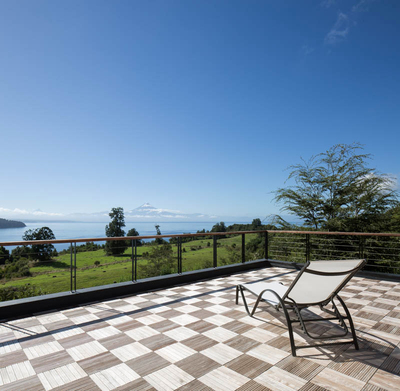

The definition of levels and sub levels is also extrapolated to the ceilings which are determined as habitable surfaces generating a fourth level viewpoint, where the condition of a balcony viewpoint overlooking the lake and volcanoes is accentuated.

 © Nico Saieh

c.Nico Saieh

这三层楼高分布在一个环流结构上，定义了一个向北方向的地面，切断了这股主要的风，确定了向西和向东的两个主要立面，这是根据光线的要求和白天的使用来决定节目的分布。主要居住场所和卧室向东，工作空间和互补区域向西。

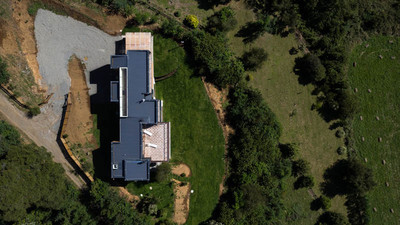

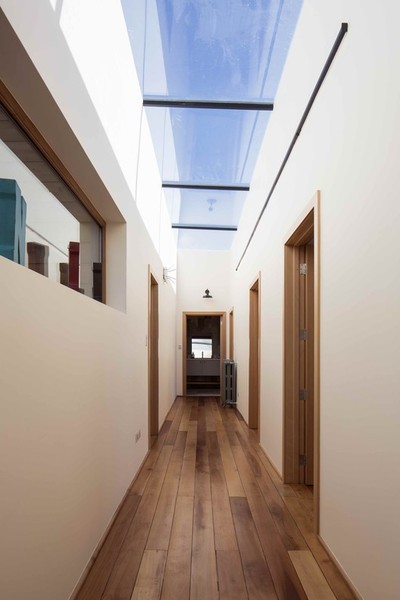

These three floor levels are distributed along a circulation structure, defining a floor that is oriented in all its length towards the north, cutting this predominant wind, defining two main facades exposed towards the west and the east.This exposure determines the program distribution according to the light requirements and its daytime use. The main living places and bedrooms are towards the east, and the work spaces and complementary areas towards the west.

 © Nico Saieh

c.Nico Saieh

 © Nico Saieh

c.Nico Saieh

根据其在土地上的作用和位置，选择和组合不同的建设系统。该建筑是由半埋钢筋混凝土基础发展而来的，它决定了房屋的其余部分，并作为基础，建筑在金属结构骨架上，由木质结构支撑和补充。绝缘系统是热和纤维素外壳。这些与补充为此目的设计的节能方面是相关的，并与协调所有专业的控制系统和领域相结合。

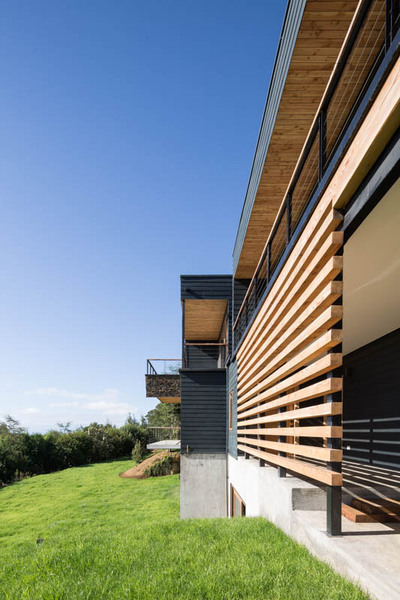

Different construction systems are chosen and combined according to their role and location on the land. The construction grows from a semi-buried reinforced concrete base which determines and serves as base to the rest of the house that is built on a metallic structural skeleton, which is supported and complemented by wooden structures. The insulation systems are thermal and cellulose enclosure. These are relevant in complementing the energy efficient aspects designed for this purpose and are combined with control systems and domotics that coordinate all the specialties.
