架构师提供的文本描述。干净的线条和倾斜的几何图形决定了这1500平方米的设计。艾哈迈达巴德的平房。建筑词汇将现代主义的原则与对当地地理和气候的传统反应结合起来。

Text description provided by the architects. Clean lines and angled geometry dictates the design for this 1500 sq.mt. bungalow at Ahmedabad. The architectural vocabulary integrates the principals of modernism with traditional responses to the local geography and climate.

 © Radhika Pandit

拉迪卡·潘迪特

设计设想的顶层是一个漂浮的白色质量与挖空和相互作用。为了将运动和动力注入到结构中，在水平和垂直尺寸上都引入了角面。在一些地方，这个轮廓向前流动，向上上升，沿着某些正面形成尖锐的角度，同时它也向下延伸，形成美化花坛的直线。

The design envisages the top floor as a floating white mass with and interplay of scooped hollows. In order to infuse movement and dynamism into the structure angular planes were introduced in both the horizontal and vertical dimensions. At some places this profile flows forward and lifts up to create sharp angles along certain facades while it also flows down extending to form the linear lines of the landscaped flower beds.

 © Radhika Pandit

拉迪卡·潘迪特

针对恶劣的气候条件，采用了一些被动设计原则。双层墙在第一级有助于隔离严寒的夏天和寒冷的冬天，同时为玻璃开口提供天气保护。此外，第一层是悬挑向外提供一个天气遮阳的地面水平。沿北立面引入了最大的玻璃，而南面和西面则无法穿透。

In response to the harsh climatic conditions a number of passive design principles were adopted. Double walling on the first level helps insulate against the harsh summers and cold winters while offering weather protection for the glazed openings. Additionally, the first floor is cantilevered outward providing a weather shade for the ground level. Maximum glazing has been introduced along the north facade while the south and west faces have been kept impenetrable.

 © Radhika Pandit

拉迪卡·潘迪特

房子位于地块的南端，远离入口，有足够的深度来感知结构。这也是一个宏伟的入口，修剪好的草坪通向入口门廊。

The house was positioned at the southern end of the plot, away from the entry giving enough depth to perceive the structure. This also doubled up as a grand entrance with manicured lawns leading to the entrance porch.

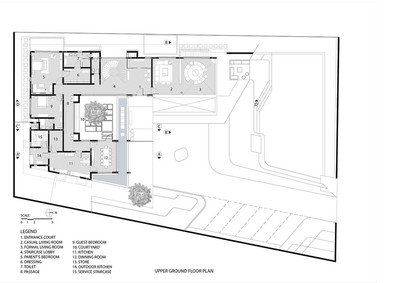

 Ground Floor Plan

适宜居住的空间规划在中央庭院周围，使交叉通风跨越最大的房间。沿一侧包裹的浅水有助于冷却交叉的微风，从而降低了周围的温度，并创造了一个舒适的微气候。

The habitable spaces are planned around a central courtyard enabling cross ventilation across maximum rooms. A shallow water body which wraps along one side helps cool the cross breeze thus lowering the ambient temperature and creating a comfortable micro-climate.

 © Radhika Pandit

拉迪卡·潘迪特

景观是设计时考虑的一个关键因素。它们被用来定义方向，并将景观与建筑结构连接起来。双高空间边缘树木的策略性放置能遮阳

Landscape was a key element considered while designing. These were used to define direction as well as connect the landscape with the built structure. Strategic placement of trees along the fringe of the double height spaces enabled sun shading & cooling along with a thick plantation along the periphery of the plot to maintain privacy from neighbors.

材料调色板的选择是为了补充和借用优雅干净的线条的结构。木覆层能给地面层带来温暖，白色的漆面会使第一层变得轻盈。

The material palette was chosen to complement and lend to the elegant clean lines of the structure. Wood cladding to bring warmth to the ground level and white paint finish to lend a lightness to the first level.

 © Radhika Pandit

拉迪卡·潘迪特

Architects KNS Architects

Location Ahmedabad, India

Category Houses

Lead Architects KNS Architects (Ar. Kanhai Gandhi, Ar.Neemesh Shah, Ar.Shresht Kashyap)

Area 1500.0 m2

Project Year 2015

Photographs Radhika Pandit

Manufacturers Loading...
