架构师提供的文本描述。客户给出的前提是开发一个具有最佳成本和效益关系的项目。然而，不放弃一项具有很高质量的建筑与当代建筑，同时，不偏离其他现存的房屋与共管公寓，创造了一种舒适的气氛。客户是一对年轻夫妇，有三个孩子。他们要求的另一件事是创造一所房子，思考孩子们的欢乐：宽敞的房间，宽敞的空间，让孩子们可以跑步和玩耍，并且能看到所有的社会和外部区域，这样他们就可以盯着他们了。在要求功能、对共管公寓的限制和场地坡度的限制等方面，我们开发了该项目。

Text description provided by the architects. The premisse given by the clientes was to develop a project with the best cost and benefit relation. However, not giving up a construction with great quality with a contemporary architecture that, at the same time, does not deviate from the other existent houses from the condo, creating a cozy atmosphere. The clients are a young couple with three children. Another thing they asked was to create a house thinking about the children’s conviviality: wide rooms with generous spaces for the children to run and play and with the best view of all the social and external areas so they could keep na eye on them. In function of the requests, restrictions of the condo and limitations of the field with slope, we developed the project.

 © Adriano Escanhuela

c.阿德里亚诺·埃斯卡姆胡拉

自第一次研究以来，我们考虑了一个L植入，将两个不同的模块划分为两个不同的模块，将社会领域的教化结合起来。我们把L的顶点定位在场地的右上角，这样，我们就可以在场地的中心和左边留下一个宽敞的空间，在那里我们创造了游泳池、桑拿浴室、更衣室和花园。

Since the firsts studies, we thought about a L implantation, dividing in two distincts modules, uniting the edifications by the social areas. We located the vertex of the L at the superior right corner of the field and, with that, we could leave a generous space on the center and left side of the field, where we created the pool, sauna, changing room and the garden.

为了教化，我们选择了不需要使用石膏和油漆的砖制关闭，在施工阶段节省了大量的费用，并消除了今后的维修。但是，由于所选择的涂层是外部和内部涂饰，因此采用高质量的工艺是非常重要的。

For the edification, we opted for brickwork closure that did not need the use of plaster and painting, gerating significant savings in the construction phase and eliminating future repairs. But, for that, it was fundamental to utilize a high quality workmanship because the coatings chosen were external and internal finishing.

 © Adriano Escanhuela

c.阿德里亚诺·埃斯卡姆胡拉

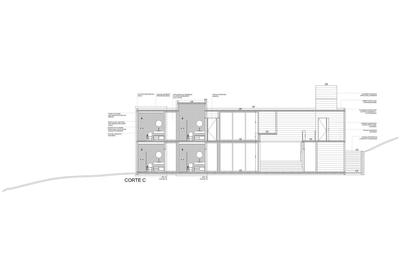

因此，我们选择了在两层的模块中使用明显的结构混凝土块，该模块位于家庭影院，两套客人套房位于一楼，一套主套房，两间为孩子们准备的卧室，一间公共浴室和一间上层支持套房。

Therefore we opted to use the apparent structural concrete block in the two-floor module that is destinated to the home theater and two guests suites at the ground floor and one master suite, two bedrooms for the children with a common bathroom and one support suite at the upper floor.

 © Adriano Escanhuela

c.阿德里亚诺·埃斯卡姆胡拉

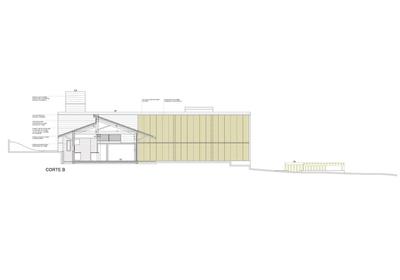

在社会单元，只有一层楼和一米以上的结构模块，我们使用木材结构，拆除砖，我们发现的地区和瓷砖屋顶，创造了与其他房屋的共管公寓。为了给它一种当代的氛围，我们选择了使用OSB衬里和表面电极来安装电气设备，而不是使用普通的石膏板衬里。

At the social module, only with a ground floor and one meter above the structural module, we used wood structure, demolition brick that we found by the region and tile roofing, creating a conection with the other houses of the condo. To give it a contemporary atmosphere, instead of using a convencional plasterboard lining, we chose to use OSB lining and apparent electrodes for electrical installations.

 © Adriano Escanhuela

c.阿德里亚诺·埃斯卡姆胡拉

社交模块设想：客厅、餐厅、厨房、服务区、浴室和服务室。外面的烧烤区几乎与厨房的柜台结合在一起，只有大木头和玻璃框架隔开。在外边，我们创造了一个吊床的地方，在餐桌旁有一棵美丽的树，他们可以在饭后休息。在这个区域的前面，是有无限边缘的游泳池，旁边是位于桑拿和更衣室的“木箱”。我们希望这个“木箱”在视野中干扰得更少，所以我们把它埋在地上，在战场上创造了一个更柔和、更和谐的体积。这使我们有可能利用它的屋顶在夜间沉思，为我们开发的外部壁炉创造了合适的地点。据我们所知，客户喜欢这个地方，他们可以和孩子们一起度过寒夜，讲故事，看星星。

The social module contemplates: living room, dining room, kitchen, service area, bathroom and service room. The external barbecue area is almost integrated to the kitchen’s counter, only separated by big wood and glass frames. At the external area we created a place for hammocks with a beautiful tree beside the dining table where they can rest after the meals. In front of this area, is the pool with infinity edge and, next to it, the “wood box” that locates the sauna and changing room. We wanted that this “wood box” interfered the less possible on the view, so we buried it on the ground creating a softer and more harmonic volume on the field. That gave us the possibility to use it’s roof for contemplation at night, creating the right spot for the external fireplace, developed by us. As far as we know, the clients love this place, where they can spend the winter nights with the children, telling stories and watching the stars.

 © Adriano Escanhuela

c.阿德里亚诺·埃斯卡姆胡拉

Architects PM Arquitetura + Bruno Pimenta

Location Brazil

Category Houses

Authors Paulo Mencarini, Bruno Pimenta

Area 500.0 m2

Project Year 2016

Photographs Adriano Escanhuela
