KS Residence Arquitetos Associados

2017-07-16 12:00

 © Joana França

(Joana Fran A)

架构师提供的文本描述。最初对隐私的渴望和对当地条件的考虑指导了这座住宅的设计，该住宅已关闭，但向三层楼的大内部空间开放，目的是建立空间财富，使天花板高度多样化，空气容量大，环境舒适性更好。

Text description provided by the architects. The initial desire for privacy and the consideration of local conditions guided the design of this residence, closed out, but open to a large internal space of three floors with the purpose of establishing spatial wealth with a variety ceiling heights, large air volumes and better environmental comfort as a consequence.

 © Joana França

(Joana Fran A)

所创造的建筑体积最大限度地探索了管理共管公寓建筑的参数：前面最少5米，底部4米，两边两米，离一楼最高七米半的高度(因为它的最高高度是一米二十五公分)。

The created volume explore to the maximum the parameters that regulate the construction of the condominium buildings: minimum setbacks of five meters at the front, four meters at the bottom, two meters at the sides and a maximum of seven meters and a half height from the level of the first floor [since it is at a maximum height of one meter and twenty-five centimeters from the level of the natural ground].

 © Joana França

(Joana Fran A)

通过这种方式，我们创造了三层楼。地下(半埋)是车库和工作室；在地面(半高架)，社会和生活区；上层，亲密地区。

In this way three floors were created. In the underground (semi buried) are garage and ateliers; At the ground level (semi elevated), the social and living areas; And upper, the intimate areas.

 © Joana França

(Joana Fran A)

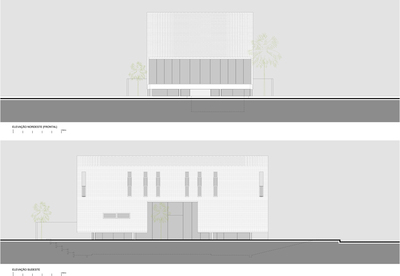

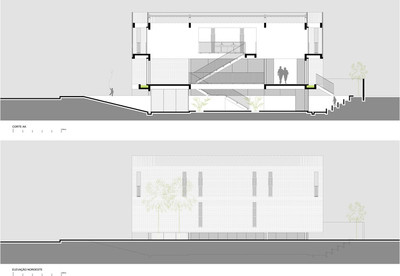

 Section / Facade

部分/正面

 © Joana França

(Joana Fran A)

为了寻求更大的空间多样性和更好的方案安排与体积，它被寻求改变楼层的设计，而不是简单地堆叠它们。在空隙上方，其他楼层上升。在凸起的地面上，两块楼板从一边延伸到另一边，由一座人行桥连接在一起，横向延伸到建筑的横向。在离街道最近的楼板上有起居室和电视/电影院。在底部的楼板上，集成到院子里，是餐厅、厨房和服务区。在二楼，楼板向纵向延伸，从立面延伸到底部，由一座横向的人行桥连接在一起，这座桥是房间和浴室。

The deliberate search for greater spatial variety and better arrangement of the program to the volume, it was sought to vary the design of floors rather than simply stack them. Above the void rise the other floors. On raised ground two slabs extend in the transverse direction of the construction from one side face to another, interconnected by a footbridge. In the slab closest to the street are the living rooms and tv / cinema. In the bottom slab, integrated to the yard, are dining room, kitchen and service area. In the second floor the slabs extend in the longitudinal direction from the facade to the bottom, interconnected by a transversal footbridge, whose are the rooms and bathrooms.

 © Joana França

(Joana Fran A)

作为第一步，该建筑将进行土方开挖，并将其围堵在支柱墙上，为今后的占领创造必要的空间。在这个空隙上，住宅体积上升，柱子和板在钢筋混凝土中，金属瓷砖覆盖在金属结构上。最后，将玻璃和实心砖的关闭方案和外部密封聚集到这一框架中，最终形成住宅的外观。

The construction would have as a first step the soil excavation and its containment by a prop wall, generating the necessary space for the future occupation. On this void rises the residence volume, with pillars and slabs in reinforced concrete and cover in metallic tiles on metal structure. Finally, the closing plans and external sealing in glass and solid bricks are aggregated to this frame, giving the final appearance of the residence.

 © Joana França

(Joana Fran A)

 © Joana França

(Joana Fran A)

砖的分异分页在立面上建立了小开口，允许内部空间的照明和通风。为了确保更大的热舒适性在房子的上部创造了一个永久性的通风带和窗户旁边的地板，提供文丘里效应。

The differentiated pagination of the bricks establishes small openings in the facade that allow the illumination and ventilation of the internal spaces. To ensure greater thermal comfort was created in the upper part of the house a permanent ventilation strip and windows next to the floor, providing the Venturi effect.
