Sebrae MG Studio Prudencio

2017-10-06 17:00
 © Marcelo Donadussi
马塞洛·多纳杜西
架构师提供的文本描述。面对一组原本没有阐明的预先存在,该建筑的建议是一个整合的元素,以创造一个新的访问和新的连接的全球重组。该党认为,方案中确定的前提是在两个部门建立区别:行政部门和活动部门。建筑物的组成是由一个单一的卷,一个行政块,在一个基础上,事件。
Text description provided by the architects. Faced with a set of pre-existences originally not articulated, the proposal for the building is that of an integrating element in order to create a global restructuring of new accesses and new connections. The party considered the premise defined in the program, which defines the distinction building in two sectors: an administrative and an events sector. The composition of the building is defined by a single volume, an administrative block, on a basis, events.
 © Marcelo Donadussi
马塞洛·多纳杜西
该网站的插入正在寻找减少占用面积在底层。在这个故事中,一个大型的主入口广场被设置,目的是通过长廊的延伸来创造一个公共空间,强调建筑物的公共特性。这是有可能的,在地下三层的停车场分配,这些通道在交通较少的街道上。

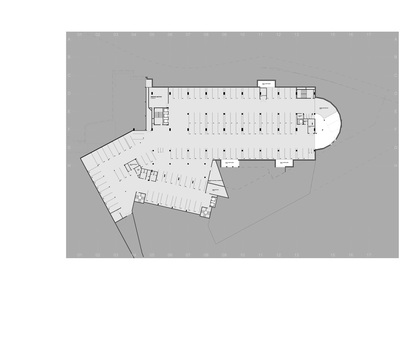

The site insertion is looking for the reduction of occupation area at the ground floor level. In this story, a large main access plaza was located with the intention of creating a public space through the extension of the promenade, emphasizing the public character of the building. The creation of this was possible with the parking distribution in three levels of underground, which access is on the street with less traffic.
 © Marcelo Donadussi
马塞洛·多纳杜西
广场通过门厅进入基地,门厅与活动区相连,创造了在特殊场合独特使用的可能性。作为这个门厅的盖子,有一个绿色的板子,作为新建筑和它的存在之间的新连接的物化。在此基础上,定位了一个大的半透明棱镜,接收行政部门,强调简单成分中单一元素的横向性。考虑到它的使用,前提是最大限度的灵活性,通过使用玻璃隔板,有可能关闭百叶窗。灵活空间的创建允许在整个建筑中重新安排使用。

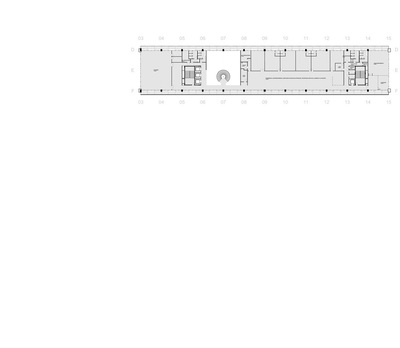

The square gives access to the base through a foyer, which connects to the events area, creating the possibility of a unique use on special occasions. As the cover of this foyer, there is a green slab, which acts as the materialization of the new connections between the new building and its pre-existences. On this basis, a large translucent prism is located, which receives the administrative sector, emphasizing the horizontality of the single element of the simple composition. Considering its use, the premise was the maximum flexibility, achieved through the use of glass partitions with the possibility of closing by blinds. The creation of flexible spaces allows use re-arrangements throughout the building.
 © Marcelo Donadussi
马塞洛·多纳杜西

 © Marcelo Donadussi
马塞洛·多纳杜西
在技术-功能方面,它是在一个规则的多网格0.625m的结构,子模块的许多建设性的组成部分。所采用的结构体系为10×10m网格,由金属梁和混凝土柱组成,采用预制钢板和钢桥面。该建筑是组织在大跨度,这是可能的,因为使用了三层钢桁架框架,位于纵向正面的体积。系泊和刚度是通过横向金属剖面给出的。

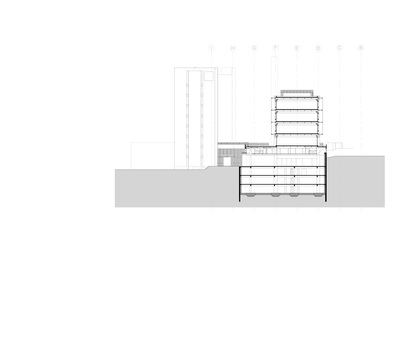

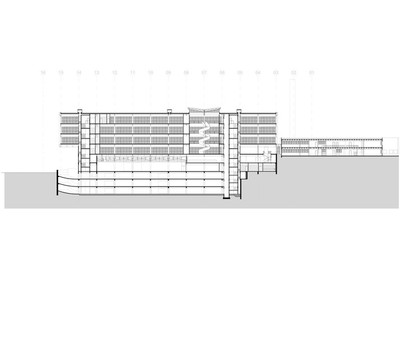

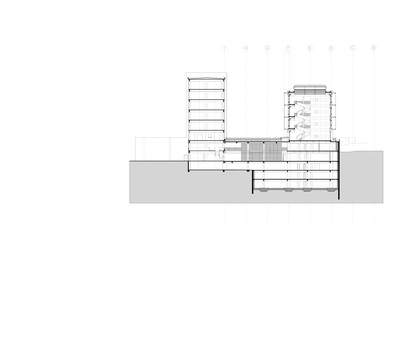

In technical-functional terms, it is structured in a regular multiple mesh of 0.625m, sub-module of numerous constructive components. The structural system adopted, in a mesh of 10x10m, is made up of metal beams and concrete columns with precast steel slabs and steel deck. The building is organized in large spans, which is possible due to the use of a three-story steel trussed frame, located in the longitudinal facades of the volume. The mooring and the stiffness are given through transverse metallic profiles.
 © Marcelo Donadussi
马塞洛·多纳杜西
西北面和东南面的外部封闭由两层组成:带安全玻璃的金属框架和根据每个立面的方向控制半透明的不锈钢筛网。这些层,由一个技术走道分开,创造了一个过渡空间,其中有向上的通风,产生热舒适的内部空间。发光的舒适性是通过滤光器来实现的,从而降低了屏幕提供的辐射的发生率。最后,绿色盖板保证了保温,减少了对公共雨水网络的需求,将收集到的水量保留了一段时间。

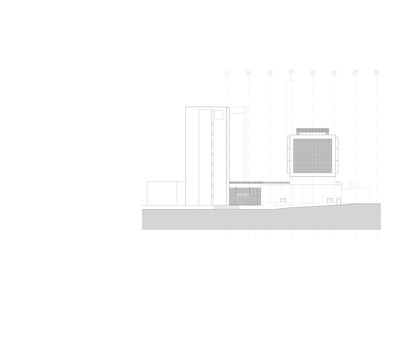

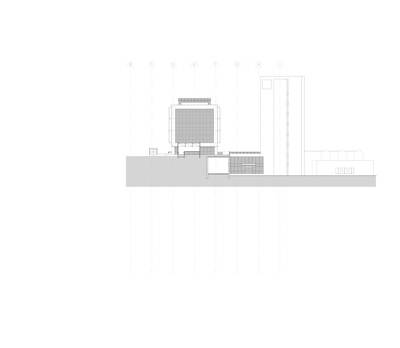

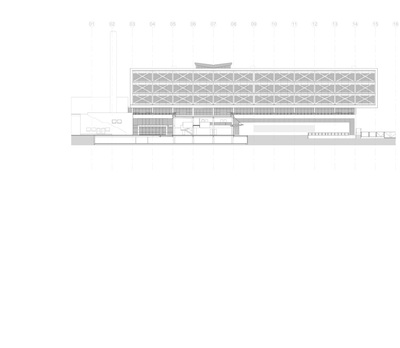

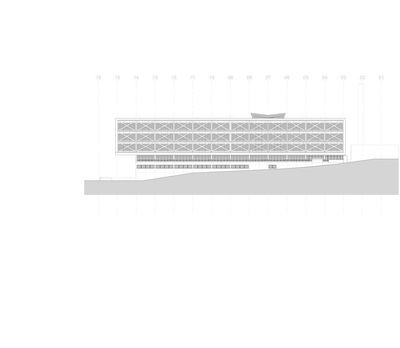

The external closure of the northwest and southeast facades consists of two layers: metal frames with safety glasses and stainless steel screen with controlled translucency according to the orientation of each façade. The layers, separated by a technical walkway, create a transition space in which there is upward ventilation, generating thermal comfort for the interior space. The luminous comfort occurs through the light filter and consequent reduction of the incidence of radiation provided by the screen. Finally, the green cover slab guarantees thermal insulation and reduces the demand on public rainwater networks, retaining for some time the water collected volume.




































Architects Studio Prudencio
Location R. Barão Homem de Melo, 329 - Nova Suíssa, Belo Horizonte, Minas Gerais, Brazil
Architect in Charge Andreoni Prudencio
Team Bernardo Generosi, Miguel Esnaola, Crislaine Araújo, Geison Borges, Marcel Trescastro, Rodrigo Conceição, Marcela Green, Raquel Smidt, Monique Genari, Priscila Lerias, Renata Zen, Isadora Pedrollo, Úrsula Mello, Karen Grabin, Fernanda Antônio, Juliana Ziebell e Marcelo Della Giustina
Area 16000.0 m2
Project Year 2016
Photographs Marcelo Donadussi
Category Extension
Manufacturers Loading...
