架构师提供的文本描述。外滩金融中心(BundFinancialCentre)是由福斯特合作伙伴和Heatherwick Studio联合设计的一项大型混合用途开发项目，将重振上海的滨水区。这些建筑占据了外滩上的一个突出位置，确定了上海最著名街道的“终点”。这个42万平方米的总体规划非常适合行人使用，其设计被认为是旧城和新金融区之间的连接点。

Text description provided by the architects. The Bund Finance Centre – a major new mixed-use development jointly designed by Foster + Partners and Heatherwick Studio – is set to revitalise Shanghai’s waterfront. Occupying a prominent site on the Bund, the buildings define the 'end point' to Shanghai's most famous street. The 420,000- square metre masterplan is highly permeable for pedestrians, with the design conceived as a point of connection between the old town and the new financial district.

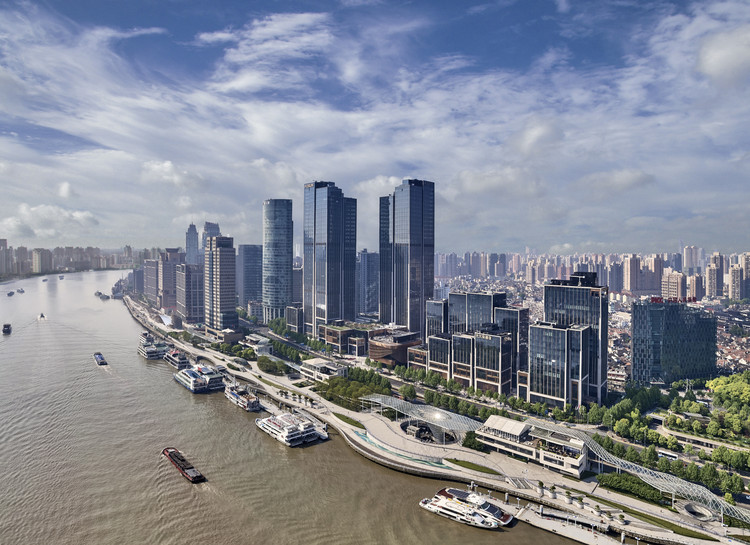

 Courtesy of Foster + Partners + Heatherwick Studio

福斯特合伙人希瑟威克工作室提供

受此城市环境的启发，两座180米高的地标塔被放置在遗址的南面，而面对滨水的建筑物则在高度上参差不齐，在规模和节奏上与外滩19世纪的宏伟地标相关联。该计划的核心是一个灵活的艺术和文化中心，是复星基金会的所在地。复星基金会受中国传统剧院开放舞台的启发，将展览馆和活动厅与表演场地结合起来。

Inspired by this urban context, two 180-metre landmark towers are placed in the south of the site, while the buildings facing the waterfront are staggered in height and relate in scale and rhythm to the grand nineteenth-century landmarks along the Bund. At the heart of the scheme is a flexible arts and cultural centre, home to the Fosun Foundation, which combines exhibition and events halls with a performance venue, inspired by the open stages of traditional Chinese theatres.

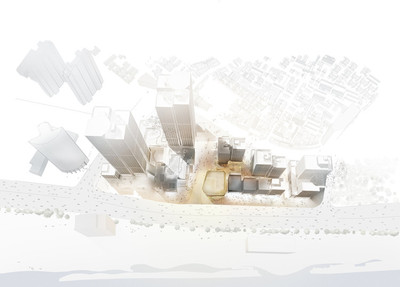

 Masterplan Aerial Perspective

总体规划航空透视

福斯特合伙公司工作室负责人兼高级执行合伙人杰拉德·埃文登评论说：“外滩金融中心在老城区和新金融区之间建立了一种关键的联系。就新旧建筑的背景而言，制订建筑物的集中策略是一个有趣的挑战，反映了滨水区的规模和历史街区的特点。“

Gerard Evenden, Head of Studio and Senior Executive Partner, Foster + Partners commented: “The Bund Finance Centre creates a pivotal connection between the old town and the new financial district. Developing the massing strategy for the buildings was an interesting challenge, in terms of relating to the context of old and new architecture, reflecting the scale of the waterfront and the character of the historic quarters.”

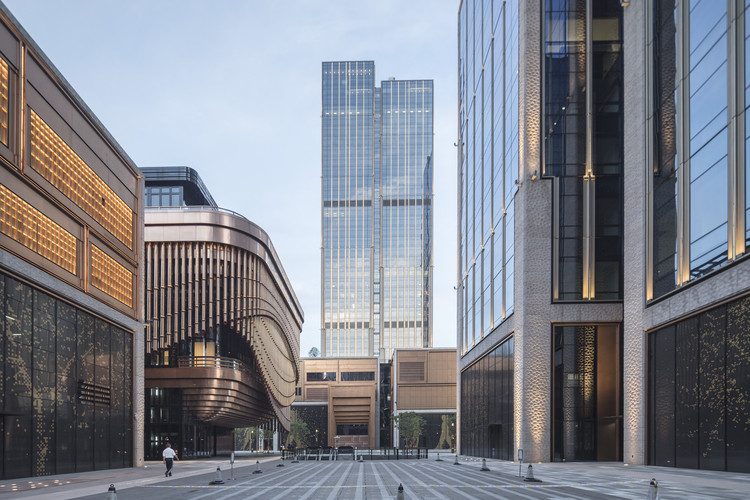

 © Laurian Ghinitoiu

c.Laurian Ghinitoiu

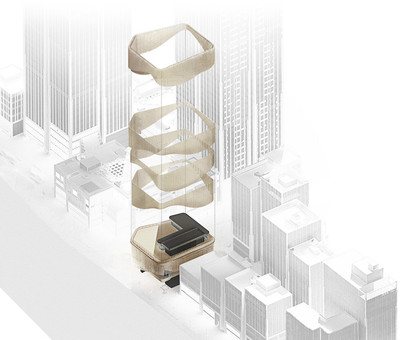

 Fosun Foundation Axonometric

复星基金会轴测

Heatherwick Studio的创始人托马斯·海瑟威克(Thomas Heatherwick)说：“在这个曾经是通往上海旧城的河门的显赫地方，创造新东西的机会是非同寻常的。”通过一个创造了42万平方米空间的项目，我们感到有很大的责任去寻找新的方式来连接中国神奇的建筑遗产，为成千上万的人创造一个有意义的公共空间，让他们工作和聚集在一起。

Thomas Heatherwick, Founder of Heatherwick Studio, said: “The opportunity to make something new in this prominent location that had formerly been the river gateway to Shanghai’s Old Town was extraordinary. With a project that would create 420,000 square metres of space, we felt a great duty to look for fresh ways to connect with China’s amazing built heritage and make a meaningful public place for thousands of people to work and come together.

 © Laurian Ghinitoiu

c.Laurian Ghinitoiu

在外滩现有的历史建筑的物质性和规模的影响下，我们建造了一系列简单的办公、购物和文化建筑，将高性能的玻璃系统与手工雕刻的石雕建筑框架结合起来。这些建筑反过来包围了新的公共空间，并说明了历史外滩建筑的遗产。“

Influenced by the materiality and scale of the existing historic buildings along the Bund we have built a series of simple office, shopping and cultural buildings that combine high performance glazing systems with hand carved stone building frames. These structures in turn surround new public spaces and speak to the heritage of the historical Bund buildings.”

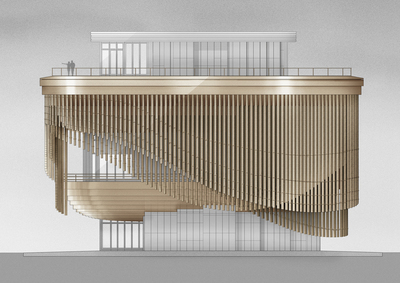

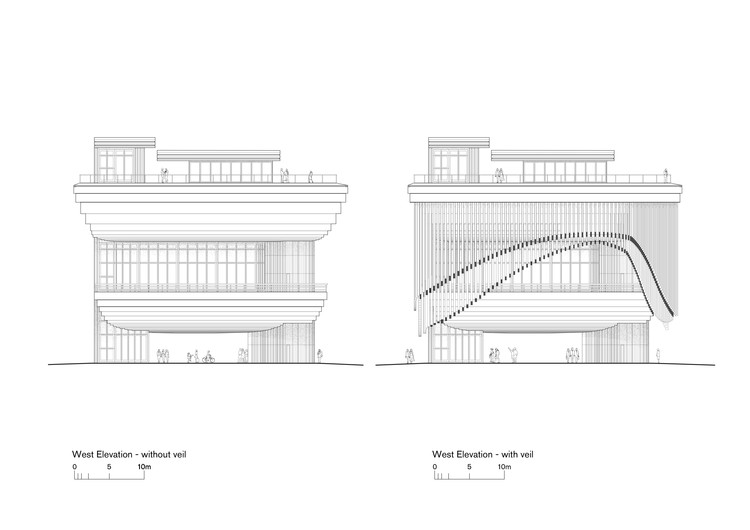

 Fosun Foundation West Elevation

复星基础西高程

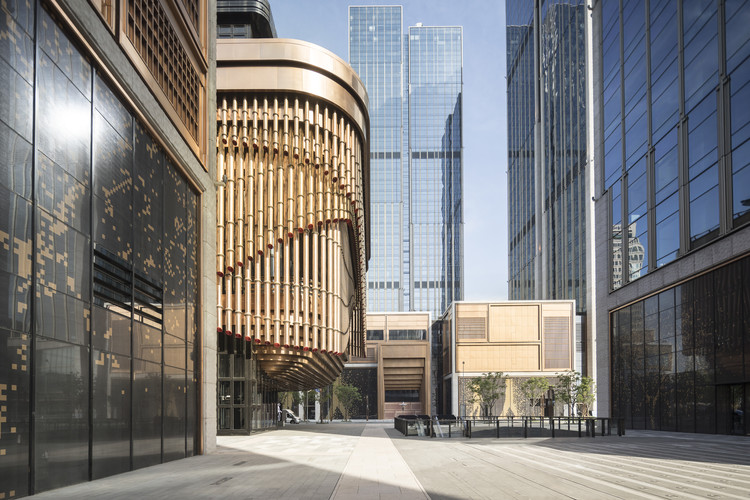

该项目占地42万平方米，由八栋建筑组成，其中包括高档写字楼、精品酒店、文化中心和各种各样的豪华零售空间，所有这些都围绕着一个景观美化的公共广场。零售空间是垂直分层的精品店，概念店为国际品牌，一个豪华购物中心和餐厅。精心制作的石头和青铜细节的调色板给建筑提供了宝石般的质量。每卷的边缘是由丰富的纹理，手工制作的花岗岩和变得更苗条的上升，给人的印象坚实的基础和透明度的顶部。

The 420,000-square-metre development of eight buildings combines premium offices with a boutique hotel, a cultural centre and a wide variety of luxury retail spaces, all arranged around a landscaped public plaza. The retail spaces are vertically layered with boutiques, concept stores for international brands, a luxury shopping mall and restaurants. A palette of crafted stone and bronze details gives the buildings a jewel-like quality. The edges of each volume are made of richly textured, hand-crafted granite and become slimmer as they rise, giving the impression of solidity at the base and transparency at the top.

 © Laurian Ghinitoiu

c.Laurian Ghinitoiu

 © Laurian Ghinitoiu

c.Laurian Ghinitoiu

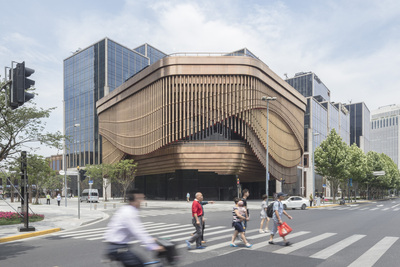

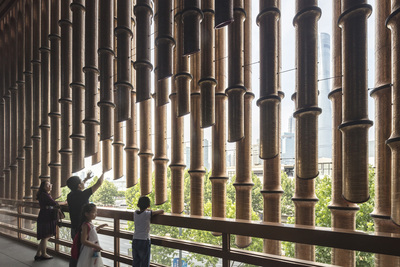

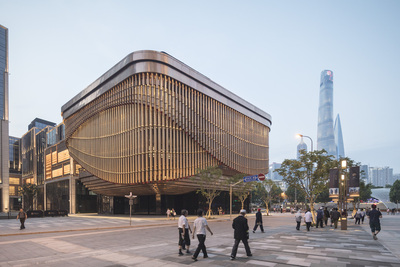

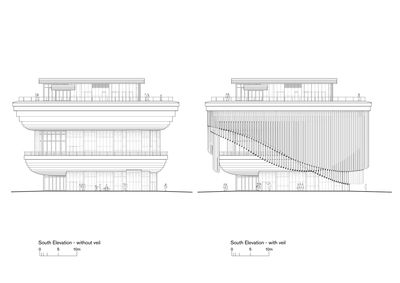

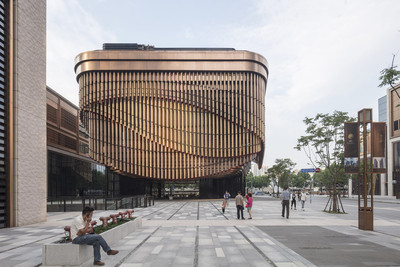

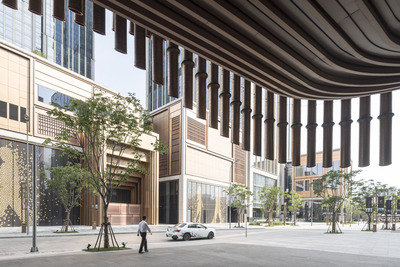

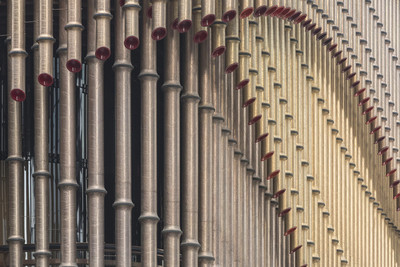

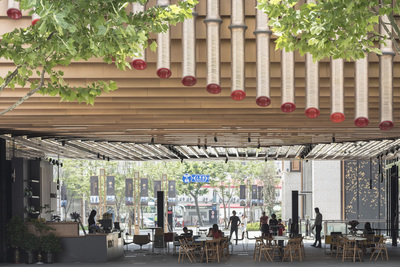

该计划的社会重点是文化中心，它被认为是国际艺术和文化交流的平台，也是品牌活动、产品推出和企业活动的场所。这座建筑被一层移动的面纱所包围，它适应了建筑物不断变化的用途，展示了阳台上的舞台和向浦东方向的景色。与当地工程师同济大学合作开发的FAÇADE是一种沿三条轨道组织的面纱，由675个单独的镁合金“流苏”组成-参照中国传统的新娘头饰。流苏的长度从约2米到16米不等，因此，由于每条轨道独立运动，面纱会随着流苏的重叠而旋转，产生不同的视觉效果和不透明度。

The social focus of the scheme is the cultural centre, conceived as a platform for international arts and cultural exchange, as well as a place for brand events, product launches and corporate functions. The building is encircled by a moving veil, which adapts to the changing use of the building and reveals the stage on the balcony and views towards Pudong. Developed in collaboration with local engineers Tongji University, the façade is a veil organised along three tracks and made up of layers of 675 individual magnesium alloy ‘tassels’ – a reference to the traditional Chinese bridal headdress. The tassels range in length from around 2 metres to 16 metres so that as each track independently moves, the veil rotates with the tassels overlapping and producing different visual effects and levels of opacity.

 © Laurian Ghinitoiu

c.Laurian Ghinitoiu

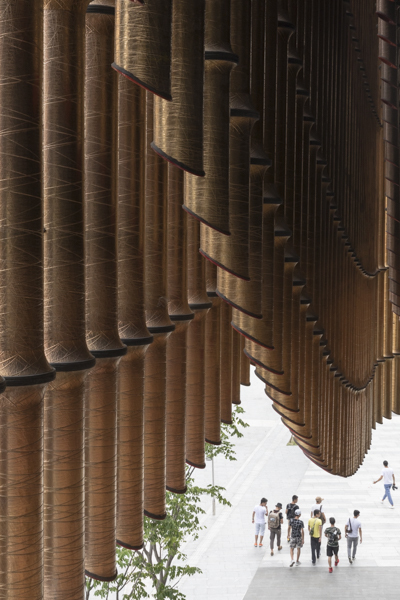

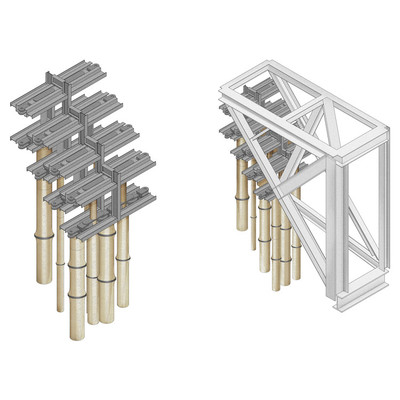

 Fosun Foundation Deatil

复星基金会

“文化中心是工艺和技术的最佳结合。它的灵感来源于中国传统的编织，同时结合了最新的尖端技术，有助于抵御地震、台风和恶劣天气。它独特的形式为游客提供了难忘和非凡的体验，而明亮的舞台和移动面纱的运动为城市生活的剧院创造了一个独特的背景。“

“The cultural centre is an optimum blend of craft and technology. It is inspired by traditional Chinese weaving, while incorporating the latest cutting-edge technology that helps withstand earthquakes, typhoons and severe weather. Its unique form provides a memorable and extraordinary experience for visitors, while the illuminated stage and the motion of the moving veil creates a unique backdrop to the theatre of city life,” added Evenden.

Architects Foster + Partners, Heatherwick Studio

Location Shanghai, China

Area 420000.0 m2

Project Year 2017

Photographs Laurian Ghinitoiu

Category Institutional Buildings

Manufacturers Loading...
