The Street Sanjay Puri Architects

2017-11-16 23:00
 © Dinesh Mehta
迪内什·梅塔
架构师提供的文本描述。从这个项目所在的印度马图拉市的旧城街道上得到启示,这800间学生宿舍创造了有机的空间。
Text description provided by the architects. Taking a cue from the old city streets of Mathura city in India where this project is located, this 800 room students’ hostel creates organic spaces.

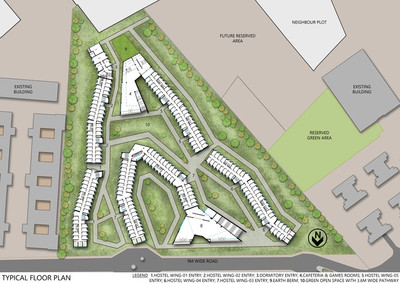

 Typical floor plan


设计在4层高,5直线块,建造的空间蜿蜒穿过一个楔形场地扭曲和转弯沿他们的长度。坐落在东西部的重复招待所街区附近,这些新招待所位于一个大的大学校园内,在布局的每个部分都创造了一个可以识别的独立空间。
Designed in 4 level high, 5 linear blocks, the built spaces snake across a wedge shaped site twisting and turning along their length. Sitting adjacent to repetitive hostel blocks on the east and west these new hostels within a large university campus create individual spaces within a discernible identity in each part of the layout.
 © Dinesh Mehta
迪内什·梅塔
所有建筑物的定位都是在向北形成一个大的北向花园区域,向北俯瞰一个巨大的游乐场。此外,每间招待所的房间都有一扇楔形的海湾窗户,面向北面和操场。
The orientation of all the buildings are done with a view of generating large north facing garden areas overlooking a vast playground towards the north. In addition, each hostel room is punctuated with a wedge shaped bay window oriented towards the north and the playground.
 Section / Elevation
剖面/高程
每间宿舍在内部走廊设有通风孔,方便交叉通风。线性建筑在每个弯曲点创造了小的突破空间,允许自然光进入内部循环空间。
Each hostel room has ventilation openings in the internal corridor facilitating cross ventilation. The linear buildings create small break out spaces at each bending point allowing natural light into the internal circulation spaces.
 © Dinesh Mehta
迪内什·梅塔
这些因素创造了一个节能建筑,最大限度地减少了对气候的热量增加,当太阳在南半球时,每年的平均温度超过300摄氏度,持续8个月。在冬季的几个月里,太阳在北半球,直接的阳光被促进,以防止房间变冷。
These factors create an energy efficient building minimizing heat gain in response to the climate which has average temperature in excess of 300 c for 8 months of the year when the sun is in the Southern Hemisphere. During the winter months when the sun is in the Northern Hemisphere, direct sunlight is facilitated to prevent the rooms from becoming cold.

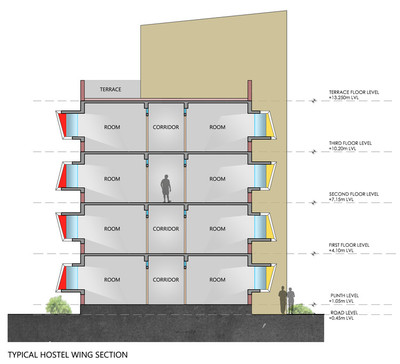

 Typical Section


在直线建筑的末端创建了两个重点区域,以容纳餐厅、游戏室和体育馆,向北向花园和露台开放。每个公共空间都是大容量的,有20英尺高的天花板。
Two focal areas are created at the ends of the linear buildings to house cafeterias, games rooms and gymnasium opening into the north facing gardens and terraces. Each of the public spaces are large volumes with 20’ high ceilings.
 © Dinesh Mehta
迪内什·梅塔
建筑物的有机布局是场地内每个空间的特征。颜色强调不同的块和方便内部。每个街区都有不同的颜色,与旅馆的海湾窗户的内部表面的明亮颜色,以创造一个身份。
The organic layout of the buildings characterizes each space within the site. Color accentuates different blocks and facilitates within. Each block is differently colored along with the internal face of the bay windows of the hostel in bright colors to create an identity.
 © Dinesh Mehta
迪内什·梅塔
雨水收集、水的循环利用和太阳能电池板的使用,还使该项目更节能,并有利于自然通风。
Rain water harvesting and water recycling and usage of solar panels additionally make the project more energy efficient along with the orientation and facilitation of natural ventilation.
这条街与气候和场地的方向相关联,从而创造了不同的体验,改变了6英亩土地的每一部分的空间观念。
The Street is contextual to the climate and the orientation of the site thus creating varied experiences and changing perceptions of space in each part of the 6acre site.
 © Dinesh Mehta
迪内什·梅塔



























Architects Sanjay Puri Architects
Location Mathura, Uttar Pradesh, India
Architects in Charge Sanjay Puri, Ishveen Bhasin
Area 211000.0 ft2
Project Year 2017
Photographs Dinesh Mehta
Category Housing
Manufacturers Loading...
