ENSAE PARISTECH Campus Paris
2018-01-17 03:00
© Aldo Amoretti
阿尔多·阿莫雷蒂
架构师提供的文本描述。当我们发现广阔的天空和没有物理约束的高原时,我们试图用一种简单的形式和抽象的建筑语言来捕捉景观。这一地点靠近林地边缘,这使我们直观地找到了主要材料,因为在这个国家一侧的场地上,似乎有必要将建筑物轻轻地放在地面上。为了达到这个目的,我们选择了用钢外骨骼来定义这个项目。

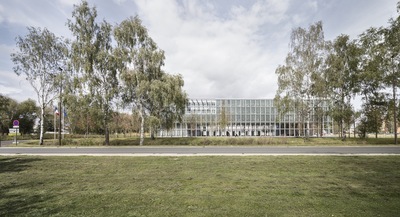

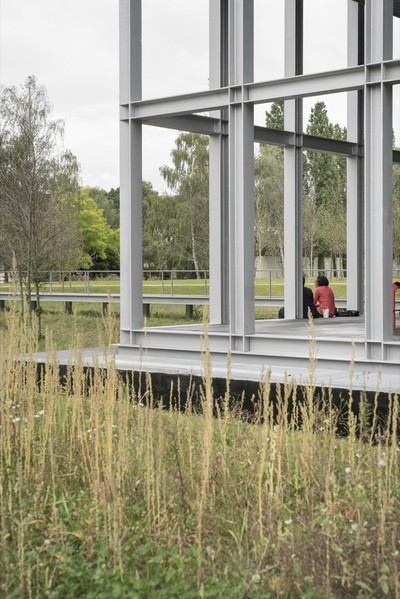

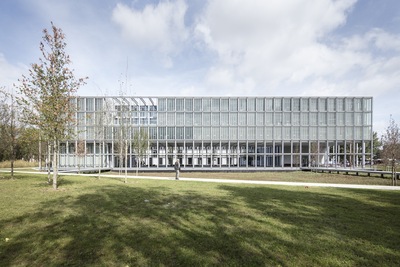

Text description provided by the architects. When we discovered the immense sky and the plateau devoid of physical constraints we sought to capture the landscape by a simple form and by an abstract architectural language. The proximity of the site to the edge of the woodland led us intuitively to the primary material as it seemed necessary in this country-side site to place the building lightly on the ground. To achieve this we chose to define the project by a steel exoskeleton.
© Aldo Amoretti
阿尔多·阿莫雷蒂
South Section
南科
© Aldo Amoretti
阿尔多·阿莫雷蒂

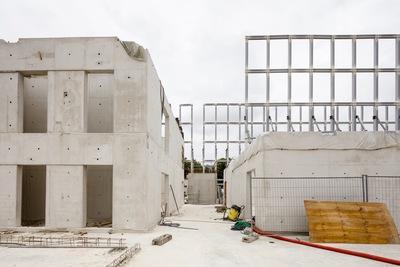

在一个80x80平方米的广场内,建筑是开放的,欢迎的和城市的,但借用一个修道院的语言,创造一个亲密的内部景观。由24x24厘米横梁组成的3.05m×2.10m的网格将整个工程编织在一起,并勾勒出建筑的轮廓。由于没有中间支点,跨度为15米的钢结构梁将一个立面与另一个立面连接起来。它们通过15x15厘米的钢连接器连接到外部结构,减小了尺寸以限制它们的冲击。

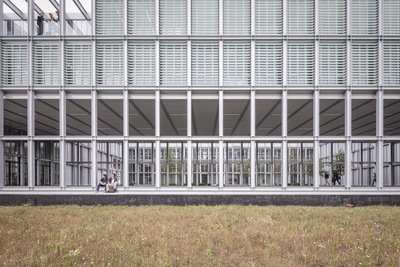

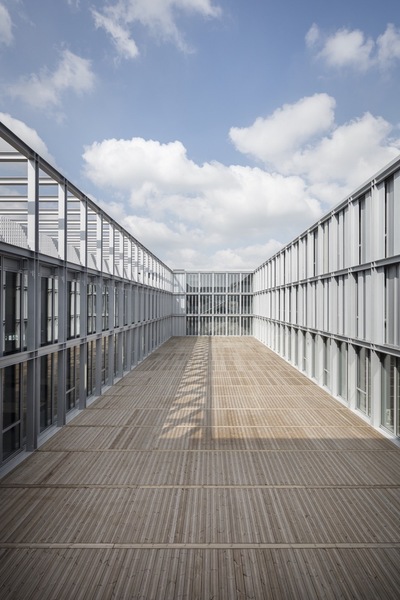

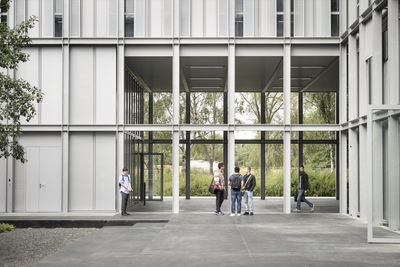

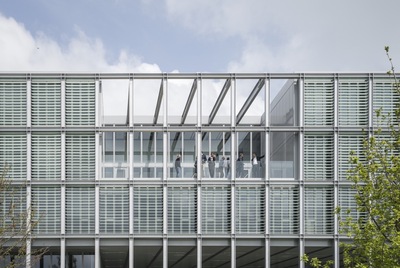

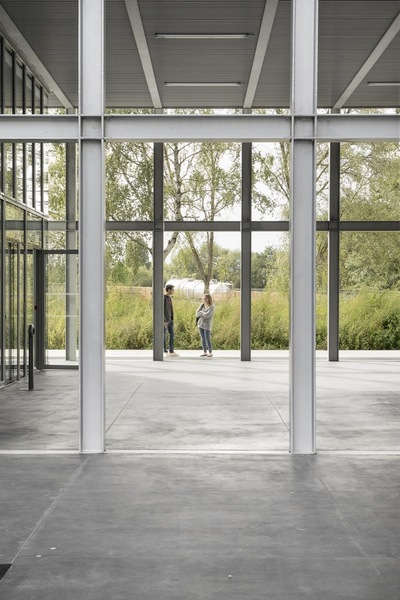

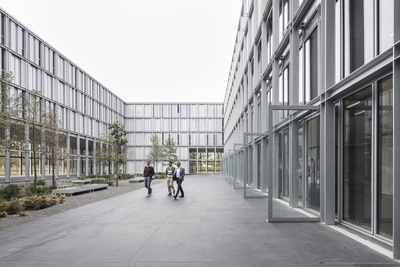

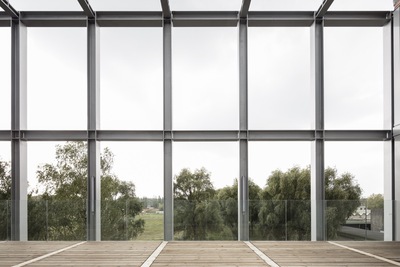

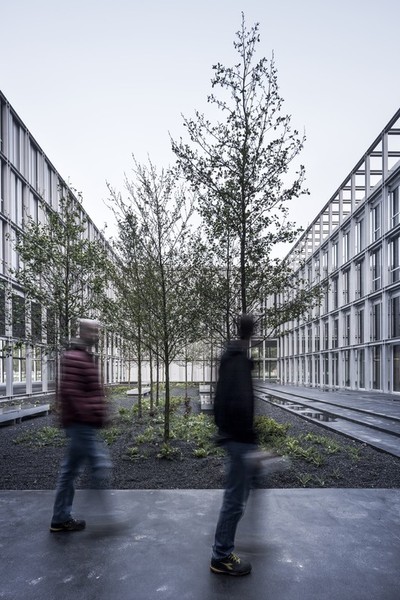

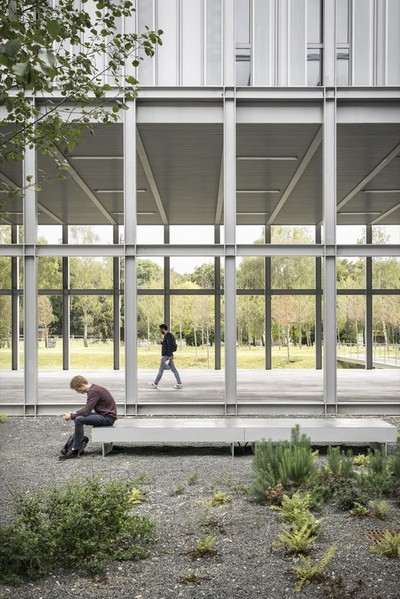

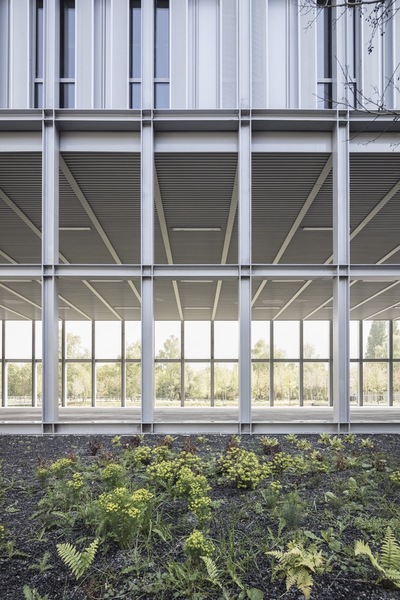

Inscribed within an 80 x 80-metre square, the building is both open, welcoming and urban, yet borrows from the language of a cloister to create an intimacy of an interior landscape. The grid of 3.05m x 2.10m sections made of 24x24 cm H-Beams weave together the entire project and outline the architecture. With no intermediate support points, steel structural beams with a span of 15 metres link one facade to the other. They are connected to the exostructure by steel connectors of 15x15cm, reduced in size to limit their impact.
© Aldo Amoretti
阿尔多·阿莫雷蒂
Axonometric
© Aldo Amoretti
阿尔多·阿莫雷蒂

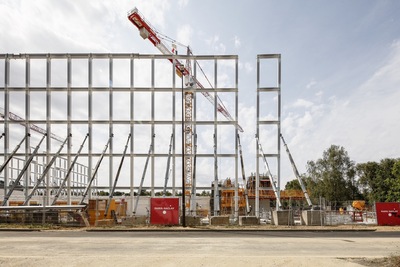

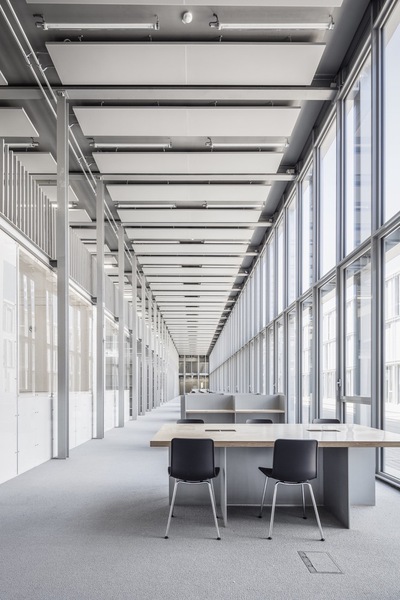

结构网格就像一个巨大的Meccano装置。在建筑内部,结构仍然是可见的,如果需要的话,结构的表达决定了规则和意义。“.我不再把神庙的概念和它的熏陶…分开了”保罗·瓦莱里。

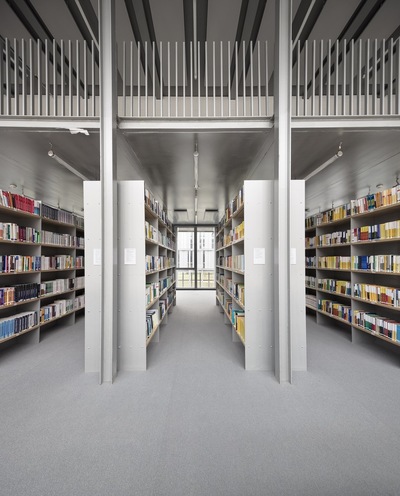

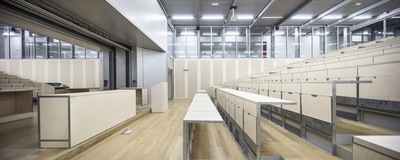

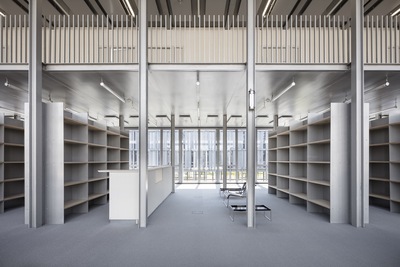

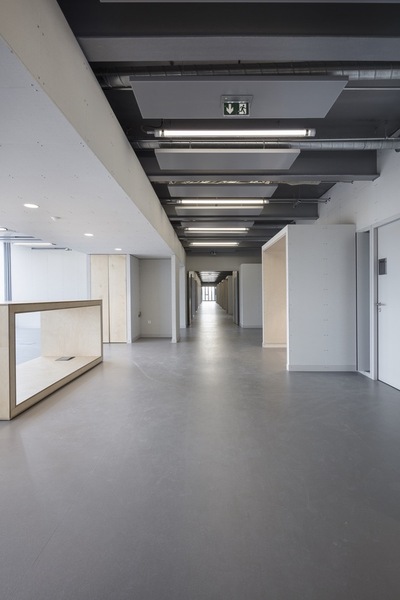

The structural grid is mounted like a giant Meccano set. Inside the building the structure remains visible, recalling if needed, that the expression of the construction sets both the rule and the meaning. "... I no longer separate the idea of the temple from that of its edification …" Eupalinos Paul Va
© Aldo Amoretti
阿尔多·阿莫雷蒂
Architects CAB Architectes
Location Route de Saclay, 91128 Palaiseau, France
Project Director Christophe Wilke
Project Leader Cécile Jalby
Area 15400.0 m2
Project Year 2017
Photographs Aldo Amoretti, Olivier Rigal
Category Higher Education
