Boarding House for an Agricultural School Technical University of Berlin CODE Chair Construction + Design

2018-02-08 16:00

 © CODE + Johannes Belz

编号：Johannes Belz

Bella Vista农学校园：玻利维亚一所农业学校的寄宿所/设计和实现设计任务是为最近成立的农学院系开发一个农学校园，作为玻利维亚贝拉维斯塔现有职业学校“Sayarinapaj”的一部分。在第一阶段，40名学生在Pasel教授和他的团队的指导下，在跨学科合作伙伴的协作下设计和建造了一座学校建筑，必须为大约75名学生提供一个支持他们农业学习的学习环境。它被授予2017年种子奖和海因策奖。校园扩建工作最近完成，建造了一所寄宿学校，由小组设计和建造。其目标是开发建筑，不仅要根据当地建筑传统和生产方法满足突出的建筑要求，而且要在能源消耗以及水和废物管理方面起到榜样作用。

Agronomy Campus Bella Vista: boarding house for an agricultural school in Bolivia / design and realization The design task was to develop an agronomy campus for the department of the recently founded agronomy faculty being part of the existing vocational school “Sayarinapaj” in Bella Vista, Bolivia. In the first phase 40 students under the direction of Prof. Pasel and his team designed and built in collaboration of interdisciplinary partners a school building, which has to serve approximately 75 students as a supportive learning environment for their agricultural studies. It was awarded with the SEED Award 2017 and the Heinze Awards. The extension of the campus was recently completed by the construction of a boarding school, equally designed and built by the team. The objective was to develop buildings that would not only meet the outstanding architectural requirements based on the incorporation of local building traditions and production methods, but that would also serve as a role model in terms of energy consumption, as well as water and waste management.

 © CODE + Johannes Belz

编号：Johannes Belz

 Axonometric

 © CODE + Johannes Belz

编号：Johannes Belz

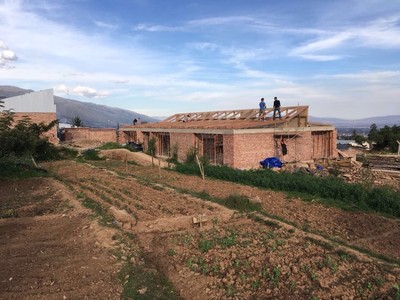

宿舍是培训中心校园内的第二个建设阶段。这座新建筑在功能上补充了运营学校的功能。他有学生宿舍、讲师室、厨房、餐饮、阅读、娱乐室以及独立的设施。本阶段的技术要求与复杂的空间分配方案相适应，符合高舒适性要求。因此，学生必须与建筑行业以及与内部、建筑服务和环境有关的行业一起工作。前几周安排了各种讲习班、调查和实地考察，以鼓励柏林杜联学生和现场学员进行知识交流。与此同时，正在购买优秀的技术设备，培训中心的工作室正在专门为该项目安装，现场正在接受检查。与工地上的一个女劳工小组合作，组成了三名五人工作人员，负责开发立面、建筑服务(电气装置/卫生设施)、屋顶的完工和周围环境的设计。由7至8人组成的一个较大的小组负责室内设计和建筑，如家具和木门。

The boarding house constitutes the second construction phase within the campus of the training center. The new building complements functionally the operating school i.a. with his dormitory for the students, a lecturer room, a kitchen, a dining-, reading-, recreation-room as well as its independent facilities. The technical requirements in this phase are correspondent to the complex space allocation plan and in line with the high comfort requirements. Consequently, the students have to work with trades concerning construction as well as trades concerning the interior, the building services and the surroundings. The first few weeks various workshops, surveys and field trips are scheduled in order to encourage an intellectual exchange among the students of the TU Berlin and the participants on site. During the same time the outstanding technical equipment is being purchased, the studios of the training center are being installed specifically for the project, the site is being inspected. Collaborating with a female labour group on site three five-man-crews are formed for developing the facades, the building services (electrical installations/ sanitary installations), the completion of the roof and the design of the surroundings. A larger group consisting of a seven to eight-man-crew is engaged with the interior design and construction such as furniture and wooden doors.

 © CODE + Johannes Belz

编号：Johannes Belz

建筑以简单而有效的方式应对极端的气候条件。块状砖砌体补偿了每天温度的波动，从而提供了舒适的室内气候。通风屋顶结构防止房间过热。它的定位确保充足的日光供应在房间和屋顶的最佳倾斜，以整合太阳系。

With simple but effective means the building responds to the extreme climatic conditions. The massive brick masonry compensates the daily fluctuation of temperature, thus allowing for a comfortable indoor climate. The ventilated roof construction prevents the rooms from overheating. Its orientation ensures adequate supply of daylight in the rooms and the optimal declination of the roof for the integration of the solar system.

 Sections 1 + 2

部分( section的名词复数 ) 1   2

由于该项目是基于一种综合的建筑方法，相关因素包括建筑产品和其创造的多层过程，考虑到技术、社会、文化和学术方面。由来自德国和玻利维亚的专家、学生和工匠/-妇女进行国际和跨学科合作，因此，学术和实践之间、两种文化之间和不同学科之间的知识相互转让是该项目的一个突出特点。

As the project is based on an integrative approach to architecture the relevant factors include both the architectural product and the multi-layered process of its creation considering technical, social, cultural and academic aspects. Being developed by an international and interdisciplinary collaboration of experts, students and craftsmen/-women from both Germany and Bolivia the mutual transfer of knowledge between academia and practice, between the two cultures and between the different disciplines is consequently one of the superior characteristics of the project.

 © CODE + Johannes Belz

编号：Johannes Belz

在建筑方面，总体任务是创建一座低成本、节能、对气候敏感和节约资源的建筑，作为一个支持性学习环境，并作为低技术环境、创新和智能低成本建筑方法中可持续建筑发展的案例研究。这包括建筑物的设计方式，它可以在“自动建造”的前提下建造，而“自动建筑”占当地建筑活动的98%。

In terms of the architecture the overall task was to create a low-cost and energy efficient, climate responsive and resource saving building that would serve as a supportive learning environment and as a case study for sustainable building developments in low-tech environments, innovation and intelligent low-cost construction methods. This includes that the building was designed in a way that it could be constructed under the preconditions of “auto-construction”, which forms 98% of the local building activities.

 © CODE + Johannes Belz

编号：Johannes Belz

Architects Technical University of Berlin / CODE Chair Construction + Design - Ralf Pasel

Location Av. Santa Cruz, Quillacollo, Bolivia

Architects in Charge Ralf Pasel, Andreas Skambas, Lorena Valdivia, Anna Wortmann

Design Team Arch. Students of Tech. University of Berlin; Jasmin Auda, Sabrina Baschinski, Johannes Belz, Larsen Berg, Svenja Binz, Magdalena Böttcher, Antonia Breckwoldt, Ammon Budde, Vera Burkhardt, Almar de Ruiter, Anja Dotter, Oskar Ellwanger, Simon Finzel, Ellinor Förster, Carolin Friedrich, Paulina Hagen, Olga Herrenbrück, Lisa van Heyden, Anne Hommerich, Tom Jones, Detlev Kerkow, Felizitas Konrad, Bastian Landgraf, Jonathan Lewkowicz, Juri Lux, Annalena Morra, Canan Öztekin, Eyal Michael Perez, Tessa Poth, Charlotte Reh, Benjamin C. Schaad, Hong Mai Tran, Paul Walter, Karol Wojtas, Xiao Xiao.
