© Shinkenchiku Sha

(三)沙田新干线

架构师提供的文本描述。在这所房子里-为一个三口之家设计的住宅，以及他们的许多财产-客户要求家庭成员能够感到彼此之间的亲近，无论他们在哪里。此外，私人房间并不需要，因为他们觉得进入自己的空间是孤独的，储存空间也是没有必要的，因为他们不想把东西收起来。由于试图找到一种形式，使整个房子感觉像一个房间，同时为他们的物品确保足够的空间，我们提出了一个设计，连接地板的高度差异为700毫米，在不同的水平可以用作桌子和货架。地板形成两个螺旋形状，在客厅连接，然后再分成两层，然后到达屋顶甲板。通过使用两个螺旋的组合，我们能够在房子内创建多条路径，允许不同的房间间隔和循环中的变化，使房子能够适应客户生活方式的变化。

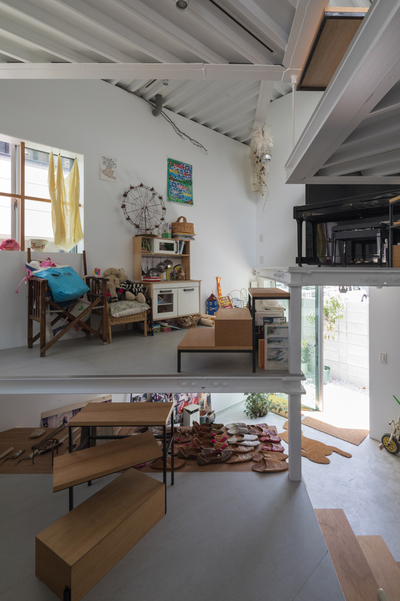

Text description provided by the architects. At this house - a residence designed for a family of three and their many belongings - the client requested that the members of the family can feel close to each other regardless of where they are in the house. Moreover, private rooms were not needed because they feel that it is lonely to withdraw into one's space, and storage space was also unnecessary because they did not want to tuck things away. As a result of trying to find a form that allows the whole house to feel like one room while securing sufficient space for their belongings at the same time, we proposed a design to connect the flooring with a height difference of 700 mm, where the different levels can be used as tables and shelves. The floors build up as two spiral shapes, joins at the living room, and then separate into two again before arriving at the rooftop deck. By using this combination of two spirals, we were able to create multiple paths inside the house that allows different room compartments and changes in the circulation, equipping the house to be able to accommodate changes in the lifestyle of the client.

 © Shinkenchiku Sha

(三)沙田新干线

 Perspective

 © Shinkenchiku Sha

(三)沙田新干线

由于车站附近的老木屋被出售，周围的国旗形状的场地都是停车场和公寓，预计不久的将来还会有更多的高楼大厦建成。假设只有屋顶才能得到良好的阳光照射，就可以插入一个矩形的盒子形的空间，有平屋顶和三角形的露台，窗户的放置均匀，对结构的干扰最小，以使房屋能够适应环境的变化。由于这座房子位于防火区，它的设计采用了一个天花板高度为6900毫米的钢框架，其中13层的地面浮起，顶部7层不同的水平由屋顶梁上的20毫米钢棒悬挂，底部6层由75毫米方钢管支撑。通过重复简单的自治系统构建的空间结构类似于一个“回声室”，它放大了客户最内心的生活方式，传达了无限扩展的敏感性。

The surrounding of the flag-shaped site as a result of the selling of the old wooden house near the station, are parking lots and apartments, and it is expected that there will be more tall buildings built in the near future. Assuming that the only outdoor area that receives good sunlight is the roof, a rectangular box-shaped volume with the flat roof and triangular terraces are inserted, the windows are placed uniformly with the least interference with the structure to allow the house to be able to accommodate changes in the environment. Due to the fact that the house is located in a fire prevention district, it is designed with a steel framework with a ceiling height of 6,900 mm, where 13 floors surface float, with the top seven different levels suspended with 20 mm steel rods from the roof beam, with the bottom six floors supported by 75 mm square steel pipes. The spatial structure that is constructed by repeating a simple autonomous system is similar to an "echo chamber", which amplifies the innermost lifestyle of the client and conveys a sensitivity that expands without limit.

 © Shinkenchiku Sha

(三)沙田新干线

客户已经住在附近的地区，慢慢地搬进了房子。自从他们正式开始住在这里，这里的事物、建筑和人们就像一个整体，他们的生活方式的丰富景色正在扩大，就好像他们在森林里移动一样。从现在开始，我们期待着看到房子的东西，居民和建筑之间的关系随着时间的推移而安定下来。

The client has lived in the area nearby and slowly moved into the house. Since they started officially living here, the things, the architecture and people has became one like an ensemble, and the rich scenery of their lifestyle is expanding as if they are moving inside a forest. From now on, we look forward to seeing house the things, the residents and architecture settle down in relation to each other through time.

 © Shinkenchiku Sha

(三)沙田新干线

Architects Tato Architects

Location Osaka, Japan

Design Yo Shimada

Team Yo Shimada, Nobuhiko Sato, Koji Hoshiyasu

Area 50.0 m2

Project Year 2017

Photographs Shinkenchiku Sha

Category Houses
