客户Wilfrid Laurier大学工程师-结构性VanBoxmee

Client Wilfrid Laurier University Engineer - Structural VanBoxmeer & Stranges Engineering Ltd. Engineer - Mechanical Smith + Andersen Engineer - Electrical Smith + Andersen Engineer - Civil MTE Consultants Inc. Landscape DTAH Interiors Diamond Schmitt Architects Contractor Bondfield Construction Company Limited LEED and Sustainable Design WSP (formerly MMM / Enermodal) Acoustics Aercoustics Theatre Theatre Consultants Collaborative Audio Visual Engineering Harmonics Code LMDG Specification Brian Ballantyne Specifications More Specs Less Specs

 © doublespace photography

双空间摄影

架构师提供的文本描述。LazaridisHall是位于安大略省滑铁卢的WilfridLaurier大学商业和经济学院的新家。该大楼还设有数学系和创业和社会创新中心。

Text description provided by the architects. Lazaridis Hall is the new home of the School of Business and Economics at Wilfrid Laurier University in Waterloo, Ontario. The building also houses the Department of Mathematics and a center for entrepreneurship and social innovation.

设计简介旨在建造一座高度可持续的建筑，并支持具有管理和经济技能的学术和社区领袖的发展，以适应复杂和不断变化的全球环境。

The design brief was to craft a highly sustainable building and to support the development of academic and community leaders with management and economics skills for a complex and changing global environment.

 East-West Section

东西科

设计反应是一个灵活的设施，服务于各种功能，包括学术课程交付，教职员工和行政办公室，聚会和同行学习领域服务于整个校园，一个多用途礼堂和一个季节性的会议议程。为了满足该地区日益增长的技术焦点的需求-滑铁卢是加拿大技术三角的核心-这座建筑是促进大学和社区之间合作研究的最先进的孵化器。

The design response is a flexible facility that serves a variety of functions, including academic program delivery, faculty and administration offices, gathering and peer learning areas to serve the entire campus, a multi-purpose auditorium and a seasonal conference agenda. To satisfy the demands of the growing technology focus in the region – Waterloo is the heart of Canada’s technology triangle – the building serves as a state-of-the-art incubator to promote collaborative research between the university and community.

这座建筑被设计成一个地标，以创造身份，并标志着一个新的校园分局的扩展。曲线木内衬的体积定义了大空间，在建筑物的两端，并破坏了严格的分层正交外观。这些都得到了进一步的强调，在1000座椭圆形礼堂上方的巨大悬臂空间，并将300个座位的演讲厅定位在一个双层鼓中，这个鼓似乎“浮”在一间玻璃围封的咖啡厅之上。

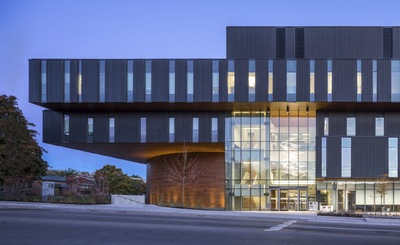

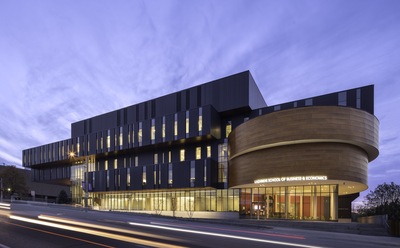

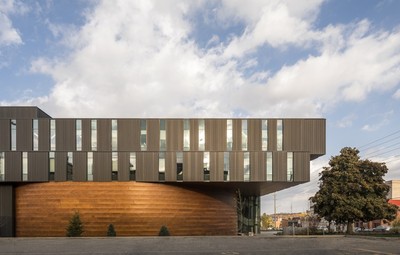

The building is designed as a landmark to create identity and to signal expansion of a new campus precinct. Curvilinear wood-lined volumes define large spaces at either end of the building and disrupt the rigor of the stratified orthogonal façade. These are given further emphasis by the significant cantilevered space above the 1000-seat elliptical auditorium and positioning the 300-seat lecture hall in a double-stacked drum that appears to ‘float’ above a glass-encased café.

这些动作表达了一种毫不费力的简单性，掩盖了这种钢和混凝土混合建筑的潜在复杂性。炭灰锌板的切分进一步推进了这座大型建筑的体积解构，以适应社区环境。这些考虑允许一个充分表达，多功能的设计，以实现客户的许多目标.

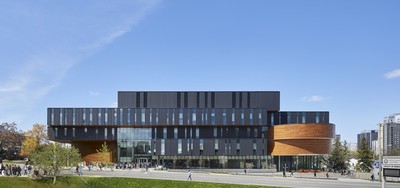

These moves express an effortless simplicity that belie the underlying complexity of this hybrid steel and concrete building. A syncopation of charcoal grey zinc panels furthers the volumetric deconstruction of this large building to contextually fit into the community. These considerations allow for a fully expressive, multi-featured design to achieve the client’s many objectives.

 © doublespace photography

双空间摄影

机织到现场地形是一个连续的地面平面连接外部和内部与坡道，楼梯和座垫。建筑形状、材料和调色板的延续进一步支持了这一诱人和无缝的过渡。在中心是一个巨大的木衬中庭，一个十字路口周围的慷慨和多样的空间立即显现。这个公共广场沐浴在一个起伏自由的天窗下的自然光下，加强了透明度和连通性的主题，创造了一个吸引人的空间来收集和学习。

Woven into the site topography is a continuous ground plane linking the exterior and interior with ramps, stairs and seating plinths. A continuation of building shape, materials and palette further supports this inviting and seamless transition. At the center is a large wood-lined atrium, a crossroads around which a generosity and variety of spaces are immediately apparent. This public square is bathed in natural light beneath an undulating freeform skylight that reinforces themes of transparency and connectivity to create an engaging space in which to gather and learn.

 © doublespace photography

双空间摄影

非正式的书房、休息室和休息室分布在各个层次的中庭周围，旨在促进那种支持同侪学习与协作的非正式交流。一系列教育环境包括积极学习教室，以支持新的教学。一个混合的学术办公室(240)和教室在整个创建邻接，旨在打破筒仓和便利相遇。宽敞的走廊，可移动的家具和角落，进一步增加了互动的机会。

Informal study lounge space and breakout rooms interspersed around the atrium on all levels are designed to facilitate the sort of informal exchange that supports peer learning and collaboration. A range of educational settings includes active learning classrooms to support new pedagogies. A mix of academic offices (240) and classrooms throughout create adjacencies designed to break down silos and facilitate encounter. Expansive hallways with moveable furnishings and nooks further enhance the opportunity for interaction.

 © Tom Arban

(汤姆·阿班)

巨大的140英尺x 70英尺高的结构玻璃和钢制的自由天窗在拉扎里迪斯大厅中心的中庭创造了一个充满光线的空间。这种高效的，轻量级的结构包含一个起伏的建筑暴露三角钢框架，允许最低限度的定制，支持经济，预制，易于安装和一个优雅的设计解决方案。天窗被校准，以最大限度的天空景观，通过使用40%的表面炸裂和高性能低e涂层，一个舒适的内部实现没有眩光或太阳增益。从设计到施工，这一特点是通过建筑信息建模(BIM)来实现的，整个建筑也是如此。

The large 140ft x 70ft structural glass and steel freeform skylight creates a light-infused space in the atrium at the heart of Lazaridis Hall. This efficient, lightweight structure contains an undulating architecturally exposed triangulated steel frame that allowed for minimal customization, supporting economy, prefabrication, ease of installation and an elegant design solution. The skylight is calibrated to maximize sky views and through the use of 40 percent surface fritting and high-performance low-e coatings, a comfortable interior is achieved without glare or solar gain. From design through construction, this feature was realized through Building Information Modelling (BIM), as was the entire building.

 © doublespace photography

双空间摄影

拉扎里迪斯大厅重新设计了这个内向的校园，使街景活跃起来，创造了一个新的城市和形象。这座建筑将校园与主校区之间的物理隔阂与一层全玻璃的底层连接起来，传达了一种开放和无障碍的感觉。

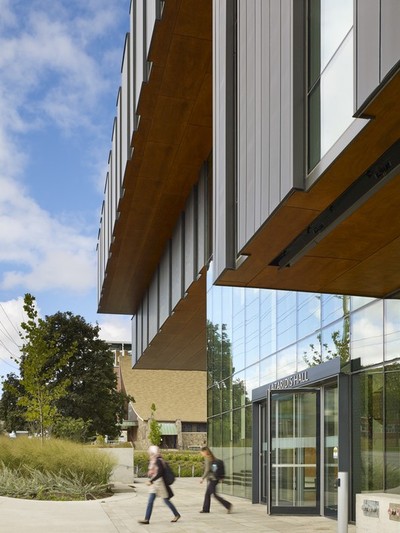

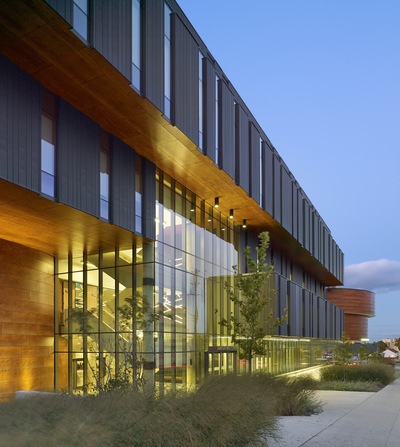

Lazaridis Hall reframes this inward-looking campus and enlivens the streetscape to create a new urbanity and profile. The building bridges the physical divide from the main campus with a fully glazed ground floor that conveys a sense of openness and accessibility.

该建筑的目标是LEED黄金和2030年挑战，通过全面和完全集成的系统，使其成为大规模可持续设计的典范。

The building targets LEED Gold and the 2030 Challenge through comprehensive and fully integrated systems that make this an exemplar of sustainable design on a large scale.

Architects Diamond Schmitt Architects

Location 64 University Avenue West, Lazaridis Hall 4001, Waterloo, ON N2L 3C7, Canada

Lead Architects Steven Bondar, Bryan Chartier, Tura Cousins-Wilson, David Dow, Andrea Gaus, Branka Gazibara, Mehdi Ghiyaei, Vincent Goetz, Jim Graves, Amy Greenwood, Jeff Jang, Michael Jess, Brian Kao, Lilly Kraljevic, Nelson Lai, Matthew Lella, Catherine Lin, Wen-Ying Lu, Marcin Ludwik Sztaba, Daniel Malka, Thom Pratt, Andreea Scarlat, Donald Schmitt, Jessica Shifman, Birgit Siber, Michael Waring, Gary Watson, Haley Zhou

Associate Architect David Thompson Architect Ltd.

Area 226000.0 ft2

Project Year 2017

Photographs doublespace photography, Tom Arban

Category University
